rotary union

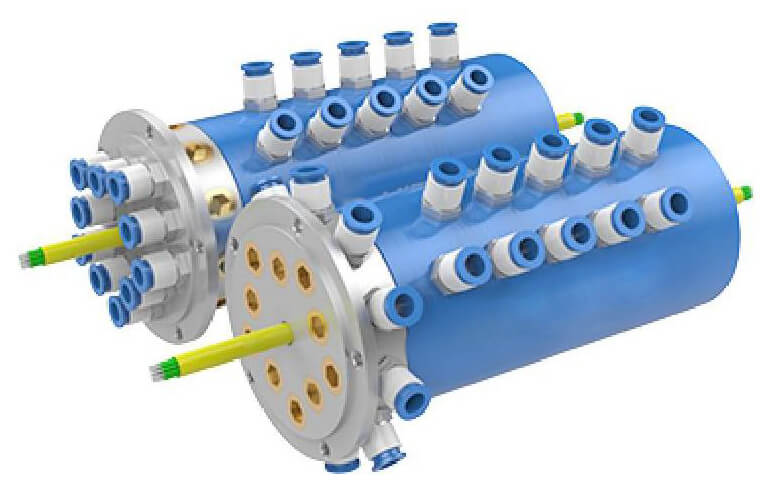

10 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical DataMechanical Data
Rated VoltagePower: 0~440 VAC/VDC
Signal: 0~240 VAC/VDC		Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC		Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise＜0.01ΩProtection GradeIP51

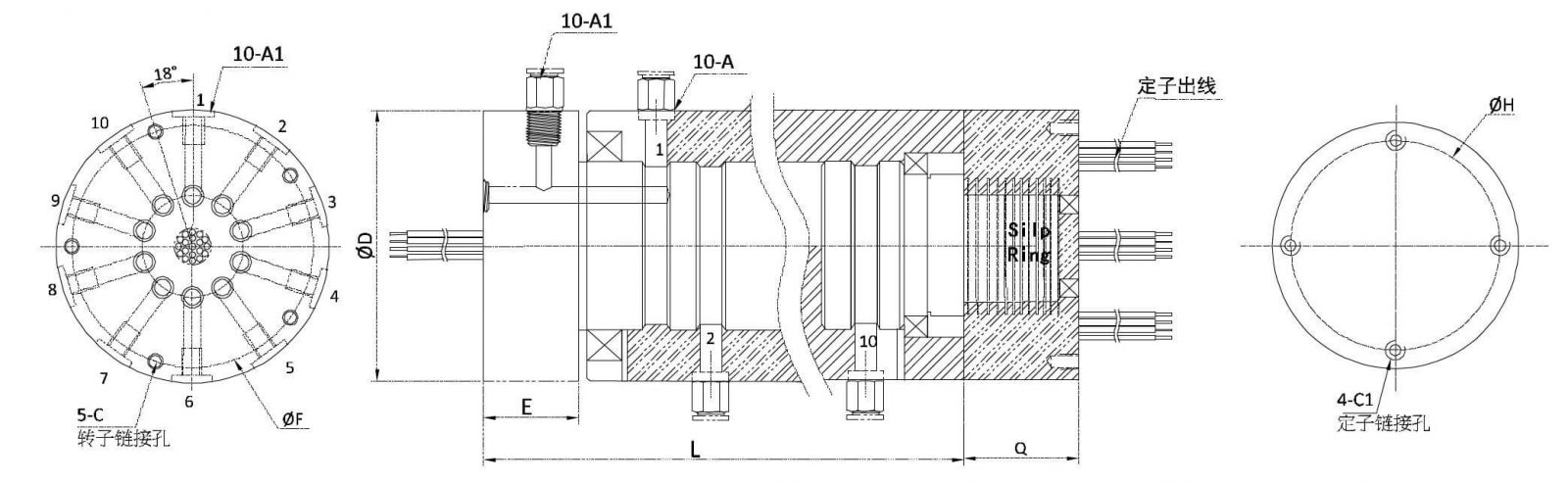

ModelAA1CC1DEFHLQCircuitsCurrent
MPHD10M5-S0605M5M5M6M6641554541463665A
MPHD10M5-S01205M5M5M6M66415545414666125A
MPHD10M5-S01802M5M5M6M66415545414666182A
MPHD10M5-S02402M5M5M6M66415545414666242A
MPHD10M5-S03602M5M5M6M66415545414671362A
MPHD10M5-S05602M5M5M6M66415545414691562A
MPHD10M5-S01805M5M5M6M66415545414693185A
MPHD10M5-S02405M5M5M6M664155454146110245A
MPHD10M5-S03005M5M5M6M664155454146127305A
MPHD10M5-S03605M5M5M6M664155454146147365A
MPHD10M5-S04205M5M5M6M664155454146167425A
MPHD10M5-S04805M5M5M6M664155454146182485A
MPHD10M5-S06005M5M5M6M664155454146227605A
MPHD1018-S0605G1/8G1/8M6M6692059591763665A
MPHD1018-S01205G1/8G1/8M6M66920595917666125A
MPHD1018-S01802G1/8G1/8M6M66920595917666182A
MPHD1018-S02402G1/8G1/8M6M66920595917666242A
MPHD1018-S03602G1/8G1/8M6M66920595917671362A
MPHD1018-S05602G1/8G1/8M6M66920595917691562A
MPHD1018-S01805G1/8G1/8M6M66920595917693185A
MPHD1018-S02405G1/8G1/8M6M669205959176110245A
MPHD1018-S03005G1/8G1/8M6M669205959176127305A
MPHD1018-S03605G1/8G1/8M6M669205959176147365A
MPHD1018-S04205G1/8G1/8M6M669205959176167425A
MPHD1018-S04805G1/8G1/8M6M669205959176182485A
MPHD1018-S06005G1/8G1/8M6M669205959176227605A
MPHD1014-S0605G1/4G1/4M6M6892779792143665A
MPHD1014-S01205G1/4G1/4M6M68927797921466125A
MPHD1014-S01802G1/4G1/4M6M68927797921466182A
MPHD1014-S02402G1/4G1/4M6M68927797921466242A
MPHD1014-S03602G1/4G1/4M6M68927797921471362A
MPHD1014-S05602G1/4G1/4M6M68927797921491562A
MPHD1014-S01805G1/4G1/4M6M68927797921493185A
MPHD1014-S02405G1/4G1/4M6M689277979214110245A
MPHD1014-S03005G1/4G1/4M6M689277979214135305A
MPHD1014-S03605G1/4G1/4M6M689277979214155365A
MPHD1014-S04205G1/4G1/4M6M689277979214174425A
MPHD1014-S04805G1/4G1/4M6M689277979214193485A
MPHD1014-S06005G1/4G1/4M6M689277979214233605A
MPHD1038-S0605G3/8G3/8M6M6993089892393665A
MPHD1038-S01205G3/8G3/8M6M69930898923966125A
MPHD1038-S01802G3/8G3/8M6M69930898923966185A
MPHD1038-S02402G3/8G3/8M6M69930898923966242A
MPHD1038-S03602G3/8G3/8M6M69930898923966362A
MPHD1038-S05602G3/8G3/8M6M69930898923991562A
MPHD1038-S01805G3/8G3/8M6M69930898923999185A
MPHD1038-S02405G3/8G3/8M6M699308989239119245A
MPHD1038-S03005G3/8G3/8M6M699308989239135305A
MPHD1038-S03605G3/8G3/8M6M699308989239155365A
MPHD1038-S04205G3/8G3/8M6M699308989239170425A
MPHD1038-S04805G3/8G3/8M6M699308989239188485A
MPHD1038-S06005G3/8G3/8M6M699308989239209605A

Lead Wires Color Code

Ring#123456789101112
ColorREDYELBLKBLUGRNWHTPUPGRYBRNORNDBLUYEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
