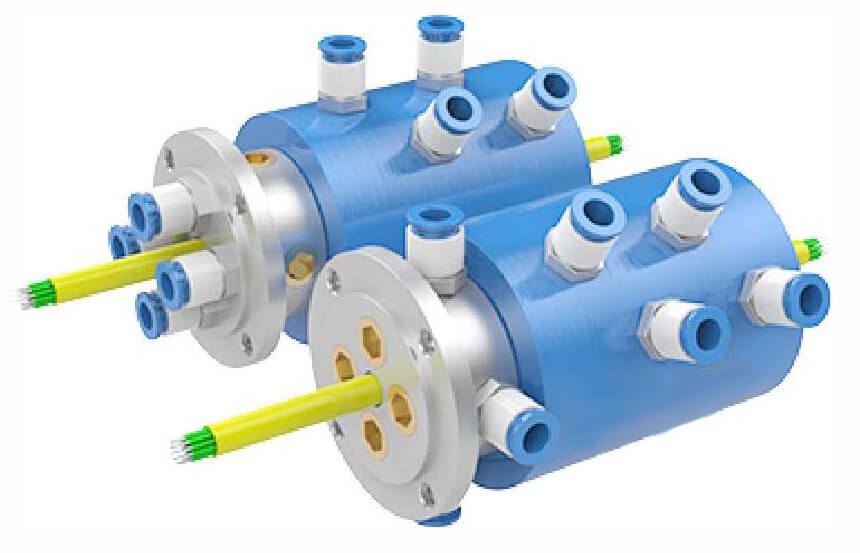

4 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical Data Mechanical Data
Rated VoltagePower: 0~240 VAC/VDC
Signal: 0~440 VAC/VDC
Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC
Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise<0.01ΩProtection GradeIP51

ModelAA1A2BCC1DD1EFHLL1L2QCircuitsCurrent
MPHD4M5-S0605M5M5M517M5M55454354545857183665A
MPHD4M5-S01205M5M5M517M5M559593950508571866125A
MPHD4M5-S01802M5M5M517M5M559593950508571866182A
MPHD4M5-S02402M5M5M517M5M559593950508571866242A
MPHD4M5-S03602M5M5M517M5M559593950508571871362A
MPHD4M5-S05602M5M5M522M5M559593950508571891562A
MPHD4M5-S01805M5M5M523M5M559593950508571893185A
MPHD4M5-S02405M5M5M523M5M5595939505085718110245A
MPHD4M5-S03005M5M5M523M5M5595939505085718127305A
MPHD4M5-S03605M5M5M523M5M5595939505085718147365A
MPHD4M5-S04205M5M5M523M5M5595939505085718167425A
MPHD4M5-S04805M5M5M523M5M5595939505085718182485A
MPHD4M5-S06005M5M5M523M5M5595939505085718227605A
MPHD418-S0605G1/8G1/8G1/825M5M564644355551087293665A
MPHD418-S01205G1/8G1/8G1/822M5M5646443555510872966125A
MPHD418-S01802G1/8G1/8G1/822M5M5646443555510872966182A
MPHD418-S02402G1/8G1/8G1/822M5M5646443555510872966242A
MPHD418-S03602G1/8G1/8G1/826M5M5646443555510872971362A
MPHD418-S05602G1/8G1/8G1/826M5M5646443555510872992562A
MPHD418-S01805G1/8G1/8G1/831M5M5696949606010872995185A
MPHD418-S02405G1/8G1/8G1/831M5M56969496060108729112245A
MPHD418-S03005G1/8G1/8G1/831M5M56969496060108729130305A
MPHD418-S03605G1/8G1/8G1/831M5M56969496060108729150365A
MPHD418-S04205G1/8G1/8G1/831M5M56969496060108729168425A
MPHD418-S04805G1/8G1/8G1/831M5M56969496060108729183485A
MPHD418-S06005G1/8G1/8G1/831M5M56969496060108729223605A
MPHD414-S0605G1/4G1/4G1/428M6M674745364641179343665A
MPHD414-S01205G1/4G1/4G1/428M6M6747453646411793466125A
MPHD414-S01802G1/4G1/4G1/428M6M6747453646411793466182A
MPHD414-S02402G1/4G1/4G1/428M6M6747453646411793466242A
MPHD414-S03602G1/4G1/4G1/428M6M6747453646411793466362A
MPHD414-S05602G1/4G1/4G1/432M6M6747453646411793497562A
MPHD414-S01805G1/4G1/4G1/432M6M6747453646411793499185A
MPHD414-S02405G1/4G1/4G1/432M6M67474536464117934117245A
MPHD414-S03005G1/4G1/4G1/432M6M67474536464117934135305A
MPHD414-S03605G1/4G1/4G1/432M6M67474536464117934155365A
MPHD414-S04205G1/4G1/4G1/432M6M67474536464117934175425A
MPHD414-S04805G1/4G1/4G1/432M6M67474536464117934190485A
MPHD414-S06005G1/4G1/4G1/432M6M67474536464117934230605A
MPHD438-S0605G3/8G3/8G3/832M6M689896979791539393565A
MPHD438-S01205G3/8G3/8G3/832M6M6898969797915393964125A
MPHD438-S01802G3/8G3/8G3/832M6M6898969797915393964182A
MPHD438-S02402G3/8G3/8G3/832M6M6898969797915393964242A
MPHD438-S03602G3/8G3/8G3/832M6M6898969797915393970362A
MPHD438-S05602G3/8G3/8G3/832M6M6898969797915393995562A
MPHD438-S01805G3/8G3/8G3/837M6M69494748484153939100185A
MPHD438-S02405G3/8G3/8G3/837M6M69494748484153939117245A
MPHD438-S03005G3/8G3/8G3/837M6M69494748484153939135305A
MPHD438-S03605G3/8G3/8G3/837M6M69494748484153939158365A
MPHD438-S04205G3/8G3/8G3/837M6M69494748484153939174425A
MPHD438-S04805G3/8G3/8G3/837M6M69494748484153939193485A
MPHD438-S06005G3/8G3/8G3/837M6M69494748484153939233605A
MPHD412-S0605G1/2G1/2G1/237M6M694947484841539393765A
MPHD412-S01205G1/2G1/2G1/237M6M6949474848415393966125A
MPHD412-S01802G1/2G1/2G1/237M6M6949474849415393966182A
MPHD412-S02402G1/2G1/2G1/237M6M6949474848415393966242A
MPHD412-S03602G1/2G1/2G1/237M6M6949474849415393966362A
MPHD412-S05602G1/2G1/2G1/237M6M6949474848415393966562A
MPHD412-S01805G1/2G1/2G1/242M6M6999978898915393999185A
MPHD412-S02405G1/2G1/2G1/242M6M69999788989153939119245A
MPHD412-S03005G1/2G1/2G1/242M6M69999788989153939135305A
MPHD412-S03605G1/2G1/2G1/242M6M69999788989153939155365A
MPHD412-S04205G1/2G1/2G1/242M6M69999788989153939170425A
MPHD412-S03605G1/2G1/2G1/242M6M69999788989153939188485A
MPHD412-S04205G1/2G1/2G1/242M6M69999788989153939209605A

Lead Wires Color Code

Ring# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU YEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
