Description
| Technical Ratings | |||
|---|---|---|---|
| Max. Speed | Max. Pressure | Temperature | Media |
| 300r/min | 30 Mpa | -30℃~+80℃ | Oil, Air or Similar |

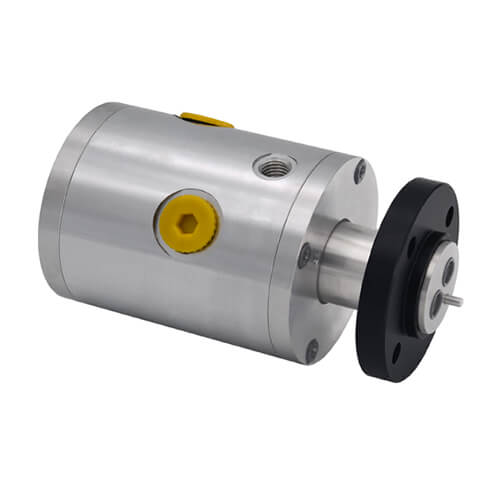

MH Series Hydraulic Rotary Joints Notes
1. Operation under extreme ratings should be avoided. Maximal working speed is in reverse proportion to working pressure and is also influenced by the media lubricity and the heat dissipation ability of the sealing components. When the rotation speed is lower than 10RPM, the maximal pressure can be up to 30Mpa.
2. Inner leakage is allowed between each passage. Please pay attention to the compatibility of different working media to avoid cross-contamination.
3. The working fluid or hydraulic media should be filtered before being used. The filtration precision should be no lower than 10um.
4. A drainage hole is accompanied for observation and collection of escaping media.
5. For other applications, please consult AIKE SEALING beforehand.
| Model | I | K | A | B | C | M | D | P | E | F | G | V | J | W | H | Y | L | Q | n-X | N-X' | Max.Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MH01015 | 1xG1/2" | 40 | 126 | 78 | 13 | / | 2-M8 | 58 | 5 | 40 | 83.5 | / | 10 | 60 | 80 | / | Rc1/8" | 95 | 4-Φ9 | 4-M8 | 190 |
| MH01020 | 1xG3/4" | 45 | 133 | 83 | 16 | / | 2-M8 | 59 | 5 | 40 | 88 | / | 12 | 65 | 85 | / | Rc1/8" | 102 | 4-Φ9 | 4-M8 | 160 |
| MH01025 | 1xG1" | 45 | 143 | 90 | 22 | / | 2-M12 | 64 | 5 | 40 | 95 | / | 12 | 65 | 85 | / | Rc1/8" | 110 | 4-Φ9 | 4-M8 | 150 |
| MH01032 | 1xG1-1/4" | 55 | 162 | 108 | 30 | / | 2-M12 | 65 | 6 | 46 | 105 | / | 14 | 80 | 110 | / | Rc1/8" | 126 | 4-Φ9 | 4-M8 | 110 |
| MH02008 | 2xG1/4" | 45 | 143 | 83 | 6 | 14 | 2-M8 | 58 | 5 | 39 | 82 | 21.2 | 12 | 65 | 85 | 12 | Rc1/8" | 113 | 4-Φ9 | 4-M8 | 160 |
| MH02010 | 2xG3/8" | 45 | 153 | 90 | 9 | 15 | 2-M12 | 65 | 5 | 41 | 88.5 | 23 | 12 | 65 | 85 | 12 | Rc1/8" | 125 | 4-Φ9 | 4-M8 | 150 |
| MH02015 | 2xG1/2" | 55 | 176 | 108 | 12 | 20 | 2-M12 | 70 | 6 | 46 | 96.5 | 30 | 14 | 80 | 110 | 12 | Rc1/8" | 144 | 4-Φ9 | 4-M8 | 110 |
| MH02020 | 2xG3/4" | 70 | 226 | 155 | 16 | 30 | 2-M12 | 100 | 5 | 54 | 125 | 36 | 16 | 100 | 125 | 25 | Rc1/8" | 180 | 6-Φ14 | 6-M12 | 95 |
| MH03008 | 3xG1/4" | 45 | 164 | 83 | 6 | 14 | 2-M8 | 58 | 5 | 39 | 82 | 21 | 12 | 65 | 85 | 12 | Rc1/8" | 140 | 4-Φ9 | 4-M8 | 160 |
| MH03010 | 3xG3/8" | 45 | 175 | 90 | 9 | 20 | 2-M12 | 65 | 5 | 41 | 89 | 23 | 12 | 65 | 85 | 12 | Rc1/8" | 150 | 4-Φ9 | 4-M8 | 150 |
| MH03015 | 3xG1/2" | 60 | 206 | 106 | 12 | 20 | 2-M12 | 70 | 6 | 46 | 96.5 | 30 | 14 | 90 | 120 | 18 | Rc1/8" | 170 | 4-Φ9 | 4-M8 | 110 |
| MH04006 | 4xG1/8" | 45 | 176 | 90 | 6 | 18 | 2-M12 | 64 | 5 | 40 | 84 | 18 | 12 | 65 | 85 | 15 | Rc1/8" | 145 | 4-Φ9 | 4-M8 | 150 |
| MH04008 | 4xG1/4" | 45 | 176 | 90 | 6 | 18 | 2-M12 | 64 | 5 | 40 | 84 | 18 | 12 | 65 | 85 | 15 | Rc1/8" | 145 | 4-Φ9 | 4-M8 | 150 |
| MH04010 | 4xG3/8" | 60 | 220 | 108 | 9 | 22 | 2-M12 | 70 | 6 | 46 | 95 | 26 | 14 | 90 | 120 | 20 | Rc1/8" | 190 | 4-Φ9 | 4-M8 | 110 |
| MH04015 | 4xG1/2" | 75 | 244 | 115 | 12 | 29 | 2-M12 | 74 | 6 | 47 | 103 | 30 | 16 | 110 | 130 | 25 | Rc1/8" | 210 | 4-Φ9 | 4-M8 | 95 |
Note: Max. Speed=10Mpa Pressure max speed (r/min)
