MP Series Pneumatic/Hydraulic Rotary Joints

◆ Multichannel mechanical sealing structure suitable for high-speed rotating application also

◆ Double imported ball bearing for high stability

◆ Multi-spring design efficient spring compensation

◆ Balanced mechanical sealing structure for prolonged service life

◆ Drainage hole design for wearing and leakage observation

Description

Technical Ratings
Max Speed	3000r/min
Temperature	-30℃~+120℃
Media	Air or Water, Max. Pressure 1.1 Mpa
Media	Hydraulic Oil, Max. Pressure 7 Mpa

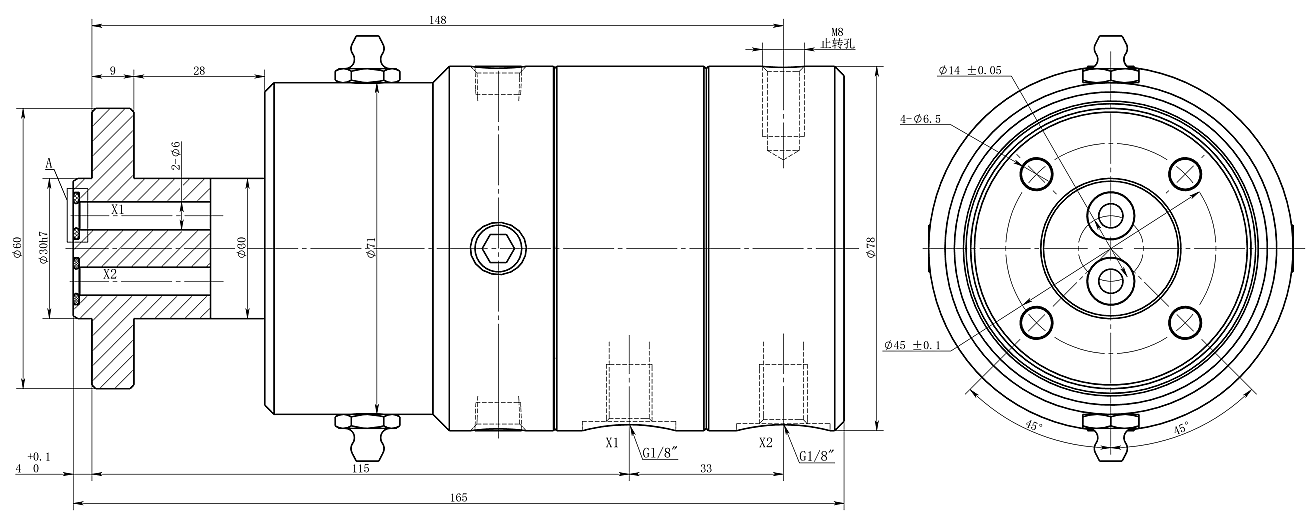

MPARFA006A Rotary Joints

MPARFA008A Rotary JointsCustomer’s Shaft End

MPBRFA008A Rotary Joints

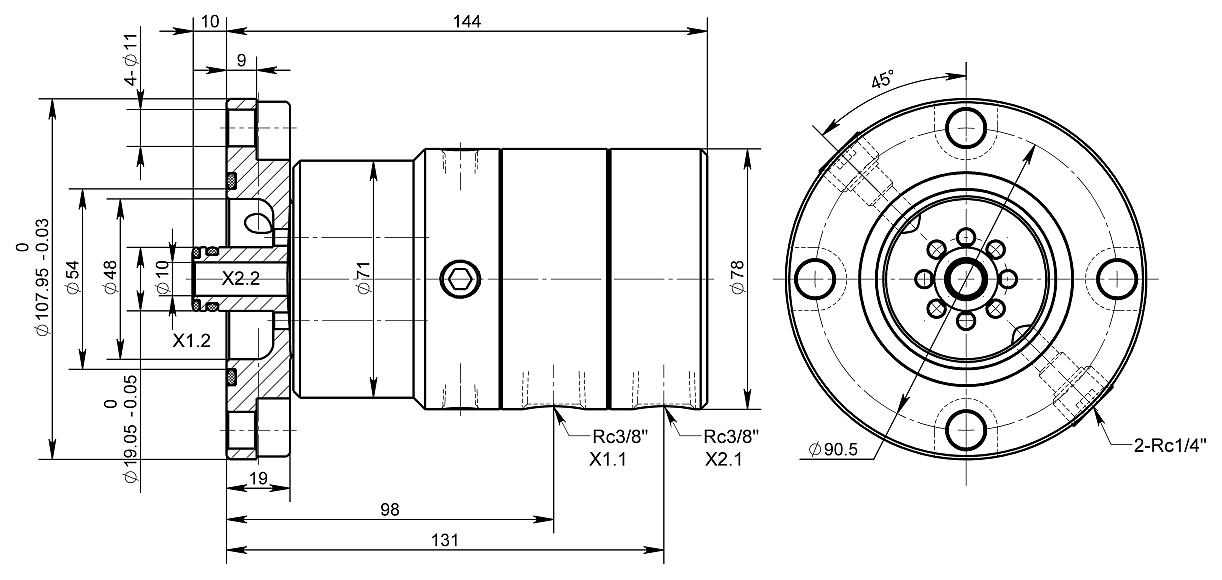

MPARFA010A Rotary Joints Customer’s shaft End

MPARFA015A Rotary Joints

MPARFA025A Rotary Joints

MP03ARFA025A Rotary Joints

MP03ARFA025A -N1000 Rotary Joints
