large volume series slip rings

In order to unlock the mechanics of complex systems like windmills, radar systems, or rotating medical scanners, it is crucial to understand the small components that make those systems possible. Among these is an ingenious mechanism known as the large volume series slip ring.

So, what exactly is a large volume series slip ring? A slip ring is a device that allows electricity or electrical signals to be transmitted from a stationary to a rotating structure. More specifically, a large volume series slip ring is designed to manage and transmit large amounts of data and power effectively. These aren’t your typical slip rings – they work silently in the background of various machines and devices, allowing them to function smoothly and efficiently.

The purpose of this guide is to delve into the detailed working of large volume series slip rings, their structure, purchase considerations, the importance of correct installation and regular maintenance, and the latest advancements in the field. Our goal is to create a resource that provides a comprehensive understanding of these critical components, which are integral to the operation of a wide range of devices and systems. By the end of the guide, you should have a solid understanding of large-volume series slip rings and their crucial role in facilitating the seamless operation of many systems that we rely upon in our daily lives.

Basics of Large Volume Series Slip Rings

To fully appreciate the significance of large volume series slip rings, it’s crucial to understand their structure and functioning capabilities. Essentially, a slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure.

A large volume series slip ring, in particular, is designed to handle massive amounts of data and electricity. Its central component is a rotating interface, usually a metal ring. Fixed onto this ring are various ‘brushes’ or contact points that glide over the ring’s surface as it spins. These brushes take power or signals from a stationary structure and transfer them to the rotating part of the device. The key feature that sets large volume series slip rings apart is their enhanced capacity for transferring large volumes of power and data.

Understanding when and why large volume series slip rings are used requires us to explore different application areas. In the renewable energy sector, for instance, slip rings can be found in wind turbines, which require high volume data transmission to monitor and control turbine operations. In the medical field, CT scanners use large volume series slip rings to transmit power and signals while the scanning apparatus rotates around the patient. Similarly, in telecommunications and satellite technology, these slip rings bridge the communication gap between rotating and stationary parts.

The need to transfer large volumes of power and data seamlessly and reliably between rotating and stationary parts is common across various industry sectors. Large volume series slip rings, with their advanced design and capacity, fit the bill perfectly, ensuring stable, continuous, and efficient operations. The diverse and versatile applications of these components underscore their utility and importance in our fast-paced, technologically advanced world.

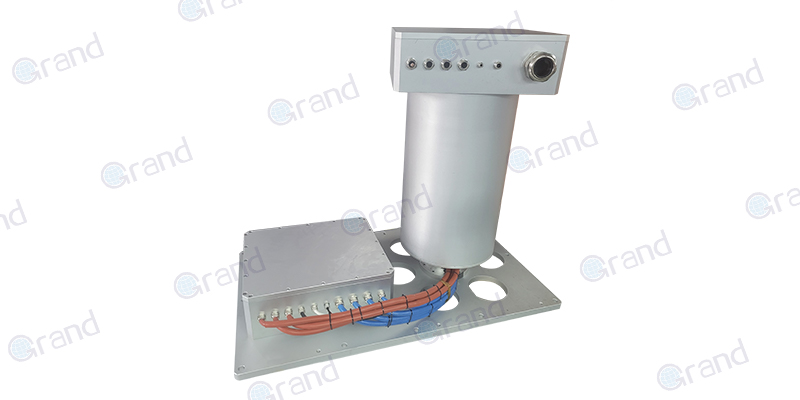

large volume series slip ring

Key Features of Large Volume Series Slip Rings

When examining large volume series slip rings, it is essential to understand the specific characteristics that set them apart from other slip rings. These key differences are crucial to their efficacy in various applications where high volume data transmission and power transfer are critical.

Enhanced Capacity for Data and Power Transmission

One of the most distinguishable features of large volume series slip rings is their ability to handle and transmit large amounts of data and power. Compared to standard slip rings, these devices are designed with advanced engineering techniques and technologies to enable seamless and efficient communication between rotating and stationary structures.

Flexible Configuration Options

Large volume series slip rings exhibit a wide array of configuration options, providing users with unparalleled flexibility in meeting specific requirements. Thanks to these customizable interfaces, these slip rings can address a diverse range of industry demands, making them highly valuable across numerous sectors.

High Signal Quality and Integration

A vital aspect of large volume series slip rings is their ability to maintain high signal quality. They achieve this through advanced signal processing technologies, which minimize signal loss or distortion during transmission. Moreover, these slip rings offer seamless signal integration, effectively combining power, ground, and signal transmission processes to address complex applications, particularly in systems that require quick-transit data.

Reliability and Durability

Large volume series slip rings are built with an emphasis on performance and stability, further establishing their importance in various industries. They are manufactured using high-quality materials and precision engineering, ensuring not only longevity but also the seamless operation of the systems they are integrated into. Reliability and durability are crucial attributes, as these devices often function in environments with heavy workloads and harsh conditions.

In summary, large volume series slip rings differentiate themselves from other slip rings through their sizable data and power transmission capabilities, flexible configuration options, high signal quality and integration, and reliability. These key features make these slip rings stand out and contribute to making them the go-to choice for numerous industries with data and power-intensive requirements.

Purchase Considerations for Large Volume Series Slip Rings

Selecting the right large volume slip ring is crucial to the efficiency and success of a system. Several factors come into play when purchasing these advanced components. Users ought to consider these important aspects carefully to ensure smooth and optimum operation.

Compatibility with Existing Systems

Large volume slip rings must be fully compatible with the systems they operate within. In assessing compatibility, buyers must evaluate factors like the type and volume of signals to be transmitted, as well as the environmental conditions the slip ring will be exposed to. Understanding these specific requirements enables users to identify a slip ring that suits their system seamlessly.

Volume and Type of Data Transmission

The effectiveness of a large volume slip ring is heavily influenced by the type and volume of data it can transmit. To ensure that the slip ring can handle the required level of transmission, one must assess the data and power requirements of the system in which it will be integrated. This includes evaluating the number of circuits, current, and voltage ratings, as well as any specific signal types (e.g., digital, analog, high-frequency).

Environmental Conditions

Large volume slip rings operate in varying environments, often exposed to elements like temperature fluctuations, humidity, dust, and moisture. It’s crucial to consider these environmental factors when purchasing slip rings, as they directly impact the device’s performance and durability. Opting for a slip ring designed to handle these conditions ensures uninterrupted operation and longevity.

Cost Efficiency

Finding a balance between cost and quality is critical. While it may be tempting to opt for a lower-priced slip ring, budget options may not provide the level of reliability and performance required for successful operation. Alternatively, a highly-priced slip ring may offer multiple features, but it’s essential to ensure that these features are relevant to the system in question.

Lifespan and Supplier Reliability

Evaluating the expected lifespan of a slip ring is vital, as it helps gauge the long-term value of the investment. Reliable slip rings typically offer lower maintenance costs and minimal downtime, further contributing to cost efficiency. Similarly, a trusted supplier brings the assurance of quality products, technical support, and prompt after-sales service, making the relationship a cornerstone of the purchase decision.

By considering these crucial factors – compatibility with existing systems, the volume and type of data transmission, environmental conditions, cost efficiency, and the slip ring’s lifespan and supplier reliability – users can make well-informed decisions in selecting the most suitable large volume series slip ring for their application.

Installation Process of Large Volume Series Slip Rings

Proper installation of large volume series slip rings is crucial to ensure their optimal functioning and longevity. While the installation process can vary slightly depending on the specific slip ring model, some general steps and considerations apply to most variants.

  • Safety Measures: Start with safe operational measures. Always shut down and isolate the device from power sources during the installation. Also, ensure you have the correct personal protective equipment (PPE) to safeguard against potential risks.
  • Follow the Manufacturer’s Guidelines: Each model comes with specific instructions from the manufacturer. Adhering to these guidelines is integral for proper installation. Ensure you thoroughly understand the instructions, especially those concerning the handling, mechanical mounting, and electrical connections.
  • Mechanical Mounting: Once ready, begin the mounting process. The mounting surface should be clean and free from debris. Position the slip ring and secure it firmly using the recommended hardware. In the case of flange-mounted types, align the flange holes with the mounting surface holes and fasten the screws tightly.
  • Electrical Connections: After securing the slip ring, proceed to connect the electrical wires. Pay particular attention to the wire coloring and connection points, cross-checking with the manufacturer’s wiring diagrams to ensure correct connection. All connections should be tight and secure to prevent the risk of a short circuit.
  • Testing Phase: Once the slip ring is installed and all connections made, perform a thorough initial test before fully operationalizing your system. This test should validate all power and signal transmissions and identify any potential errors that should be addressed before beginning full system operations.

While the process may seem straightforward, several potential difficulties could be encountered during installation, including the following:

  • Confusion with Electrical Connections: Wiring and connection errors are common obstacles. Resolve these issues by thoroughly studying the manufacturer’s wiring diagram and ensuring each wire connects to the accurate point.
  • Incorrect Mounting: Inaccurate alignment or poor fastening of the slip ring can lead to performance issues or equipment damage. Follow the manufacturer’s guidelines and double-check all aspects of the mounting process to address this.
  • Environmental Impacts: High temperatures, moisture, or dust can affect the slip ring’s functionality. Opt for slip rings designed for specific operational environments or include necessary protections for environmental factors.

By carefully following the installation steps, and with a keen eye for troubleshooting, installing a large volume series slip ring can be accomplished effectively and efficiently, setting the stage for seamless operation in the encompassing system.

Maintenance and Troubleshooting of Large Volume Series Slip Rings

Regular maintenance and effective troubleshooting are vital for the proper functioning and longevity of large volume series slip rings. These proactive measures can help minimize the risk of unforeseen downtime and system failure.

Maintenance Tips and Importance

  • Regular Inspection: Schedule periodic inspections of the slip ring to assess its condition and proactively identify potential areas of concern. This process typically involves checking for brush wear, the state of the contact surface, and cleanliness.
  • Brush Replacement: One of the most common maintenance tasks is replacing worn brushes. Monitoring brush wear and replacing them in a timely manner ensures continuous electrical contact and prolongs the life of the slip ring.
  • Cleaning: Accumulated contaminants such as dust, grease, or debris can adversely affect the slip ring’s performance. Regular cleaning of the slip ring components is vital to maintain smooth and uninterrupted operation.
  • Lubrication: Some slip rings require lubrication to function at optimal levels. Follow the manufacturer’s recommendations, using specified lubricants and proper techniques to ensure the slip ring remains in optimum condition.
  • Maintain Documentation: Keeping detailed records of maintenance activities and schedules can facilitate troubleshooting efforts and ensure appropriate management of the system.

By diligently following regular maintenance procedures, you can improve the longevity and efficiency of the slip rings, which in turn lead to increased reliability and cost savings over time.

Troubleshooting Guidance

When issues with large volume series slip rings arise, some common troubleshooting steps can be followed to identify and address the problem:

  • Power and Signal Transmission: If there’s an interruption or distortion in the transmission, examine brush wear and the contact surface. Replace worn brushes or clean the contact surface to rectify the issue.
  • Electrical Noise: For issues related to electrical noise or interference, verify grounding connections and shielding. Ensure that any noise-generating equipment does not interfere with the slip ring’s proper functioning.
  • Overheating: In cases where slip rings overheat, assess the load, system voltage, and any signs of misalignment. Ensure that the electrical loads and connections are in accordance with the manufacturer’s specifications.
  • Mechanical Issues: For mechanical concerns such as vibrations or excessive noise, examine the mounting and alignment of the slip ring. Realign or resecuring the slip ring to address the issue.
  • Refer to Manufacturer’s Guidance: Always consult the manufacturer’s manuals and troubleshooting guides for specific instructions and recommended resolutions for each model.

A systematic approach to both maintenance and troubleshooting empowers users to effectively manage their large volume series slip rings, ensuring continuous uptime and consistent performance in various industries and applications.

Advancements and Future Trends in Large Volume Series Slip Rings

The field of large volume series slip rings is continuously advancing, driven by research and development efforts and the evolving needs of various industries. This progress encompasses both the performance and capabilities of slip rings, as well as their integration with emerging technologies.

Ongoing Research and Development

Some prominent areas of research and development in large volume series slip rings include:

  1. Improved Materials: Material science plays a crucial role in slip ring development, focusing on creating more durable, long-lasting contact materials and brushes. The goal is to minimize wear, enhance performance, and increase the overall lifespan of these components.
  2. Enhanced Signal Transmission: As data communication rates grow more essential across various industries, ongoing research aims at maximizing signal transmission capacities while minimizing signal loss or interference, enabling faster and more efficient data transfer.
  3. Reducing Operational Noise: Efforts are directed toward reducing friction, electrical noise, and overall slip ring system noise levels for improved performance and reliability in sensitive environments.
  4. Miniaturization: The demand to fit slip rings into smaller spaces is facilitating research aimed at designing compact, high-performance slip rings that can be integrated into tight spaces without compromising on capacity or functionality.

Future Trends

Based on current advancements and market needs, several trends are expected to shape the future of large volume series slip rings:

  1. Integration of Fiber-Optic Technologies: The integration of fiber-optic technology with slip rings is expected to increase, providing higher signal transmission capacities and faster data speeds, particularly in data-heavy industries like telecommunications and defense.
  2. Development of Smart Slip Rings: Advancements in sensor technology and data analytics are likely to usher in the era of smart slip rings. These systems will incorporate self-diagnosing and monitoring features, as well as predictive maintenance capabilities, thus minimizing downtime and improving operational efficiency.
  3. IoT and Industry 4.0 Compatibility: The ongoing trend of digitalization and automation across various industries is expected to push slip ring manufacturers to design solutions that are compatible with IoT and Industry 4.0 concepts. Seamless integration into these frameworks will ensure their continued relevance and value in the market.
  4. Customizable Solutions: As applications become more specialized, the demand for customizable slip rings tailored to specific requirements is expected to grow. More manufacturers will offer tailor-made solutions, ensuring their products meet the unique needs of varying applications and industries.

These ongoing advancements and future trends in large volume series slip rings reflect a trajectory toward better performance, higher functionality, and seamless adaptability to emerging technologies. As research and development efforts continue to evolve, these trends will further enhance the capabilities and applications of large volume series slip rings across diverse sectors.

FAQs about Large Volume Series Slip Rings

When dealing with large volume series slip rings, several queries and concerns frequently emerge. Below, we will address some of these common questions:

Q: What are large volume series slip rings used for?

A: Large-volume series slip rings are used in numerous applications that require power and signal transmission between a stationary and rotating part. Their typical applications include construction machinery, wind turbines, medical equipment, radar systems, satellite communication systems, and more.

Q: How does a slip ring work?

A: A slip ring works by making an electrical connection between a stationary and a rotating component. This connection enables power, data, and signal transmission, making continuous rotation possible without tangling or severing wires.

Q: What is the lifespan of a slip ring?

A: The lifespan of a slip ring depends on several factors, such as operational conditions, frequency of use, and maintenance practices, among others. However, with proper care and maintenance, a slip ring can last for millions of rotations.

Q: How do I perform maintenance on my slip ring?

A: Typical maintenance tasks for a slip ring involve regular inspections, cleaning, and brush replacements. It’s crucial to follow the manufacturer’s specific guidelines for cleaning and maintaining your slip ring to ensure optimal performance and longevity.

Q: Is there a limit to the number of circuits a slip ring can handle?

A: The number of circuits a slip ring can handle largely depends on its size and design. While specific limits vary from one model to another, advancements in technology are allowing manufacturers to create compact slip rings capable of handling a higher number of circuits.

Q: What happens when a slip ring fails?

A: A failing slip ring can result in interrupted power or signal transmission, erratic behavior in the connected system, or even damage to the overall equipment. It’s essential to properly diagnose the issue for effective troubleshooting and repair.

Q: Can a slip ring operate in harsh environments?

A: Yes, certain slip rings are designed specifically to withstand harsh environments, including high or low temperatures, dust, and moisture. Choose a slip ring that suits the environmental conditions of your application.

Q: Can I customize a slip ring to my specific needs?

A: Yes, many manufacturers offer customizable slip rings that can be tailored to specific requirements based on the application, including the number of circuits, current load, signal types, form factor, and more.

Whether you’re a first-time user or an experienced professional dealing with large-volume series slip rings, these FAQs should help to address common queries and provide a better understanding of the subject.
