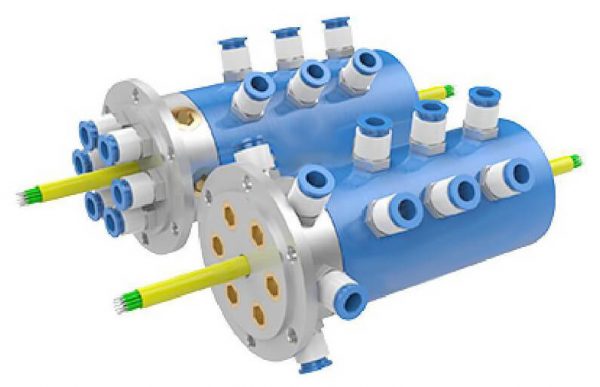

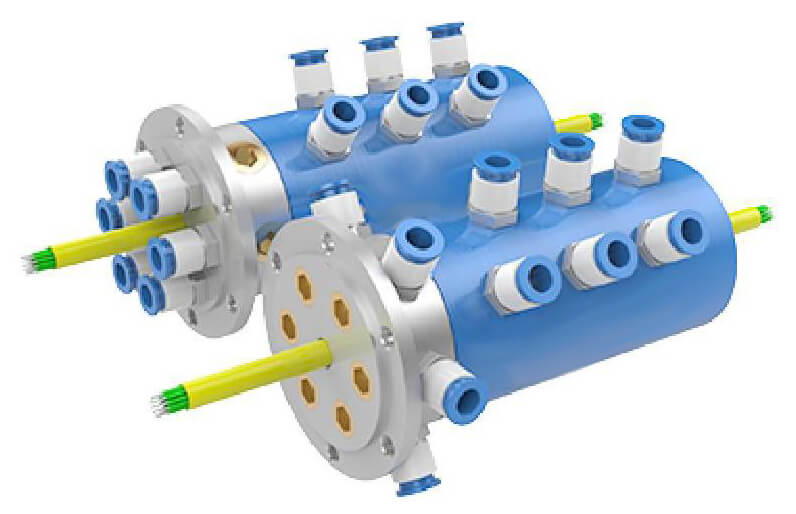

6 passage rotary joint

6 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical DataMechanical Data
Rated VoltagePower: 0~440 VAC/VDC
Signal: 0~240 VAC/VDC		Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC		Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise＜0.01ΩProtection GradeIP51

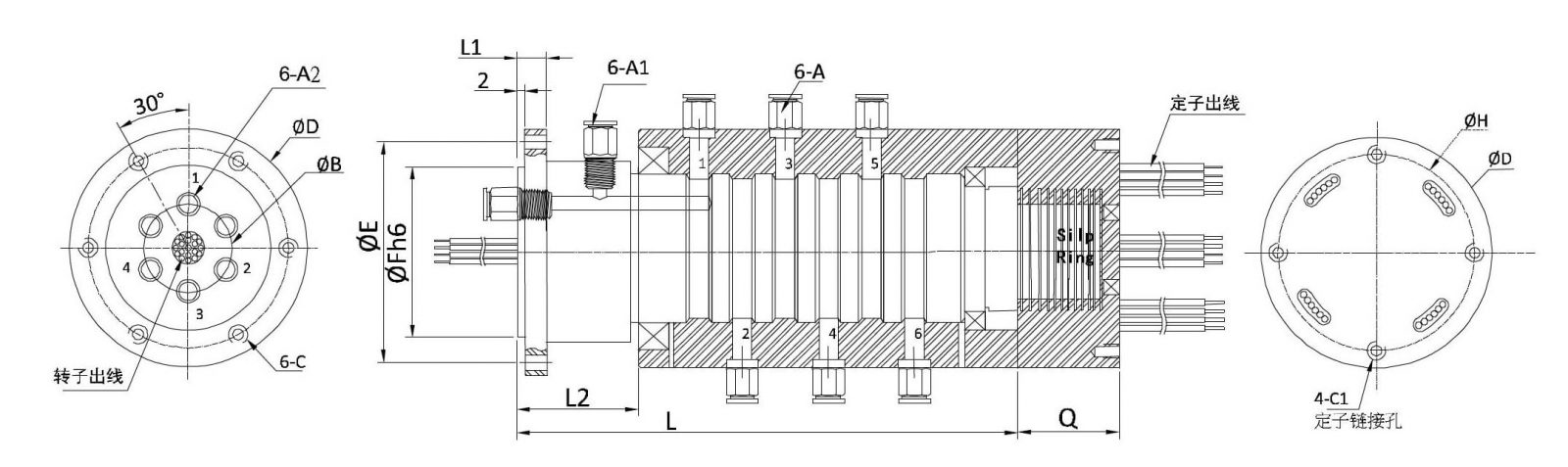

ModelAA1A2BCC1DD1EFHLL1L2QCircuitsCurrent
MPHD6M5-S0605M5M5M522M6M65959394949107183665A
MPHD6M5-S01205M5M5M522M6M6595939494910771866125A
MPHD6M5-S01802M5M5M522M6M6595939504910771866182A
MPHD6M5-S02402M5M5M522M6M6595939504910771866242A
MPHD6M5-S03602M5M5M522M6M6595939504910771871362A
MPHD6M5-S05602M5M5M522M6M6595939504910771891562A
MPHD6M5-S01805M5M5M523M6M6595939504910771893185A
MPHD6M5-S02405M5M5M523M6M65959395049107718110245A
MPHD6M5-S03005M5M5M523M6M65959395049107718127305A
MPHD6M5-S03605M5M5M523M6M65959395049107718147365A
MPHD6M5-S04205M5M5M523M6M65959395049107718167425A
MPHD6M5-S04805M5M5M523M6M65959395049107718182485A
MPHD6M5-S06005M5M5M523M6M65959395049107718227605A
MPHD618-S0605G1/8G1/8G1/831M6M669694959591327293665A
MPHD618-S01205G1/8G1/8G1/831M6M6696949595913272966125A
MPHD618-S01802G1/8G1/8G1/831M6M6696949595913272966182A
MPHD618-S02402G1/8G1/8G1/831M6M6696949595913272966242A
MPHD618-S03602G1/8G1/8G1/831M6M6696949595913272971362A
MPHD618-S05602G1/8G1/8G1/831M6M6696949595913272992562A
MPHD618-S01805G1/8G1/8G1/831M6M6696949595913272995185A
MPHD618-S02405G1/8G1/8G1/831M6M66969495959132729112245A
MPHD618-S03005G1/8G1/8G1/831M6M66969495959132729130305A
MPHD618-S03605G1/8G1/8G1/831M6M66969495959132729150365A
MPHD618-S04205G1/8G1/8G1/831M6M66969495959132729168425A
MPHD618-S04805G1/8G1/8G1/831M6M66969495959132729183485A
MPHD618-S06005G1/8G1/8G1/831M6M66969495959132729223605A
MPHD614-S0605G1/4G1/4G1/435M6M679645969541429343665A
MPHD614-S01205G1/4G1/4G1/440M6M6846964745914293466125A
MPHD614-S01802G1/4G1/4G1/440M6M6846964745914293466182A
MPHD614-S02402G1/4G1/4G1/440M6M6846964745914293466242A
MPHD614-S03602G1/4G1/4G1/440M6M6846964745914293466362A
MPHD614-S05602G1/4G1/4G1/445M6M6897469796414293497562A
MPHD614-S01805G1/4G1/4G1/445M6M6897469796414293499185A
MPHD614-S02405G1/4G1/4G1/445M6M68974697964142934117245A
MPHD614-S03005G1/4G1/4G1/445M6M68974697964142934135305A
MPHD614-S03605G1/4G1/4G1/445M6M68974697964142934155365A
MPHD614-S04205G1/4G1/4G1/445M6M68974697964142934175425A
MPHD614-S04805G1/4G1/4G1/445M6M68974697964142934190485A
MPHD614-S06005G1/4G1/4G1/445M6M68974697964142934230605A
MPHD638-S0605G3/8G3/8G3/851M6M6109898899791769393565A
MPHD638-S01205G3/8G3/8G3/851M6M61098988997917693964125A
MPHD638-S01802G3/8G3/8G3/851M6M61098988997917693964182A
MPHD638-S02402G3/8G3/8G3/851M6M61098988997917693964242A
MPHD638-S03602G3/8G3/8G3/851M6M61098988997917693970362A
MPHD638-S05602G3/8G3/8G3/851M6M61098988997917693995562A
MPHD638-S01805G3/8G3/8G3/856M6M6114949310484176939100185A
MPHD638-S02405G3/8G3/8G3/856M6M6114949310484176939117245A
MPHD638-S03005G3/8G3/8G3/856M6M6114949310484176939135305A
MPHD638-S03605G3/8G3/8G3/856M6M6114949310484176939158365A
MPHD638-S04205G3/8G3/8G3/856M6M6114949310484176939174425A
MPHD638-S04805G3/8G3/8G3/856M6M6114949310484176939193485A
MPHD638-S06005G3/8G3/8G3/856M6M6114949310484176939233605A

Lead Wires Color Code

Ring#123456789101112
ColorREDYELBLKBLUGRNWHTPUPGRYBRNORNDBLUYEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
