8 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical Data Mechanical Data
Rated VoltagePower: 0~240 VAC/VDC
Signal: 0~440 VAC/VDC
Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC
Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise<0.01ΩProtection GradeIP51

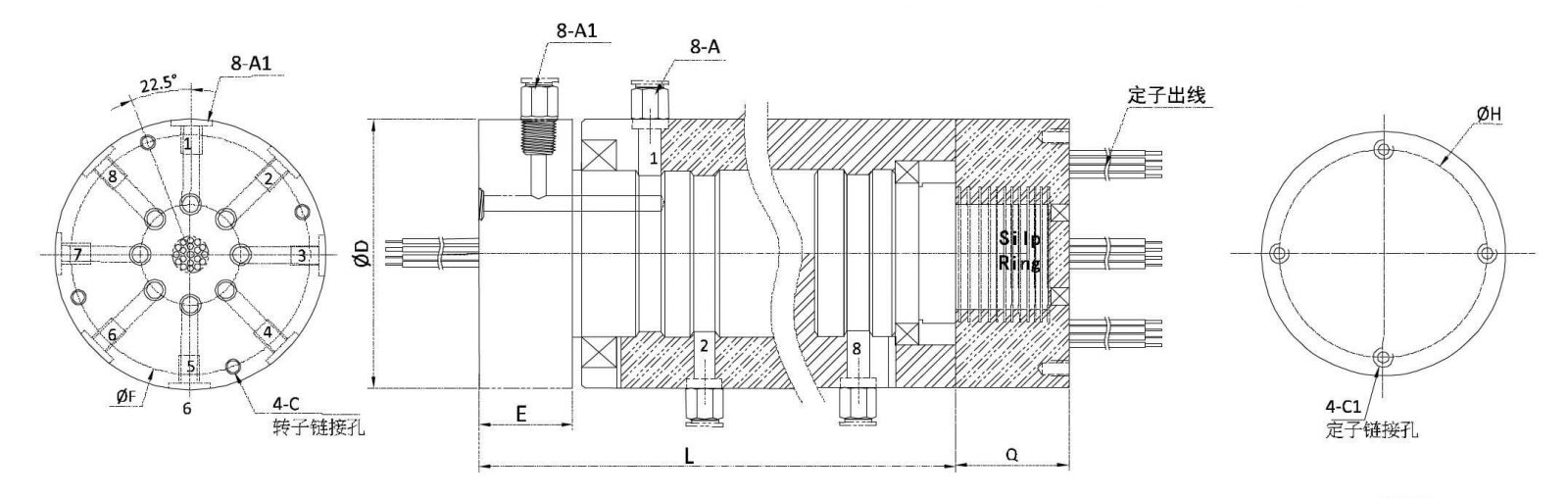

ModelAA1CC1DEFHLQCircuitsCurrent
MPHD8M5-S0605M5M5M6M6541544441263665A
MPHD8M5-S01205M5M5M6M65915494912666125A
MPHD8M5-S01802M5M5M6M65915494912666182A
MPHD8M5-S02402M5M5M6M65915494912666242A
MPHD8M5-S03602M5M5M6M65915494912671362A
MPHD8M5-S05602M5M5M6M65915494912691562A
MPHD8M5-S01805M5M5M6M66415545412693185A
MPHD8M5-S02405M5M5M6M664154954126110245A
MPHD8M5-S03005M5M5M6M664154954126127305A
MPHD8M5-S03605M5M5M6M664154954126147365A
MPHD8M5-S04205M5M5M6M664154954126167425A
MPHD8M5-S04805M5M5M6M664154954126182485A
MPHD8M5-S06005M5M5M6M664154954126227605A
MPHD818-S0605G1/8G1/8M6M6642049541463665A
MPHD818-S01205G1/8G1/8M6M66420495414666125A
MPHD818-S01802G1/8G1/8M6M66420495414666182A
MPHD818-S02402G1/8G1/8M6M66420495414666242A
MPHD818-S03602G1/8G1/8M6M66420545414671362A
MPHD818-S05602G1/8G1/8M6M66420545414691562A
MPHD818-S01805G1/8G1/8M6M66420545414693185A
MPHD818-S02405G1/8G1/8M6M664205454146110245A
MPHD818-S03005G1/8G1/8M6M664205454146127305A
MPHD818-S03605G1/8G1/8M6M664205454146147365A
MPHD818-S04205G1/8G1/8M6M664205454146167425A
MPHD818-S04805G1/8G1/8M6M664205454146182485A
MPHD818-S06005G1/8G1/8M6M664205454146227605A
MPHD814-S0605G1/4G1/4M6M6742764641703665A
MPHD814-S01205G1/4G1/4M6M67427646417066125A
MPHD814-S01802G1/4G1/4M6M67427646417066182A
MPHD814-S02402G1/4G1/4M6M67427646417066242A
MPHD814-S03602G1/4G1/4M6M67427646417071362A
MPHD814-S05602G1/4G1/4M6M67427646417091562A
MPHD814-S01805G1/4G1/4M6M67427646417093185A
MPHD814-S02405G1/4G1/4M6M674276464170110245A
MPHD814-S03005G1/4G1/4M6M674276464170135305A
MPHD814-S03605G1/4G1/4M6M674276464170155365A
MPHD814-S04205G1/4G1/4M6M674276464170174425A
MPHD814-S04805G1/4G1/4M6M674276464170193485A
MPHD814-S06005G1/4G1/4M6M674276464170233605A
MPHD838-S0605G3/8G3/8M6M6943084842033665A
MPHD838-S01205G3/8G3/8M6M69430848420366125A
MPHD838-S01802G3/8G3/8M6M69430848420366185A
MPHD838-S02402G3/8G3/8M6M69430848420366242A
MPHD838-S03602G3/8G3/8M6M69430848420366362A
MPHD838-S05602G3/8G3/8M6M69430848420391562A
MPHD838-S01805G3/8G3/8M6M69430848420399185A
MPHD838-S02405G3/8G3/8M6M694308484203119245A
MPHD838-S03005G3/8G3/8M6M694308484203135305A
MPHD838-S03605G3/8G3/8M6M694308484203155365A
MPHD838-S04205G3/8G3/8M6M694308484203170425A
MPHD838-S04805G3/8G3/8M6M694308484203188485A
MPHD838-S06005G3/8G3/8M6M694308484203209605A

Lead Wires Color Code

Ring# 1 2 3 4 5 6 7 8 9 10 11 12
Color RED YEL BLK BLU GRN WHT PUP GRY BRN ORN DBLU YEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
