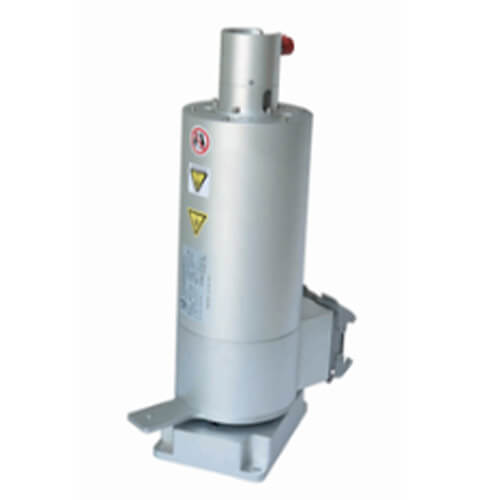

Wind Turbine Slip Ring HTW146-29-1.5 MW

Wind turbine slip ring consists of power ring, auxiliary power ring, safety chain ring and signal ring. It is used to offer power and control signal for wind turbine. HTW series wind turbine slip ring passed high and low temperature test, vibration and impact test, salt spray test, alternating humidity and heat test, protection level test and so on. HTW series with the life of 100 million revolutions, free maintenance.
For wind turbine slip rings technical specifications, submit your inquiry.

    Description

    Almost all MW grade wind turbine slip rings are customed, let us discuss about your solution!



    Mechanical DataElectrical Data
    ParameterValueParameterValue
    Operating temperature-40℃~+70℃Rated VoltagePower,0-400VAC
    Signal,0-24VDC
    Operating Humidity/Insulation ResistancePower,≥1000MΩ/1000VDC
    Signal,≥500MΩ/500VDC
    Structure MaterialAluminium alloyDielectric StrengthPower,1000VAC@50Hz,60s
    Signal,500VAC@50Hz,60s
    Contact MaterialGold to goldLead SizePower,Special type lead
    Signal,Special type lead
    ConnectorHarting(optional)Lead Length/
    Operating Speed0~24rpmDynamic Resistance<0.01Ω
    Protection LevelIP65
    Slip Rings Get a Quote

    Try Grand Slip Rings Now!

    🔒Need wind turbine slip rings installation guidance? Contact us now.

    Features

    ◆ Gold alloy contact process, high qualityelectroplate, reliable contact performance and long working life

    ◆ Adopt multi-contact technology to ensure stability and reliable transmission

    ◆ Use the auto temperature control system, adapt all kinds of climate environment

    ◆ Can transmit all kinds of signal, such as RS485, CANbus, Profibus, Ethernet

    ◆ Free maintenance design, reduce the cost of maintenance
