Irrigation slip ring

The purpose of this article is not only to elucidate the crucial role of slip ring applications in center pivot irrigation systems but also to address the various concerns that users may have regarding this application. These could range from issues related to durability and maintenance to questions about efficiency and potential technological advancements.

Introduction Slip Ring Application in Center Pivot Irrigation

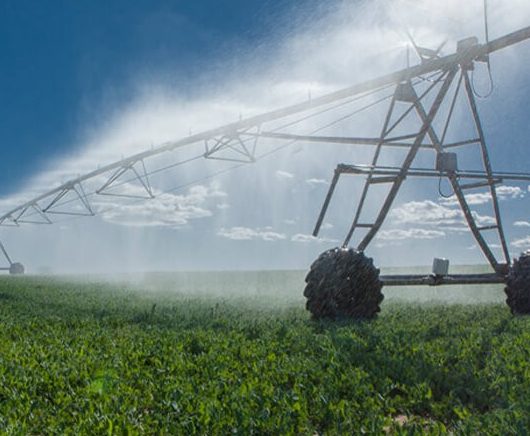

Center pivot irrigation systems are an invaluable tool in the agricultural industry. These systems, which are renowned for their efficiency and versatility, primarily consist of sprinkler automation equipment anchored by a fixed pivot point. From this point, a series of interconnected, wheeled pipes (or ‘spans’) stretch across the field and distribute water evenly over crops. The rotation around the pivot point ensures that every part of the field receives an equal amount of water, minimizing resource wastage and promoting healthy crop growth.

At the heart of this mechanism is a pivotal component known as a ‘slip ring’. These devices serve as the central hub for electrical power and signal transmission within the irrigation system. As the spans rotate, the slip rings ensure there is a seamless, uninterrupted flow of energy and communication between the stationary pivot and the moving parts of the system. Without slip rings, the spans would be unable to rotate the full 360 degrees necessary for effective operation, resulting in uneven water distribution and inhibited system functioning.

Understanding the integral role of slip rings in these irrigation systems is key to utilizing them more effectively and efficiently. Thus, this exploration aims to provide that understanding and pave the way for better, more sustainable irrigation processes that can maximize agricultural yield, reduce costs, and contribute to a more water-resilient future.

center pivot irrigation system slip ring

Understanding Center Pivot Irrigation Systems

Center pivot irrigation systems, as their name suggests, are a farming technique where equipment rotates around a central pivot point, distributing water evenly across the fields. These systems, in essence, are cosmetic marvels that combine engineering precision with agricultural needs to maximize efficiency and productivity.

The working mechanism of a center pivot irrigation system is fascinating. It consists of a long water pipe, often several hundred feet in length, balanced on a series of high-reaching towers. The towers are equipped with mobile wheels and are positioned at regular intervals along the pipe. At the heart of this setup is a fixed, central pivot point from which the pipe extends. While the pipe’s furthest end moves continually around the field, water is pumped through it, and released through sprinklers onto the crops beneath. The most distinguishing feature of a center pivot irrigation system is its ability to rotate, usually a full 360 degrees, enabling uniform water distribution across a circular area.

The various components of a center pivot irrigation system each play a crucial role. The central pivot, with the motor and controls, provides the necessary drive and direction. The spans or towers, typically constructed of galvanized steel or aluminum, provide structural support. However, it’s the crucial slip rings that ensure an uninterrupted power supply and data transmission irrespective of the system’s rotation – a function that stands as the linchpin for the system’s operation.

When compared to other irrigation methods such as flood or drip irrigation, center pivot irrigation holds several notable advantages. Firstly, the system allows for the consistent and even application of water, thereby preventing over or under-watering – this is particularly critical in regions where water conservation is a necessity. Secondly, these irrigation systems are automated and require minimal labor for operation, significantly reducing labor costs. Lastly, center pivot systems can be equipped with advanced technologies like GPS or remote monitoring tools, further improving their efficiency and effectiveness. These advantages make center pivot irrigation an attractive choice for large-scale farms and agricultural enterprises.

Role of Slip Rings in Center Pivot Irrigation

Within the context of center pivot irrigation systems, slip rings play an essential role in maintaining their most critical functionality – the continuous, uniform distribution of water. As the entire irrigation system rotates around a fixed central pivot point, the slip rings act as interfaces that enable the consistent transfer of electrical power and communication signals between the stationary and rotating components.

In essence, slip rings are electromechanical devices consisting of a conductive ring separated into individual segments, each connected to the system’s power and data lines. A set of brushes, connected to the rotating part of the system, maintains continuous contact with the conductive segments. As the irrigation system rotates, the brushes slide along the conductive ring surface, establishing a stable and constant electrical connection between the central pivot and the movable spans. This efficient, reliable power transmission enables the system to pump water and move the spans as intended, while also facilitating data transfer, such as control signals, system diagnostics, and other essential information.

The importance of slip rings in power transmission and communication cannot be overstated. Without them, the continuous rotation of the center pivot irrigation system would not be possible, resulting in stalled spans, erratic water distribution, and ultimately, diminished crop yield. Slip rings ensure the uninterrupted movement of the irrigation system, contributing to efficient water usage, controlled application of chemicals, and increased crop production. In summary, their function and the subsequent impact on agricultural output make slip rings an indispensable part of center pivot irrigation systems.

User Concerns Regarding Slip Ring Applications in Center Pivot Irrigation

In the precise and demanding agricultural landscape, where center pivot irrigation systems play a pivotal role, users often express specific concerns related to the application of slip rings. Let’s dive into these concerns in detail:

  1. Durability and lifespan: Given the critical role of slip rings in ensuring the smooth functioning of the irrigation system, concerns regarding their durability and lifespan are predominant. Users want assurance that these components can withstand the continuous rotation and friction they are subjected to, and have a long-lasting life to reduce the frequency of replacements and associated costs.
  2. Maintenance and ease of replacement: The agricultural industry is time-sensitive, and any downtime can have significant impacts on productivity. Users often express concerns over the maintenance requirements of slip rings and how easy they would be to replace in the event of failure. An ideal system would require minimal maintenance and offer a streamlined process for part replacement.
  3. Signal quality and communication reliability: Because slip rings facilitate the crucial transmission of power and data, any disruption or inconsistency in their performance could impact the entire irrigation system’s operation. Users frequently raise questions about signal quality and reliability, ensuring vital system-wide communication is upheld.
  4. Weather resistance and environmental factors: Irrigation systems, including their slip ring components, are continuously exposed to various weather conditions and environmental factors. Users often worry about the resilience of these components to factors like moisture, temperature shifts, and wear from dirt and grit, potentially impacting the system’s overall durability and performance.
  5. Cost and energy efficiency: Finally, cost and energy efficiency are central concerns for many users. While the initial cost of the slip ring is a factor, the longer-term power usage and potential need for replacement parts also play crucial roles in overall cost analysis. A balance of upfront investment and long-term operational costs contributes to the overall economic viability of the irrigation systems.

All these concerns underline the need for reliable, durable, and efficient slip ring design and technology, all of which can have a direct and significant impact on the productivity and profitability of agricultural operations. Addressing these concerns and developing solutions to combat them are key to realizing the optimal performance and benefits of center pivot irrigation systems.

Slip Ring Application in Center Pivot Irrigation: Addressing User Concerns

In response to the concerns that users have expressed regarding slip ring applications in center pivot irrigation systems, researchers and manufacturers have been hard at work developing innovative solutions:

  1. Design innovations for increased durability and extended lifespan: Manufacturers are employing design innovations to increase the durability and lifespan of slip rings. These include improved brush materials and design form factors that reduce wear and tear from constant rotation, and advanced bearing technologies that can handle greater loads, offering extended operational lifespan for slip rings.
  2. Material advancements to better withstand environmental factors: Material science has played a crucial role in addressing user concerns about weather resistance and environmental factors. Advancements in this area have led to the introduction of corrosion-resistant coatings, improved insulation materials, and moisture-resistant seals. For instance, gold-plated contacts are often used in slip rings to reduce corrosion and improve conductivity, thereby increasing the slip rings’ resilience to adverse environmental conditions.
  3. Technological developments for efficient transmission and improving signal quality: To ensure efficient power transmission and high-quality signal communication, manufacturers are embracing new technologies such as digital communication protocols and advanced shielding techniques to reduce electromagnetic interference. These technologies aim to enhance the overall efficacy and reliability of signal transmission, ensuring the smooth operation of the irrigation system.
  4. Strategies for reducing maintenance and replacement costs: To help reduce downtime and cut replacement costs, the industry is implementing the design of modular slip rings. This design ensures individual components can be replaced without needing to disassemble the entire unit, making maintenance far more straightforward and cost-effective. Additionally, advanced diagnostic tools are being developed to predict potential failures before they happen, allowing for proactive maintenance—further reducing downtime associated with unexpected slip ring failures.

These targeted resolutions to user concerns help to ensure that slip rings in center pivot irrigation systems remain reliable, efficient, durable, and cost-effective in improving agricultural productivity.

Case Study: Real-World Implementation of Slip Rings in Center Pivot Irrigation

One real-world example of the advanced implementation of slip rings in center pivot irrigation systems comes from Nebraska. Here, a large-scale farming operation spanning thousands of acres adopted the use of advanced slip ring technology in their center pivot irrigation systems. The primary focus was to combat the challenges related to durability, maintenance, environmental resilience, and signal quality.

  1. Description of a real-world example: The farming operation in Nebraska spanned varied types of terrain and crops, as well as environmental conditions – from extreme heat to deep snow. To keep up with the need for efficient, large-scale irrigation, the farmers opted for center pivot irrigation systems, fitted with advanced, durable slip ring modules. They chose a model with modular design and improved materials for better resilience to environmental changes.
  2. How this example addresses user concerns or illustrates the points made in previous sections: This real-world case serves as an excellent demonstration of the factors discussed above. Firstly, the chosen slip ring modules’ modular and durable design meant significantly improved lifespan and reduced maintenance needs – a win for durability, lifespan, and maintenance concerns. The advanced materials used in these slip rings, such as corrosion-resistant coatings and gold-plated contacts, made them highly resilient to varying and extreme weather conditions, addressing weather resistance and environmental factors. Regarding signal quality, the slip rings were designed with digital communication protocols for efficient transmission, ensuring uninterrupted system operation. Lastly, though initial costs were higher due to the advanced technology, the reduced frequency of maintenance and replacements meant lower long-term costs, successfully balancing cost and energy efficiency concerns.

This real-world example demonstrates how the implementation of advanced slip ring technologies in center pivot irrigation systems can alleviate user concerns and enhance productivity and efficiency in challenging agricultural environments.

Future Trends in Slip Ring Applications for Center Pivot Irrigation

As the technology surrounding center pivot irrigation continues to evolve, it promises exciting future trends in slip ring applications. Let’s delve into the potential advancements we might witness in this crucial component:

  1. Projection of future trends in slip ring technology: As we look to the future, several key trends are emerging in slip ring technology. The adoption of wireless power transfer and data communication technologies could revolutionize how routing power and signal transmission occurs between the stationary and rotating parts of the irrigation systems. This could potentially eliminate the issues of wear and tear caused by physical contact, enhancing durability and lifespan. Another significant trend is the incorporation of the Internet of Things (IoT) in slip ring technologies. Monitoring and diagnosing parts remotely through IoT devices can help predict and prevent potential issues, reducing downtime and maintenance costs.
  2. How these trends might address user concerns or shape the operation of center pivot irrigation systems: These prospective advancements in slip ring technology have tremendous potential to address the prevalent user concerns and reshape operation dynamics. Wireless technologies, for instance, would not only extend the lifespan and reduce the need for constant maintenance but also provide better signal quality due to the absence of physical contact-induced noise. The integration of IoT into these systems could enhance signal reliability, offer predictive maintenance, and significantly lower overall operational costs through improved energy efficiency and remote system monitoring.

One step further – machine learning algorithms could be integrated to predict failures and optimize irrigation efficiency based on historical data, enhancing the efficiency of center pivot irrigation systems.

In conclusion, user concerns are taking center stage in shaping the future of slip ring applications in center pivot irrigation, with substantial solutions leveraging advancements in wireless technology, IoT, and machine learning already starting to emerge.


The application of slip rings in center-pivot irrigation systems highlights their crucial role in supporting efficient, cost-effective, and reliable irrigation solutions for today’s agricultural industry. By staying informed and embracing advancements, users can maximize the potential of their center pivot irrigation systems and effectively address their concerns, ensuring optimal performance for years to come.
