Slip Rings in the Marine Industry: Their Use and Working Process

Slip Rings are electromechanical devices that may carry signals and power from a spinning shaft to a stationary structure. Electrical Slip ring and collection ring are other names for this component. A few even call it a Commutator, used in DC motors and generators. Rotary transformers are employed instead of slip rings in low-friction or high-speed applications.

Many different types of data and power are transmitted using Slip Rings in the electromechanical industry. The packaging industry, defense, semi-conductor processing equipment (such as winders), marine applications (such as oil and gas composition), wind turbines, automated welders, and aerospace all use Slip Rings.

Slip Rings in Marine Environments

  • Slip ring use in maritime or offshore locations is the most difficult. Oceanic circumstances, fast-moving within the water, and enough speed to rotate are many challenges you must overcome.

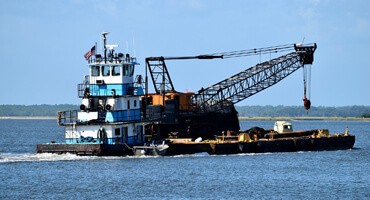

  • They’re also seen on ships like Coast Guard cutters, icebreakers, and cruise ships. Coil tubing, winches, wirelines, and cranes are just a few of the many Marine Offshore applications.
  • They have the advantage of delivering high frequencies while also being fully integrated with electrical power. A heat abstractor device can be modified to function with this gadget.
  • They’ve been engineered to emit minimal transmission and electrical noise and are widely used in high-conductivity transmission systems for transferring vast amounts of electrical energy.
  • Additionally, they are designed to last long with no lubrication required. A Database protocol and Digital and Analog signals can be transmitted using these devices. Because they may readily rotate up to a full 360 degrees, this is the most noticeable indication (in terms of data or power signals transmission).

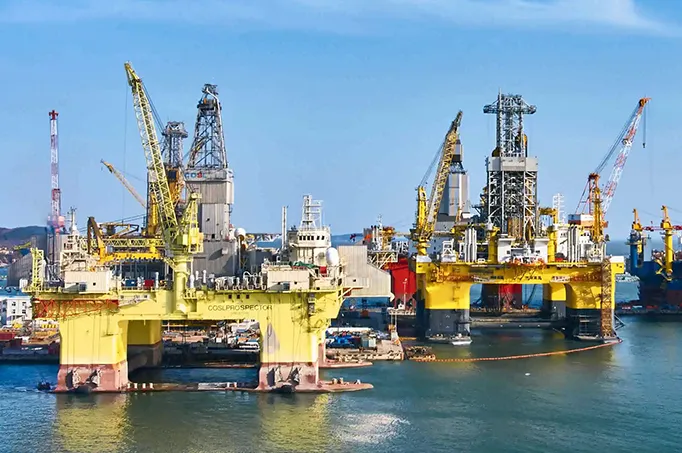

  • Drilling to greater depths is necessary for the oil and gas composition industries to extract gas or oil from the ground (underwater).

Ring of Electricity-Slip

  • Unrestrained connections (used to transmit power and passwords) are optimized, and the operation for long-term planning is obtained with the help of modern technology.
  • The ESR is mainly utilized by underwater cameras, oceanographic winches, seismic streamers, and remotely operated vehicles (Electrical Slip Rings).
  • The key advantages are that they are simple to maintain and install. Due to their ability to satisfy the fundamental criteria of flexible engineering, they stand alone.
  • In addition, the Electrical Slip ring may be replaced in seconds by anyone. They function as a single unit with the union assembly (Slip ring).
  • Among the different characteristics are numerous channels for transmitting power and data, which can be optimized. The connector and mounting combinations can be tailored to suit your specific device needs. There are various ways to attach your gadget to the wall (it may be up to infinite).

Rings for Pancakes

Pancake slip rings play a significant part if you’re working with a limited height and floor space. Slip rings of this type are commonly employed in the textile, printing, and medical sectors, among other applications. Dismantling or mounting an existing structure is also common usage for them. Different testing systems, huge motors, cable-making equipment, and giant winders are some of the typical applications.

The advantages are that you may easily modify them to match your particular device’s needs (the more rings or tracks will yield the best results).

Conclusion

Here, you’ll learn about the several sorts of slip rings for marine, how they work, and how they might benefit you.
