When we examine the evolution of machines in terms of technical improvement, we can observe that operating older machines manually. Manually operated devices take a long time and a lot of human work to start. As technology advanced, manually controlled equipment paved the way for automation. As a result, most machines need less human effort and less time to operate. The transition from manual to operational and technological advancements necessitates critical instruments. Pancake-style electrical slip rings are one of these mechanisms.

Pancake Slip Ring

Let’s attempt to grasp pancake slip rings a little better. Slip rings are devices with rotating or sliding rings. As a result, pancake slip rings are those sorts of electrical slip rings that, like a pancake, have a flat surface and a minimal height. A slip ring is a device that is necessary to carry electrical signals from a stationary component of a device to a revolving section. However, we don’t utilize cables while transporting electric current has long been raised.

flat slip ring

The apparent response is that cables are only appropriate for carrying electrical signals between static components and cannot be utilized in circumstances requiring a rotating element, which is why crepe slip rings or slip rings are employed. In general, slip rings. Pancake slip rings carry electrical impulses at a low height between fixed and rotating elements of a machine.

How They Are Unique from Other Slip Rings

Although slip rings serve similar tasks, they differ in design and application. The primary distinction between pancake slip rings and other types of slip rings is that the former is flat and of flat-type size. This form of slip ring has a low and insignificant height. They are for use in situations where horizontal space is higher than vertical space. The design of them is also to have reduced friction and torque. These slip rings are by using superior fiber brush technology.

Facts About Pancake Slip Ring Function

There are a few points to consider when selecting a rotary pancake collector. These factors will influence the performance and lifespan of pancake slip rings. The following criteria should impact your choice of pancake slip rings:

Rotation Speed

The revolutions amount or per minute of the pancake slip ring, revolution is known as its rotation rate. You may wish to specify the needed speed of your machine so that you may choose a slip ring that is suitable for it.

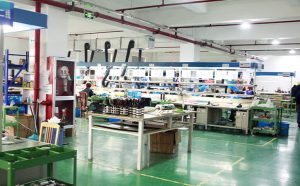

slip ring factory

High Altitude

Inform your provider of the height you intend to put the pancake slip ring. Because most slip rings work efficiently at sea level, it is advisable to notify the provider of your altitude needs.

Temperature Fluctuations

Before acquiring a pancake slip ring, you should first understand the temperature variations at the location. You should notify your provider of the expected temperature surrounding the intended installation location. Check whether you have one that meets the temperature range you want.


The term pancake slip rings comes from its flat, discoid form. It is in charge of sending electrical impulses from the device’s fixed position to the spinning portion. These slip rings utilize cutting-edge fiber brush technology. Employ them in applications that need a minimal height.
