Miniature Slip Ring

Are you looking for a micro slip ring/miniature slip ring/ small slip ring for your device? Slip rings are used to transmit power and data signals from a fixed (stator) component to a rotating (rotor) part of the machinery. They are timeless in applications that require signal transmission through joints rotating at 360°. Wires would be impractical in such joints, especially if the shaft is rotating an infinite number of times.

Slip rings generally feature two parts, which are the fixed metal brushes that slide to contact a rotating metal ring. They are used in several applications that come with unique specifications. Some of the popular slip rings include through-hole, pancake, FORJ (fiber optic rotary joints), and USB. You can also find distinctions, such as PCB, miniature, and capsule slip rings. Each model has unique applications and also features specifications for the equipment and operating environment.

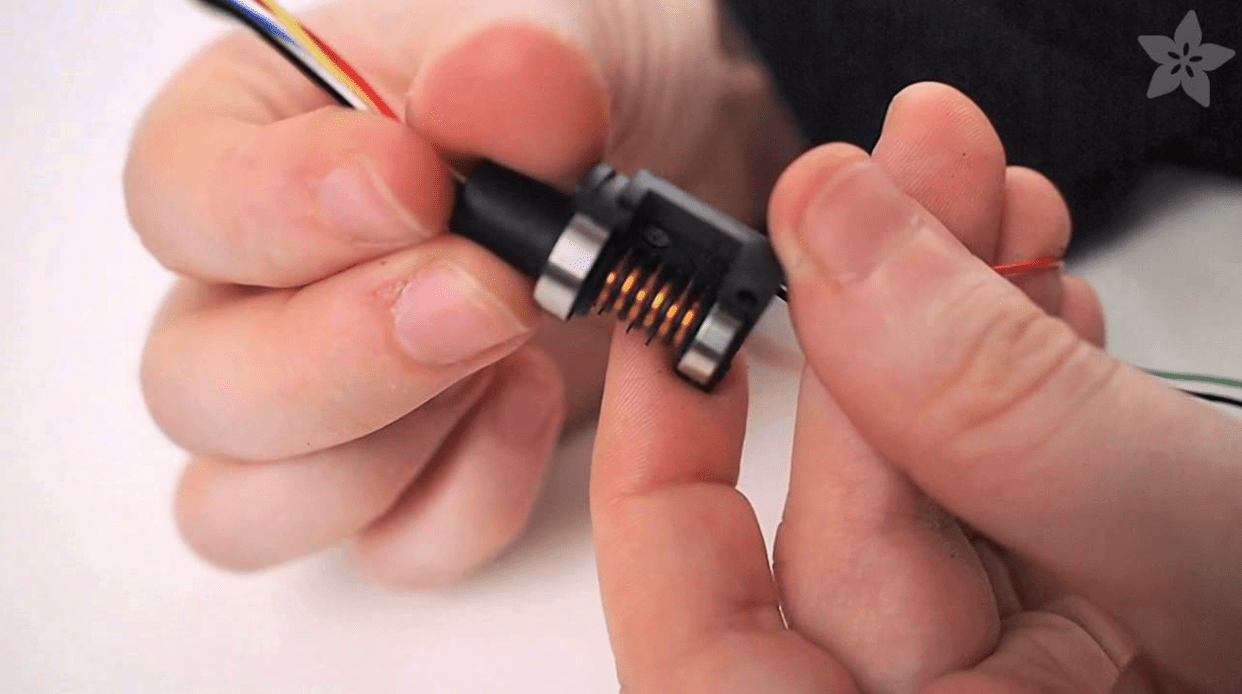

What is a Miniature Slip Ring?

Also known as a micro slip ring, a miniature slip ring gets its name from its size. Technically, any small slip ring qualifies to be miniature because of its tiny size. These slip rings can also be made from different materials. Most manufacturers prefer PCB, which provides a thin lightweight, and durable canvas for miniature slip ring applications. However, not all PCB slip rings are tiny, and some miniature models feature material other than PCB. It is also common for small devices to assume the pancake design since most are installed in narrow spaces. Then again, there are various distinctions between pancake and miniature slip rings.

Miniature Slip Ring Features and Specifications

There is no standard specification for a miniature slip ring. These electromechanical devices are application-specific and highly customized to meet unique equipment and operating environment requirements. As such, it is essential to find miniature slip rings for your device and application. Nonetheless, there are fundamental components of all miniature slip rings. This includes:

1. Metal Brush

Thin metal brushes act as stators and are fixed to provide contact to the rotating center piece for power and signal transmission. Some models feature brushes made using fiber brush technology and precious metal plating for reduced contact abrasion. Other designs are brushless to suit the needs of those who want noiseless, low torque, and low resistance miniature slip rings. The specifications for the metal brush will depend on your application.

2. Rotating Centerpiece

The rotating ring receives signals from the static brushes, completing transmission through the rotary joint. This centerpiece, which is a metal shaft in through bore and pancake designs, is made using durable metal alloys and coated with gold or other precious metals for an extended lifespan. Miniature slip ring kits will also feature mounting caps and other structural pieces depending on the equipment it is installed. The application environment will also influence the dimensions and properties required.

Uses of Miniature Slip Rings

Miniature slip rings work like most rotary joints by communicating power and data signals from fixed to rotating components in machinery joints. Some models transmit power only, while others transmit both power and data. The small size of miniature slip rings restricts them to lighter applications that require thin, lightweight devices and feature narrow installation spaces. Some of the popular uses of slip rings in devices include:


Modern, sophisticated CCTV systems rely on advanced miniature slip ring features that can facilitate the transmission of data signals at high speed. These surveillance systems are used in space-critical environments and require small slip rings that can fit and remain functional in narrow spaces available for their installation. Miniature slip rings also produce low torque and low noise, which is ideal for efficient surveillance. Since they are installed outside, CCTV miniature slip rings feature optimization for outdoor wear elements and come with varying specifications for data, Ethernet, video, optical signals, and USB. A standard design will feature support for power, Ethernet, and video, but you can add extra support depending on your surveillance system.

2. Smart Toys

Smart toys, such as helicopter and turntable models, rely on slip rings to facilitate power and signal transmission between the rotating joints. Because smart toys are generally miniature models, they solely rely on small, sometimes micro-slip rings. These designs are also ideal for small robots and virtually all smart toys that feature rotating joints. They are thin, lightweight, durable, and fully customizable, coming with the capacity to transmit power, data, or both. Because of their small size, these slip rings are cheap to mass-produce making them readily available for a variety of smart toys. They also come in different designs and mechanical and electrical specifications. As such, you should include all details in the instructions sent to the manufacturer before placing an order.

3. Small Rotating Systems

Miniature slip rings are essentially tiny rotary joints that can assume any shape and design to meet the function. You can find PCB, pancake, through bore, and USB miniature slip rings, so they fall into various categories of popular devices. As such, they are used in a wide variety of small rotating systems. Some of the popular examples include high-speed dynamometer measurement, wind turbine control systems, laboratory specimen monitoring equipment, high-speed video and data transmission, stain gauge monitoring, and more. These small rotary joints are invaluable for any miniature system that requires high-speed transmission of signals. The unique application and operating environment will determine what specifications are necessary for the slip ring.


Miniature slip rings come in different forms and specs. As such, you should make sure the manufacturer has the full instructions of what you need for your device. For instance, if you want models for outdoor CCTVs, you should choose weatherproof miniature slip rings with daytime insulation. You can also compare top-rated brands to note the existing distinctions and features. Slip rings are designed to work in specific equipment, which comes with a unique operating environment. Most miniature slip rings are highly customized to suit their application, so it is recommendable to consult the manufacturer or vendor for their professional recommendation. If you need a small, tiny rotary joint for signal transmission, a miniature slip ring is what you should purchase.
