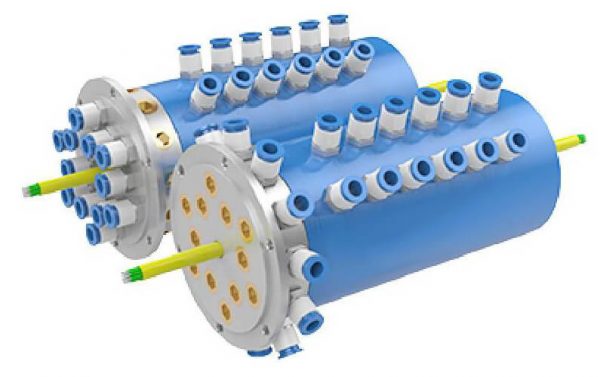

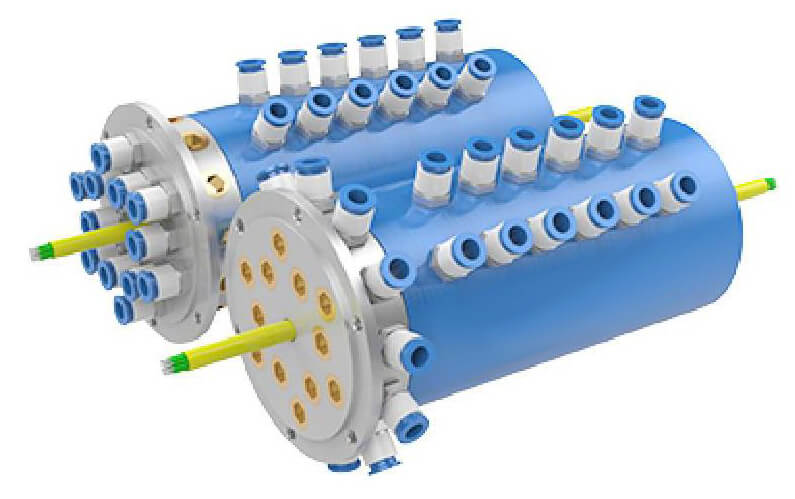

12 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical DataMechanical Data
Rated VoltagePower: 0~440 VAC/VDC
Signal: 0~240 VAC/VDC		Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC		Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise＜0.01ΩProtection GradeIP51

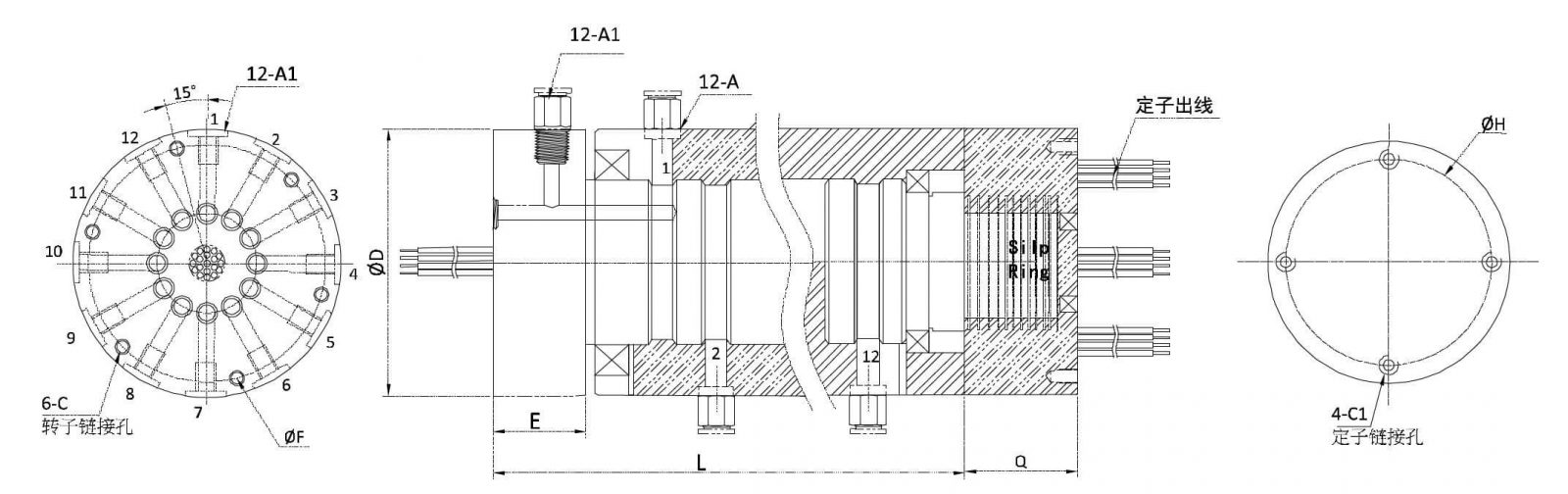

ModelAA1CC1DEFHLQCircuitsCurrent
MPHD12M5-S0605M5M5M6M6641554541663665A
MPHD12M5-S01205M5M5M6M66415545416666125A
MPHD12M5-S01802M5M5M6M66415545416666182A
MPHD12M5-S02402M5M5M6M66415545416666242A
MPHD12M5-S03602M5M5M6M66415545416671362A
MPHD12M5-S05602M5M5M6M66415545416691562A
MPHD12M5-S01805M5M5M6M66415545416693185A
MPHD12M5-S02405M5M5M6M664155454166110245A
MPHD12M5-S03005M5M5M6M664155454166127305A
MPHD12M5-S03605M5M5M6M664155454166147365A
MPHD12M5-S04205M5M5M6M664155454166167425A
MPHD12M5-S04805M5M5M6M664155454166182485A
MPHD12M5-S06005M5M5M6M664155454166227605A
MPHD1218-S0605G1/8G1/8M6M6742064642143665A
MPHD1218-S01205G1/8G1/8M6M67420646421466125A
MPHD1218-S01802G1/8G1/8M6M67420646421466182A
MPHD1218-S02402G1/8G1/8M6M67420646421466242A
MPHD1218-S03602G1/8G1/8M6M67420646421471362A
MPHD1218-S05602G1/8G1/8M6M67420646421491562A
MPHD1218-S01805G1/8G1/8M6M67420646421493185A
MPHD1218-S02405G1/8G1/8M6M674206464214110245A
MPHD1218-S03005G1/8G1/8M6M674206464214127305A
MPHD1218-S03605G1/8G1/8M6M674206464214147365A
MPHD1218-S04205G1/8G1/8M6M674206464214167425A
MPHD1218-S04805G1/8G1/8M6M674206464214182485A
MPHD1218-S06005G1/8G1/8M6M674206464214227605A
MPHD1214-S0605G1/4G1/4M6M6942784842143665A
MPHD1214-S01205G1/4G1/4M6M69427848424466125A
MPHD1214-S01802G1/4G1/4M6M69427848424466182A
MPHD1214-S02402G1/4G1/4M6M69427848424466242A
MPHD1214-S03602G1/4G1/4M6M69427848424471362A
MPHD1214-S05602G1/4G1/4M6M69427848424491562A
MPHD1214-S01805G1/4G1/4M6M69427848424493185A
MPHD1214-S02405G1/4G1/4M6M694278484244110245A
MPHD1214-S03005G1/4G1/4M6M694278484244135305A
MPHD1214-S03605G1/4G1/4M6M694278484244155365A
MPHD1214-S04205G1/4G1/4M6M694278484244174425A
MPHD1214-S04805G1/4G1/4M6M694278484244193485A
MPHD1214-S06005G1/4G1/4M6M694278484244233605A
MPHD1238-S0605G3/8G3/8M6M61083098842753665A
MPHD1238-S01205G3/8G3/8M6M610830988427566125A
MPHD1238-S01802G3/8G3/8M6M610830988427566185A
MPHD1238-S02402G3/8G3/8M6M610830988427566242A
MPHD1238-S03602G3/8G3/8M6M610830989827566362A
MPHD1238-S05602G3/8G3/8M6M610830989827591562A
MPHD1238-S01805G3/8G3/8M6M610830989827599185A
MPHD1238-S02405G3/8G3/8M6M6108309898275119245A
MPHD1238-S03005G3/8G3/8M6M6108309898275135305A
MPHD1238-S03605G3/8G3/8M6M6108309898275155365A
MPHD1238-S04205G3/8G3/8M6M6108309898275170425A
MPHD1238-S04805G3/8G3/8M6M6108309898275188485A
MPHD1238-S06005G3/8G3/8M6M6108309898275209605A

Lead Wires Color Code

Ring#123456789101112
ColorREDYELBLKBLUGRNWHTPUPGRYBRNORNDBLUYEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
