electrical rotary union

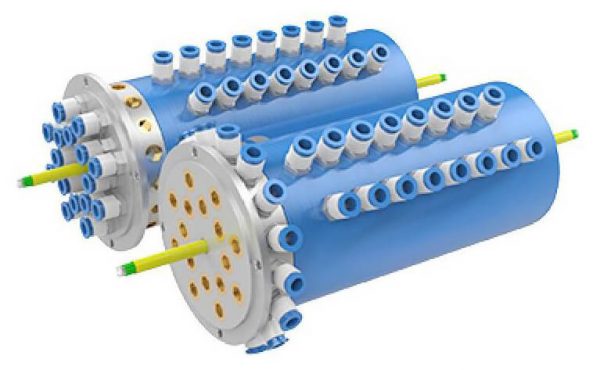

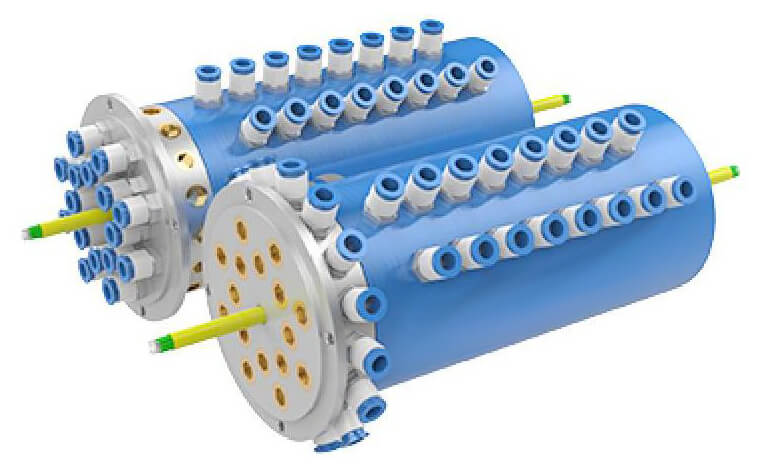

16 Passage Pneumatic/Hydraulic + Electrical Rotary Joints

◆ Support M5, G1 / 8, G1 / 4, G3 / 8, G1 / 2, G3 / 4, G1 thread for pneumatic

◆ Dynamic sealing technology

◆ With NSK high precision bearing

◆ Abrasion resistant, low torque, high speed

◆ Can be combined to transfer 2~96 circuits power and signal

Description

Electrical DataMechanical Data
Rated VoltagePower: 0~440 VAC/VDC
Signal: 0~240 VAC/VDC		Max. Speed400RPM
Insulation ResistancePower: ≥1000MΩ/500VDC
Signal: ≥1000MΩ/500VDC		Max. Pressure10Bar
Insulation Strength500VAC@50Hz, 60sWorking Temperature-30℃~+80℃
Lead WiresStandard (adjustable)Working Humidity0~85% RH
Lead LengthStandard 300mm (adjustable)Housing MaterialAluminum Alloy
Electrical Noise＜0.01ΩProtection GradeIP51

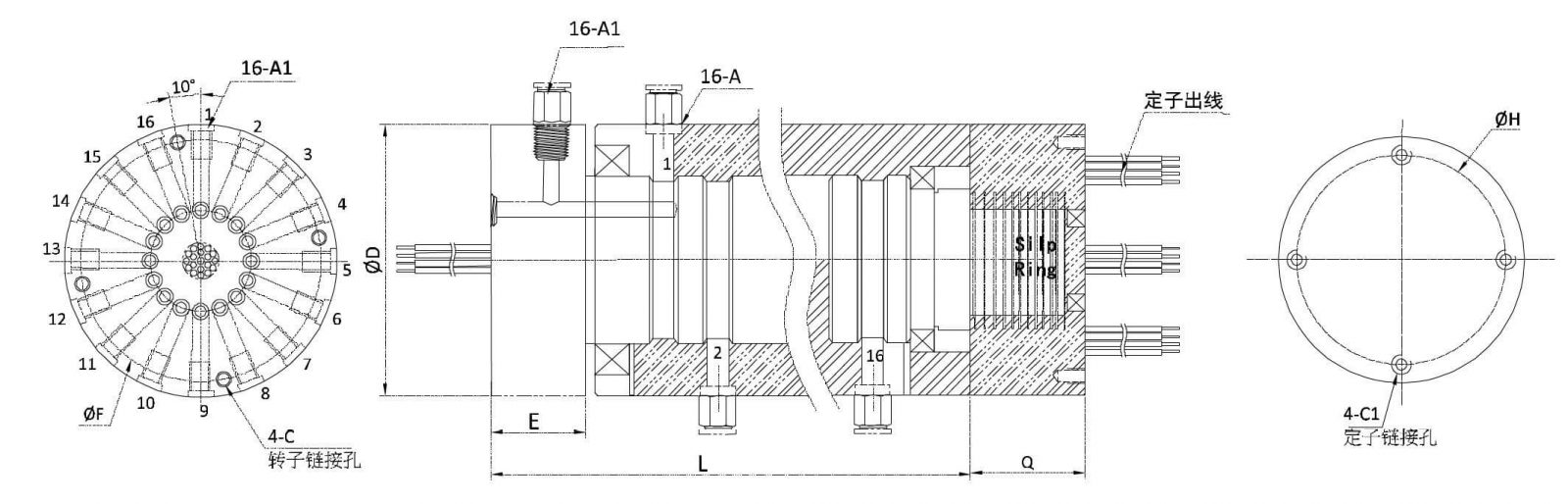

ModelAA1CC1DEFHLQCircuitsCurrent
MPHD16M5-S0605M5M5M6M6681558582083665A
MPHD16M5-S01205M5M5M6M66815585820866125A
MPHD16M5-S01802M5M5M6M66815585820866182A
MPHD16M5-S02402M5M5M6M66815585820866242A
MPHD16M5-S03602M5M5M6M66815585820871362A
MPHD16M5-S05602M5M5M6M66815585820891562A
MPHD16M5-S01805M5M5M6M66815585820893185A
MPHD16M5-S02405M5M5M6M668155858208110245A
MPHD16M5-S03005M5M5M6M668155858208127305A
MPHD16M5-S03605M5M5M6M668155858208147365A
MPHD16M5-S04205M5M5M6M668155858208167425A
MPHD16M5-S04805M5M5M6M668155858208182485A
MPHD16M5-S06005M5M5M6M668155858208227605A
MPHD1618-S0605G1/8G1/8M6M6882078782683665A
MPHD1618-S01205G1/8G1/8M6M68820787826866125A
MPHD1618-S01802G1/8G1/8M6M68820787826866182A
MPHD1618-S02402G1/8G1/8M6M68820787826866242A
MPHD1618-S05602G1/8G1/8M6M68820787826891562A
MPHD1618-S01805G1/8G1/8M6M68820787826893185A
MPHD1618-S02405G1/8G1/8M6M688207878268110245A
MPHD1618-S03005G1/8G1/8M6M688207878268127305A

Lead Wires Color Code

Ring#123456789101112
ColorREDYELBLKBLUGRNWHTPUPGRYBRNORNDBLUYEL-GRN
12 color wires as one group, if more than 12 wires, repeat as sequence. Can be customized
