Rotary milking parlors, a significant advancement in the dairy industry, have revolutionized the milking process. These parlors, featuring a mechanized, rotary platform with multiple milking stations, provide optimum workflow through continuous entry/exit of cows, ensuring a consistent milking routine that improves both productivity and cow comfort. Particularly advantageous for large-scale dairy farms, these parlors owe their operation efficiency to a key component – the rotary milking parlor slip rings.

The slip rings establish an electrical connection between the stationary and the rotating components of the parlor, enabling continuous power transmission for on-platform equipment such as automatic cluster removers or milk meters. They are integral to maintaining steady, uninterrupted operations and realizing the full benefits of rotary milking parlors. A thorough understanding of the slip ring’s selection, installation, and maintenance is invaluable for dairy professionals. This guide aims to offer comprehensive insights into these often-overlooked but crucial elements of the rotary milking parlors – the rotary milking parlor slip rings.

Understanding Rotary Milking Parlor Slip Rings

An exploration into the intricate world of slip rings is key to fully appreciating their vital role in the efficient operation of a rotary milking parlor.

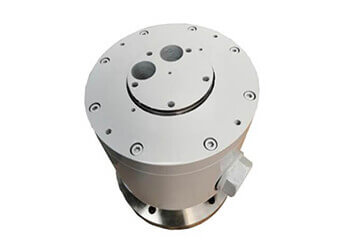

rotary milking parlor slip ring

Definition and Function

Definition of a Slip Ring

A slip ring, alternatively known as a rotary electrical joint, is a purposely designed device that allows the transmission of power and electric signals from a static structure to a rotational unit. It comprises two primary components: a rotating ring, usually made of a conductive material, and stationary brushes that maintain perpetual electrical contact with the rotating ring, thus allowing continuous power transmission while enabling relative rotation.

Application in Rotary Milking Parlors

Broadly adopted across rotary milking parlors, slip rings serve as the lifeline of the parlor’s functionality. As it’s commonplace for rotary milking parlors to feature myriad equipment on the rotating platform, invariably, these devices require power or communication signals from stationary units. The slip ring steps in to cover this gap, seamlessly facilitating the transfer of power and communication signals between stationary elements and the rotating parlor platform, thus ensuring the constant, undeterred operation of the parlor’s diverse range of equipment such as milk meters, automatic cluster removers, and more.

Types of Rotary Milking Parlor Slip Rings

Slip rings come in a variety of designs and structures, each catering to specific use cases within the broader scope of rotary milking parlors.

Common Variants

Primarily, the most common types of slip rings used in rotary milking parlors include Pancake slip rings, Capsule slip rings, Through-bore slip rings, and Mercury-wetted slip rings. Each type is employed for diverse power and transmission specifications, depending on factors such as size, power transmission capabilities, and maintenance demands.

Pros and Cons

Every type of slip ring plays a different role, and with pros come cons. Pancake slip rings, for example, are compact and tailor-made for space-constrained applications but may yield compromised power transmission. Capsule slip rings are known for their reduced noise and ease of integration but require preventive measures against potential size and environment limitations. Through-bore slip rings offer high rotational speed and higher power capacity but can fall prey to enhanced wear and tear. Lastly, Mercury-wetted slip rings are valued for their low resistance and high performance, although environmental concern with their mercury content does raise some eyebrows.

In the final analysis, the choice of a suitable slip ring variant rides on the balance between the pros and cons, whereby the specific requirements and constraints of the rotary milking parlor are the defining factors.

Design and Construction of Rotary Milking Parlor Slip Rings

Understanding the design and construction aspects of slip rings for rotary milking parlors enhances a farm owner’s ability to optimize their usage and maintain operational efficiency.

Components of Slip Rings

The primary components of slip rings in a rotary milking parlor include the rotating member, stationary brushes, and housing assembly. Each of these components plays a vital role in ensuring slip rings function effectively.

Explanation of the Main Components

  1. Rotating Member: Typically comprised of conductive rings, the rotating member facilitates the transference of power or signals from stationary brushes to the moving platform.
  2. Stationary Brushes: Positioned to maintain constant contact with the rotating member, these brushes serve as the channel for power or electrical signals from the stationary wiring to the rotating member.
  3. Housing Assembly: The housing serves to encapsulate the slip ring assembly, offering mechanical support and environmental protection.

Functioning of Each Component

The rotating member and stationary brushes work in tandem to enable the continuous transmission of power or signals across the rotating platform and stationary elements. Essentially, the brushes pick up the necessary signals from the stationary part while moving over the rotating member, ensuring a consistent flow of current or data. The housing assembly, in turn, enhances the durability and longevity of the slip ring system by protecting vital components from external elements.

Material Selection

The choice of materials significantly impacts the performance, durability, and maintenance of slip rings in rotary milking parlors.

Materials Used

Renowned slip ring manufacturers utilize an array of materials to optimize performance:

  1. Rotating Rings: Often made from metals like copper, brass, silver, or gold, these rings offer excellent conductive properties that help ensure optimal data and power transfer.
  2. Brushes: Materials used for brushes widely vary, from metal brushes made of silver, gold, or graphite to non-metal brushes made of carbon or epoxy resin.
  3. Housing Assembly: Housing materials are usually metals such as aluminum, stainless steel, or plastic, offering protective qualities against environmental factors.

Performance, Durability, and Maintenance

Material selection plays a significant role in determining the performance, durability, and maintenance of a slip ring:

  1. Performance: Metals with high conductivity levels (e.g., gold, and copper) ensure efficient power transmission and reduce signal loss.
  2. Durability: The selection of suitable housing materials aids in protecting the slip ring from environmental factors such as moisture, dust, and temperature fluctuations in various operational milieus.
  3. Maintenance: Utilization of materials with low wear rates (e.g., silver graphite brushes) bolsters the slip ring’s longevity and subsequently curtails maintenance demands.

In sum, the choice of materials significantly influences the slip ring’s function in rotary milking parlors, with the combination of various metals and housing components playing a key role in defining performance while mitigating degradation and maintenance requirements.

Installation of Rotary Milking Parlor Slip Rings

The successful installation of slip rings in a rotary milking parlor requires proper preparation, planning, and observance of safety measures to optimize function and longevity.

Preparation and Planning

Steps to Prepare for Installation

  1. Site Evaluation: Assess the rotary parlor design and its current equipment setup.
  2. Slip Ring Evaluation: Analyze the specific requirements of the slip ring that cater to your parlor’s needs—examine aspects such as power load, data transmission, rotational speed, and space availability.
  3. Procurement: Procure the selected slip ring, making sure it meets all the technical specifications.

Considerations When Choosing Slip Rings

The choice of a slip ring for your rotary milking parlor must take into account:

  • Power Requirements: The selected slip ring should adequately support the power load needed for various equipment on the platform.
  • Data Transmission: If data communication between the rotating platform and stationary posture is necessary, a slip ring supporting data transmission should be chosen.
  • Environmental Conditions: Consider factors like temperature, humidity, and the presence of dust or corrosive materials that can affect the slip ring’s operation and longevity.

Installation Process

Step-by-Step Guide

  1. Unpack the Slip Ring: Do this gently to avoid damage.
  2. Mount the Slip Ring to the Structure: Securely attach the slip ring to the rotary table shaft or other suitable location following the manufacturer’s recommendations.
  3. Establish Connections: Connect power/data cables to the slip ring terminals, ensuring secure and correct connections.
  4. Test the System: Before fully operationalizing, run preliminary tests to ensure that the slip ring is successfully transmitting power/data.

Safety Precautions

  • Be clear about the slip ring’s voltage rating and never exceed it.
  • Ensure all power is off before beginning installation to prevent electrical shocks.
  • Use appropriate personal safety gear including but not limited to insulated gloves and safety goggles.
  • Follow the manufacturer’s instructions explicitly while installing the slip ring.
  • Do not modify the slip ring without consultation from the manufacturer.

Maintenance and Troubleshooting of Rotary Milking Parlor Slip Rings

Effective maintenance and efficient troubleshooting are pillars that guarantee the optimal performance and longevity of slip rings in rotary milking parlors.

Routine Maintenance

Routine Maintenance Tasks

Regular maintenance tasks for slip rings encompass the following:

  1. Cleaning Brushes and Rings: This involves removing accumulated debris or dust that may impede current flow and cause detriments to performance.
  2. Inspecting Components: Regular inspection of components, such as rotating rings, brushes, housing, and connections, helps detect signs of wear and tear or any other potential issues early on.
  3. Lubrication: Some slip ring models may require occasional lubrication to reduce wear and friction between the rotating rings and brushes.

Ensuring these tasks are completed regularly will provide a healthy operating environment for your slip rings.

Ensuring Longevity and Optimal Performance

The longevity and optimal performance of slip rings can be ensured by adhering to the manufacturer’s recommended maintenance procedures and intervals, using high-quality components, and proactively addressing any identified problems. So, regular check-ups and immediate attention to potential problems are the keys to long-lasting performance.

Troubleshooting Common Problems

Identifying Issues

Some common issues that might occur with slip rings in rotary milking parlors include:

  1. Interruptions in Power Flow: This could be due to worn-out brushes, collected debris, or damaged rotating rings.
  2. Fluctuating Signal Transmission: Resulting from corroded or worn-out contact points or issues in the connected devices.
  3. Excessive Noise or Heat: This could indicate excessive friction, a sign of lack of lubrication, or potential overloading.

Solutions to Common Problems

Here are some troubleshooting techniques and solutions to rectify these issues:

  1. Interruptions in Power Flow: Regular cleaning and checking for wear and tear can resolve this issue. Replacement may be needed if the rings or brushes are heavily worn out.
  2. Fluctuating Signal Transmission: Checking and repairing the connections and contact points can help. Again, replacement might be a solution for severely worn parts.
  3. Excessive Noise or Heat: Lubrication of components and load balancing can mitigate these issues. In extreme cases, replacement or overhaul might be necessary.

Always keep in mind to consult the manufacturer’s manual or seek professional help when attempting more serious repairs. Regular maintenance and timely troubleshooting are instrumental in ensuring efficient functioning and prolonging the lifespan of slip rings in rotary milking parlors.

FAQs About Rotary Milking Parlor Slip Rings

This section aims to address some of the commonly asked questions regarding rotary milking parlor slip rings. These questions encompass aspects of selection, installation, and maintenance.

Q1: How do I choose the appropriate slip ring for my rotary milking parlor?

A: It is essential to consider factors such as power requirements, data transmission needs, and environmental conditions when selecting a slip ring for your rotary milking parlor.

Evaluate the load capacity needed for your equipment, the need for data communication, and the possible impact of temperature, humidity, and dust on the slip ring’s operation and longevity. Consult with a professional or slip ring manufacturer for tailored advice.

Q2: Can I install the slip ring myself, or do I need to hire a professional?

A: Although installation can be accomplished with a degree of DIY knowledge, hiring a professional is recommended—especially for complex configurations or if you have limited experience.

Following the manufacturer’s instructions and safety precautions is critical if you decide to install the slip ring yourself. Ensure that all power is off before beginning the process to avoid the risk of electrocution.

Q3: How often do I need to perform maintenance on my slip ring?

A: The frequency of maintenance depends on various factors, such as the slip ring’s materials, environmental conditions, and its usage. As such, adhering to the manufacturer’s recommended maintenance procedures and intervals is advised.

In general, routine cleaning and inspection should be performed periodically to ensure optimal performance and early detection of any issues. More extensive maintenance, such as lubrication or part replacement, may be needed less frequently but is essential in keeping the overall system.

Q4: Why is my slip ring getting excessively hot or making noise?

A: Excessive heat or noise could be indicative of excessive friction between brushes and rotating rings. This may result from a lack of lubrication, wear and tear, or potential overloading.

To mitigate these issues, ensure proper maintenance is conducted regularly. This includes lubrication (if required) and load balancing. If the problem persists or worsens, consult the manufacturer or a professional for assistance.

Q5: Are slip rings for rotary milking parlors suitable for different types of environments?

A: Slip rings are available in various models and materials designed to cater to different environments. When selecting a slip ring for your milking parlor, consider factors like temperature, humidity, and the presence of dust and corrosive materials.

To enhance durability and longevity, choose slip rings equipped with appropriate housing materials and coatings capable of withstanding the specific conditions of your operational environment.

Remember that understanding the intricacies of rotary milking parlor slip rings while paying attention to proper selection, installation, maintenance, and troubleshooting is pivotal for ensuring their optimal performance and longevity.

Conclusion

A thorough understanding of rotary milking parlor slip rings, their design, installation, and maintenance, can significantly contribute to the smooth operation and longevity of your rotary milking parlor. Carefully considering factors such as slip ring type, material selection, and maintenance practices can help you ensure optimal performance and an efficient milking process in your dairy farm.
