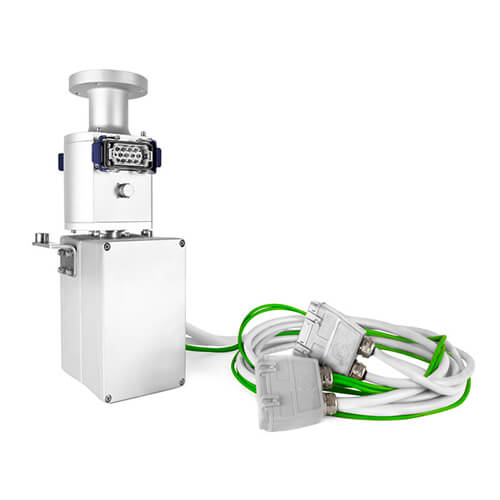

Slip rings have varied applications, but they generally play the same role. Technically, these are electromechanical devices that are designed to facilitate the conversion of electrical and data signals from a fixed (stationary) to a rotating part. The fixed part is usually made of carbon graphite brushes, while the rotating metal rings may feature various metal alloys. The components also feature metal surface plating to reduce corrosion and degradation. Slip rings are standard in wind power technology, such as wind power slip ring. In these systems, they play a central role in transmitting power and data signals between stationary nacelles to the control system, which features rotating metal blades. Below is an overview of slip rings used in wind power technology, including their unique role and merits.

The Role of Slip Rings in Wind Power Technology

All slip rings are designed to function as rotary joints that can allow electrical and data communication between stationary and rotating interfaces. With so many applications having these needs, there are several types of slip rings available in the market. These are electromechanical devices that transmit power and data from a stationary brush to a moving metal ring or shaft. Some models feature fixed rings with fixed metal brushes joined to moving to a house. The design and specification details depend on the individual applications where the slip ring is used. This includes the equipment, such as an electric motor or wind turbine generator, the unique operating conditions (operating temperature, height, weather elements, pressure), and user preferences. Slip rings can also be used to insert resistance, especially in induction motors.

In wind power technology, however, slip rings retain their primary role, which is to ensure the control system receives power and data signals from the nacelles. Without a slip ring, the hub controls, pitch mechanisms, and entire system wouldn’t work. The slip rings are designed to allow endless 360-degree rotations, making them the ideal rotary joints for the wind turbine system.

Slip Ring Design for Wind Power Technology

Customization is essential when selecting any slip ring. These devices are designed for specific application requirements, so you must review all the mechanical and electrical specifications to ensure optimal slip ring functionality. That said, slip rings for wind power technology are different from conventional models. Demanding operating conditions call for sturdier materials and advanced technology to ensure the device maintains resistance and conductivity throughout its lifecycle. A typical slip ring features fixed carbon graphite brushes and rotating metal alloy rings. A full assembly will include bearings, end caps, and other structural parts. The surfaces also feature metal plating to reduce degradation. In wind power technology, these processes require advanced technology to ensure the device can withstand the wear and tear elements within its operating environment. Wind turbines, for instance, require robust, solid metal slip rings and gold wire technology to provide the necessary functionality.

What to Consider

Wind power technology slip rings are designed for specific plants and systems. As such, it is important to provide comprehensive instruction about all the specifications you need. For instance, if you want to replace damaged wind turbine slip ring blocks, you can use the broken device as a model for minimum specifications. It is also essential to research the market for new slip rings with better features. Some of the crucial things to consider include:

1. Slip Ring Technology

There are several merits to using modern slip rings that feature advanced technology. In traditional wind turbine slip rings, one damaged brush would require replacing the entire block. In modern solid metal devices, on the other hand, you will only replace the damaged metal brush. Similarly, fiber brush technology can result in some of the most reliable anti-corrosion slip rings. However, the technology comes with the caveat of limited high-power currents. As such, it is always essential to review the technology used and identify if there is an opportunity to upgrade your wind turbine slip rings. For instance, you can find newer models that feature built-in lubrication, which is ideal if you are looking to cut back maintenance costs.

2. Material Used

Because of their harsh operating environment, wind power technology slip rings require improved tensile strength. More importantly, they need highly efficient materials that can fit the central purpose despite the demanding conditions. Manufacturers use various measures, including salt spray tests, to ensure their slip rings meet the minimum requirements for the operating environment. They also use advanced materials for the brush, ring, and housing as well as gold wire technology for improved anti-abrasion. When reviewing materials, the priority should be on conductivity, durability, operating temperatures, and maintenance requirements. You can also request custom materials, or ask for a professional recommendation from the vendor. Wind power technology slip rings often feature some of the hardest metals and alloys.

3. Application Customizations

Slip rings are application-specific, so wind turbine slip rings cannot be used anywhere else. However, this also limits the production of standard slip rings, since each application has unique specifications. There are various things you will need to customize about your slip ring. This includes basic requirements such as making an outdoor slip ring weatherproof, insulating those used under high temperatures, and reducing EMI in models used for data transmission. For wind power technology slip rings, complexity varies depending on the system where it is installed. Small wind turbines, for instance, transmit low power and feature fewer sensors since the priority is to provide a compact, functional design. For a multi-megawatt system, however, requirements are significantly higher, considering these devices involve transmitting large amounts of power and data through various buses.

Conclusion

Slip rings are inseparable from wind power technology as they perform a central role in such systems. However, you must choose the proper device to ensure your system remains functional throughout the year. Some of the popular wind turbine slip ring brands include Senring, Rotarx, JINPAT, and Moflon, all of which provide various models of rotary joints for wind power technology. You can compare the top models from reputable brands to identify the most suitable slip ring for your unique application.
