What is a Subsea Cable Reel Slip Ring?

subsea cable reel slip ring

In the realm of subsea operations, the subsea cable reel slip ring is a key player. But what is it exactly? Simply put, a subsea cable reel slip ring is a sophisticated electromechanical device that facilitates the transfer of electrical power and signals between static and rotating components. It acts as the bridge that ensures the continuous flow of power or data transfer, even when part of the system is in motion. They are encapsulated within specialized, hardwearing materials to stand up to extreme pressure, salinity, and temperature variations, typical of undersea conditions.

Picture a remotely operated vehicle (ROV) tethered to an offshore vessel. As the ROV navigates underwater, it must continually relay data to the vessel and receive commands. Simultaneously, the tether or umbilical cable that links them is being unwound and rewound, with parts rotating to accommodate this movement. These rotations could disrupt the electrical conductance were it not for the subsea cable reel slip ring, installed within the cabling reel. Instead, the information and commands pass seamlessly, unaffected by the rotations, ensuring efficient and effective subsea operations.

Over the progression of this guide, we will expand more on the different components and materials making up these slip rings, their installation and maintenance requirements, and significant points to consider when troubleshooting. So, read on to gather insights about this vital fulcrum of subsea operational success.

Basics of a Subsea Cable Reel Slip Ring

To effectively comprehend the significance and operations of a subsea cable reel slip ring, it is essential to familiarize ourselves with its basic components and construction. In this section, we will explore the materials used in manufacturing these slip rings, the reasons behind the choice of these materials, and the primary cable types and specifications associated with their use. An understanding of these fundamentals paves the way for a deeper awareness of the mechanism and applications of this crucial undersea technology.

Material and Construction

As a key enabler of underwater operations, subsea cable reel slip rings must exhibit durability and resilience in the face of harsh environmental challenges. The choice of materials must withstand seawater corrosion, high pressure, fluctuating temperatures, and other factors that could lead to device failure. Consequently, these slip rings are typically manufactured from a combination of corrosion-resistant materials such as:

  • Stainless steel: Valued for its high strength, anti-corrosion properties, and compatibility with a range of components, stainless steel is a popular choice for constructing many parts of the slip rings, including the housing and rotor components.
  • Bronze: This strong, corrosion-resistant, and wear-resistant alloy plays a significant role in the performance of slip rings, particularly as the base material for the rings. The favorable electrical conductivity of bronze enhances signal transmission quality.
  • Specialized alloys: Depending on the specific application, different alloys may be used, such as superalloys or corrosion-resistant metals, aiming to optimize the slip ring’s performance and longevity under extreme subsea conditions.

Combining these materials ensures that the subsea cable reel slip rings can consistently operate efficiently in their demanding environment, fulfilling their critical role in various underwater industries.

Cable Types and Specifications

A subsea cable reel slip ring operates in conjunction with different types of cables, each of which is specifically designed to cater to the demands of various applications and data/power transmission requirements. The principal cable types associated with slip rings include:

  • Fiber optic cables: These offer high-speed data transfer capabilities, ideal for applications requiring fast communication without interference or signal loss, such as real-time monitoring or video streaming. Challenges exist in incorporating fiber optic technology within slip rings, as they require reliable alignment and minimal data losses.
  • Coaxial cables: Coaxial cables are commonly used for radiofrequency (RF) signal transmission. They possess a high shielding capacity, which reduces interference or signal loss. They are well-suited for applications such as telemetry, antenna systems, or radar communication.
  • Power cables: Ranging from low voltage to high voltage, power cables play a pivotal role in power delivery between stationary and rotating components in subsea operations. These cables’ specifications vary significantly depending on the requirements of the specific application, including factors like power constraints and environmental conditions.

The diversity in cable types and specifications reflects the breadth of applications in which subsea cable reel slip rings are engaged. The choice of cables must be carefully tailored to suit each unique application, optimizing power, and signal transmissions to achieve operational excellence.

In the following sections, we will delve into how these slip rings work, their applications, and critical aspects of installation and maintenance, building upon the foundational knowledge imparted in this section.

Subsea Cable Reel Slip Ring How It Works

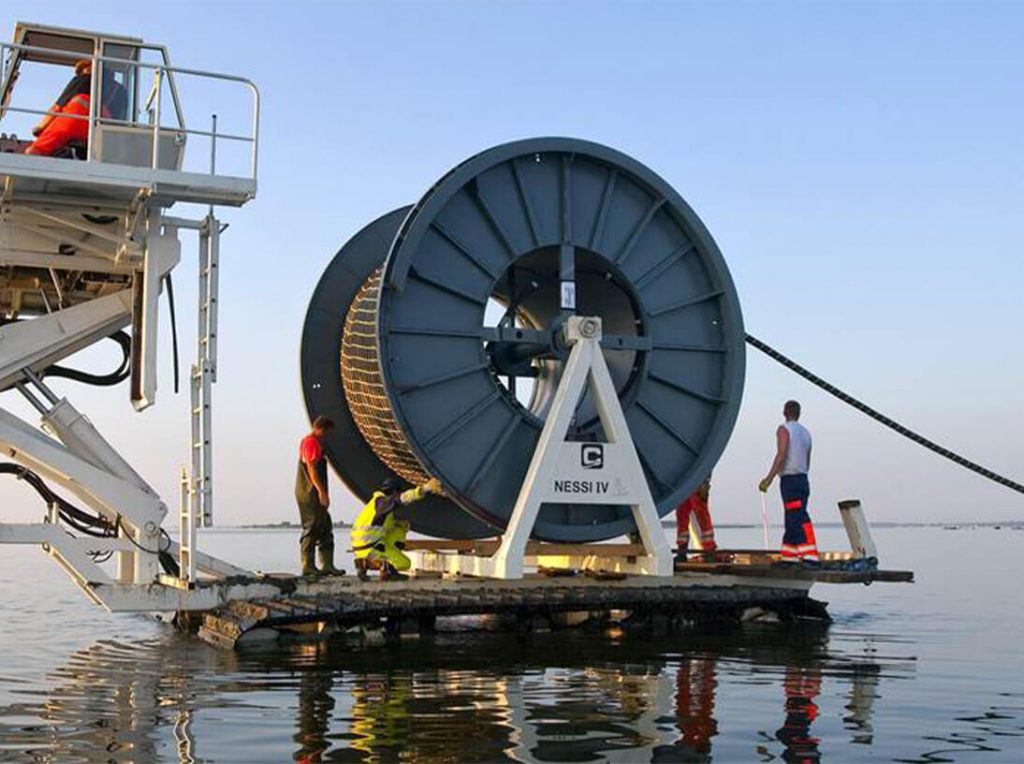

slip ring for Cable reel

Understanding the inner workings of a subsea cable reel slip ring is central to comprehending its role in facilitating smooth and efficient subsea operations. From the basic principle of its functionality to the intricate nuances of its construction, this device is a remarkable representation of mechanical and electrical engineering applied to overcome challenging underwater environments.

The core functionality of the subsea cable reel slip ring is fairly straightforward. The operation is based on an assembly of brushes and rings, integrated into a system where one part remains stationary (stator) while the other part rotates (rotor).

The stator holds the brushes. These brushes, typically made from materials like carbon or precious metals, are designed to accommodate continual wear while maintaining efficient conductivity. They are tensioned against the rotating part of the slip ring, the rotor, to ensure continuous electrical connection.

The rotor holds the rings. These rings, usually crafted from materials such as bronze or copper, are spaced out along the rotor and electrically isolated from each other. Each ring corresponds to a specific electrical circuit (power or signal).

As the rotor spins with the unwinding or winding action of the cable, the brushes remain in constant contact with the rings, despite the rotation. This persistent contact allows for the continuous transfer of electrical signals and power between the stationary and rotating components.

Let’s further illustrate this with a possible real-world scenario. Consider a remotely operated underwater vehicle (ROV) performing subsea inspections. The ROV is tethered to the parent ship via an umbilical cable, wound on a large reel. As the ROV moves farther from the ship, the cable unwinds, and the reel rotates. Inside the reel, the slip ring maintains the electrical connection, enabling data and power to flow between the ship and the ROV. The brushes, connected to the stationary part (ship), maintain contact with the rings on the rotating part (reel), ensuring seamless signal and power transmission.

Through this simple yet ingenious design, the subsea cable reel slip ring ensures that rotations, whether from cable unwinding, winding or other mechanical movements, do not disrupt or compromise the electrical connection within the system. In the following sections, we will explore the varied applications of this powerful device in different maritime industries, alongside critical installation and maintenance practices that ensure its optimal performance.

Subsea Cable Reel Slip Ring Application & Utilization

Subsea cable reel slip rings find utility in an array of technological fields and industries, underlining their versatile nature and the critical role they play in ensuring smooth and effective underwater operations. Here, we delve into how these slip rings are used and the industries capitalizing on their functionality.

Offshore Oil and Gas Industry

In the offshore oil and gas sector, the importance of reliable subsea operations cannot be overstated. From real-time data transmission of drilling parameters to vital power supply for machinery, subsea cable reel slip rings are pivotal. They facilitate the seamless flow of power and data between topside equipment on the sea-surface vessel and the subsea apparatus such as Remotely Operated Vehicles (ROVs) or Seafloor Production Equipment (SPE), enabling successful exploration endeavors or maintenance missions.

Undersea Telecommunications

The undersea telecommunications industry relies heavily on subsea cables for global data transfer, making subsea slip rings a crucial player in the managing of these cables. Cable-laying vessels, for instance, utilize slip rings on their cable reels to maintain continuous power and signal flow, hence ensuring that they successfully deploy these telecommunication lifelines at sea.

Renewable Energy Industries

In the rapidly growing offshore wind energy sector, subsea cable reel slip rings find essential use. Besides their role in cable laying vessels, they also see use within the turbine nacelles where they allow the rotary movement of turbine arms without interference in power generation or data transmission from sensors. They also play essential roles in tidal and wave energy systems that involve underwater cabling for electricity transmission.

Research and Survey

Various oceanic research initiatives and surveying endeavors rely on subsea operations that incorporate ROVs, towed sensors, or underwater communication devices. These missions demand stable, high-quality data transmission and robust power supply relayed via subsea cables; hence subsea slip rings become an indispensable cog in these enterprises.

Naval and Defense

From underwater surveillance systems to intricate weapon systems, the naval and defense sector leverages the functionalities of subsea cable reel slip rings. Especially in ROVs or towed sonar systems, slip rings enable the flow of power and signals, making missions successful.

Across all these industries and applications, it is clear that subsea cable reel slip rings play a decisive role in facilitating effective connections underneath the water. By understanding their function and applications, individuals can better appreciate the profound impact of these seemingly simple components on an array of technological fields and maritime undertakings. Up next, let’s turn our spotlight towards the vital aspects of installing and maintaining these slip rings, which are key to ensuring their optimal service life and performance.

Subsea Cable Reel Slip Ring Installation and Maintenance

To ensure the optimal performance and longevity of a subsea cable reel slip ring, meticulous attention to its installation and ongoing maintenance is critical. In this section, we’ll outline a generalized guide for the installation process and address key maintenance practices.


Please note that installation instructions may differ depending on manufacturer specifications and slip ring design. Always consult the manufacturer’s documentation for precise instructions.

Step 1: Inspect the Slip Ring

Upon receiving the subsea slip ring, start by conducting a thorough inspection of the unit. Check for any signs of damage or missing components. Verify that everything complies with the technical documentation provided by the manufacturer. Should any discrepancies arise, contact the manufacturer before proceeding.

Step 2: Prepare the Slip Ring and Equipment

Ensure that the slip ring’s mounting surface and the equipment it will be connected to are clean, undamaged, and free from debris. Confirm that the cable ends and connectors are compatible with your slip ring and equipment.

Step 3: Position the Slip Ring

Place the slip ring in the designated mounting bracket or location on your machinery. Align the stator (the stationary side) with the stationary component of your system. Similarly, align the rotor (the rotating side) with the rotating machinery part, typically the cable reel.

Step 4: Secure the Slip Ring

Fasten the slip ring to its mounting by employing the recommended hardware and tools provided by the manufacturer. Ensure that the alignment remains consistent throughout the tightening process to prevent distortion or misalignment, which may impair functionality.

Step 5: Connect the Cables

Connect the relevant cables to the slip ring’s stator connectors, which could include power cables, communication cables, or sensor cables. On the rotor side, connect the cables leading to the rotating subsystem, such as electrical connectors on the cable reel. Ensure that all connectors are appropriately tightened and secured to prevent disconnection during operation.

Step 6: Test the Installation

Before commissioning the equipment for full operation, conduct a test run to verify the proper functioning of the subsea slip ring. Check for smooth rotations of the reel, uninterrupted power and signal transmission, and any unexpected noise or vibrations. If any issues are identified, troubleshoot and resolve them before proceeding to full operation.


Routine and preventative maintenance practices are crucial for prolonging the subsea slip ring’s operational lifespan and ensuring optimal performance.

Periodic Inspection

Regularly inspect the slip ring for visible signs of wear, damage, or corrosion. Check the brush assembly and rings for adequate electrical contact, wear patterns, or residue buildup. Verify that all connections are tight and free from oxidation and abrasions.

Brush Replacement

Over time, brushes will wear down, potentially leading to poor electrical contact if not replaced. Adhere to the manufacturer’s guidelines for brush replacement intervals or establish a routine based on observed usage patterns and wear rates.


Some slip rings require lubrication to maintain smooth operation and minimize wear. Consult the manufacturer’s specifications for the recommended type and application intervals for lubricants.


Occasionally, cleaning may be necessary to remove accumulated residue or debris from the slip ring’s components. Use manufacturer-approved cleaning solutions and methods to prevent damage or electrical anomalies.


Maintain detailed records of inspections, maintenance, and component replacements. This documentation aids in identifying patterns and ensuring timely interventions, consequently preempting failures and minimizing downtime.

In conclusion, by following proper installation and maintenance practices, subsea cable reel slip rings can be entrusted with playing a critical role in ensuring seamless underwater operations across multiple industries.

Subsea Cable Reel Slip Ring Problems and Troubleshooting

Even meticulously installed and maintained subsea cable reel slip rings can encounter issues, often due to the challenging maritime environment they operate in. However, being aware of common problems and gaining knowledge of essential troubleshooting techniques can help mitigate these issues, minimize downtime, and maintain operational efficiency.

Common Problems

Electrical Noise

Electrical noise can cause irregular signals, inaccurate data transmission, or even intermittent power supply. This noise can typically be attributed to worn-out brushes or rings, a buildup of debris or dust between the brushes and rings, or inadequate grounding.

Uneven Wear of Brushes or Rings

Uneven wear patterns can lead to a loss of contact between brushes and rings, impeding smooth electrical transmission. Possible causes include misalignment during installation, thermal expansion causing distortion, or abrasive contaminants entering the slip ring assembly.

Corrosion or Oxidation

In the marine environment, components exposed to seawater or high humidity are likely to succumb to corrosion or oxidation. This can result in poor connectivity, distorted signals, or even a complete loss of functionality.

Mechanical Vibration or Noise

Normally, slip rings operate smoothly and relatively silently. However, excessive mechanical vibration or noise can signal issues with alignment, wear, or insufficient lubrication.

Troubleshooting Techniques

Inspect the Brushes and Rings

Visually inspect the brushes and rings for uneven wear, damage, or debris buildup. If you observe uneven wear patterns, consider checking for misalignment or thermal distortions during operation. Clean brushes and rings, if necessary, as advised by the manufacturer, to eliminate any debris or dust.

Check the Grounding

Ensure grounding components are clean, free from corrosion, and properly connected to establish a reliable ground connection. Bad ground can contribute to intermittent signals or electrical noise.

Examine for Corrosion and Oxidation

Inspect slip ring components for signs of corrosion or oxidation, particularly at electrical connections. Corroded or oxidized parts should be cleaned or replaced to restore proper electrical connectivity.

Lubricate the Slip Ring Assembly

Refer to the manufacturer’s guidelines for the lubrication requirements of your specific slip ring. Apply the recommended lubricant at appropriate intervals to reduce friction, vibration, and wear.

Align and Balance

Confirm your slip ring is properly aligned and balanced during installation and routine inspections. Address misalignment issues or component imbalances to reduce mechanical vibration or noise during operation.

Seek Technical Support

In case of persistent issues or problems beyond your technical expertise, do not hesitate to contact the slip ring manufacturer or a qualified technician for assistance and expert solutions.

In summary, a working knowledge of typical problems and the ability to apply troubleshooting techniques can go a long way in maintaining the performance and functionality of a subsea cable reel slip ring. Being proactive in problem detection and resolution will further ensure the continued smooth operation of your underwater machinery and systems.

Subsea Cable Reel Slip Ring Safety Precautions

The operation, installation, and maintenance of subsea cable reel slip rings inherently entail certain risks and potential hazards. These threats must be identified and managed to ensure the safety of personnel and equipment. This section outlines the possible dangers and corresponding safety measures that should be incorporated into your standard operating procedures.

Possible Dangers and Risks

Electrical Hazards

Slip rings conduct electricity and, if handled improperly, can cause electric shock to personnel or damage to equipment.

Mechanical Injuries

Rotating machinery, such as cable reels and slip ring assemblies, can cause injuries resulting from entanglement, pinching, or crushing accidents.

Chemical Hazards

Lubricants, cleaning agents, and other chemicals used during slip ring maintenance may pose health risks or environmental hazards if not managed correctly.

Falling Objects

During installation or maintenance, there is a potential risk of dropped tools or equipment, causing injury or damage.

Safety Measures

Follow Manufacturer Instructions

Always adhere to the manufacturer’s guidelines and recommendations regarding installation, operation, and maintenance to minimize the likelihood of accidents or equipment damage.

Personal Protective Equipment (PPE)

Ensure that personnel wear appropriate PPE, including safety glasses, gloves, and other necessary equipment to minimize injury risks during installation, operation, and maintenance tasks.

Lockout/Tagout Procedures

Implement lockout/tagout procedures to isolate the power supply and control access during installation or maintenance. This prevents unexpected energizing, start-up, or release of stored energy while working on the slip ring assembly.

Proper Training

Ensure that all personnel working with or around subsea cable reel slip rings have undergone adequate training to understand correct handling, hazard identification, and safe work practices.

Regular Inspections

Conduct regular inspections and assessments of slip ring assembly, electrical connections, and related equipment to spot potential risks early and perform necessary mitigation actions.

Chemical Safety

Store, handle, and dispose of chemicals used for cleaning or maintenance in accordance with the manufacturer’s guidelines and applicable safety regulations.

Tool Handling

Secure or tether tools and equipment during installation or maintenance tasks to prevent dropping or falling objects. Maintain a clean and organized workspace to minimize hazards.

Emergency Preparedness

Develop and practice emergency response plans, including first-aid, fire safety, and environmental spill containment, to ensure proper actions are taken in the event of an incident.

In conclusion, addressing possible dangers and implementing a robust safety precaution plan can minimize risks and protect personnel and equipment while working with subsea cable reel slip rings. By cultivating a culture of safety and vigilance, organizations can enhance operational success without compromising on safety standards.

Subsea Cable Reel Slip Ring Future Advancements & Trends

The world of subsea cable reel slip rings, like many technological fields, is marked by continuous innovation and shift. As demands in the marine, offshore, and subsea industries evolve and our understanding of these environments deepens, so too do the technologies designed to function within them. This section highlights the latest advancements and emerging trends that professionals should keep an eye on.


Enhanced Materials

Recent developments in material science have led to the creation of more robust, corrosion-resistant, and wear-resistant materials. These new materials can significantly increase the operational lifespan of subsea slip rings, reducing maintenance efforts and downtime.

Improved Signal Integrity

Times have seen a focus on improving signal integrity within subsea slip rings, allowing for clearer and more stable transmission of data. This enables more accurate control and monitoring of subsea systems and equipment.

Integrated Designs

There is an increasing trend toward integrating slip rings with other crucial components like rotary joints for fluid or gas transmission. These integrated units reduce overall system complexity and maintenance requirements.


Renewable Energy Applications

With the growing emphasis on renewable energy resources, subsea slip rings are finding new applications in offshore wind, wave, and tidal energy systems. The demand for slip rings capable of operating in these challenging environments is set to rise.

Digitalization and IoT

Advancements in digitalization and Internet of Things (IoT) technologies are directly impacting the subsea slip ring market. The emergence of smart slip rings, featuring built-in sensors and IoT connectivity, allows for remote monitoring, predictive maintenance, and the collection of operational data to improve performance.


Automation within the marine and offshore sectors is another growing trend, driving demand for high-performance slip rings. Robotic systems, autonomic underwater vehicles, and automated drilling operations all rely on slip rings for power and signal transfer, thus, the need for slip rings capable of delivering stable, high-speed data transmission under extreme conditions is increasing.

To sum up, the landscape of subsea cable reel slip rings is continually evolving, driven by advancements in underlying technologies and changing industry needs and trends. Staying updated on these changes is vital for professionals to stay competitive and leverage new solutions for operational efficiency improvements.


This guide has provided a comprehensive overview of subsea cable reel slip rings, exploring their essential aspects such as installation, operation, maintenance, troubleshooting, safety precautions, and future advancements. We emphasized the importance of following manufacturer instructions, maintaining routine checks, adhering to safety guidelines, and staying updated with advances in this evolving technology to ensure optimal performance and longevity of marine systems.

To conclude, a solid understanding and a proactive approach are key to maximizing the operational efficiency of your subsea cable reel slip rings. The insights shared in this guide serve as a foundation for professionals seeking to navigate the challenges and opportunities in the world of subsea slip ring technology.

FAQs about Subsea Cable Reel Slip Rings

Often, when discussing complex technological components like subsea cable reel slip rings, even with comprehensive guides and manuals, specific queries might arise. These Frequently Asked Questions (FAQs) address some common inquiries about subsea cable reel slip rings, aiming to provide a deeper understanding to users, engineers, or even curious minds.

Q: Where are subsea cable reel slip rings typically used?

A: Subsea cable reel slip rings are typically used in a variety of underwater systems requiring rotational power or data transmission, including ROVs (Remotely Operated Vehicles), AUVs (Autonomous Underwater Vehicles), seismic exploration devices, underwater cameras, and sonar systems.

Q: How do I maintain a subsea slip ring?

A: Regular maintenance typically involves cleaning the slip rings and brushes, lubrication, checking for wear and tear, and ensuring that the slip ring unit is appropriately aligned. While maintenance specifics might vary depending on the manufacturer’s instructions, it is critical to perform regular checks to maintain optimal performance.

Q: What safety precautions should I take when working with a subsea slip ring?

A: When working with subsea slip rings, you should wear appropriate personal protective equipment, follow the manufacturer’s instructions and lockout-tagout procedures, and ensure that workers are adequately trained to handle these devices safely.

Q: What are the recent advancements in subsea slip ring technology?

A: The field is seeing exciting advances in regard to corrosion-resistant materials, better signal integrity, and integrated designs. Trends in renewable energy, IoT, and automation are further driving innovation in slip ring technology.

In conclusion, understanding these FAQs about subsea cable reel slip rings helps one gain practical insights, clear away common doubts, and navigate its operation more effectively.
