Large Diameter Slip Ring

Due to the utmost effort of human nature, many things have been made possible, which were one a dream. Because of the undying love for curiosity, mankind has seen technological advancement, which looks like a myth. How far have humans progressed? Is our life more comfortable than before? Are we more developed now? While talking about development, the human eye has seen various developments and advancements in the industry and technology. A slip ring is one of the most advanced innovations and manifestations that have not only proven advantageous for humans but has increased overall productivity too. Back in time, things were done more mechanically, but then an era of technology came and hit everything. Through-hole slip rings are generally more convenient than normal slip rings.

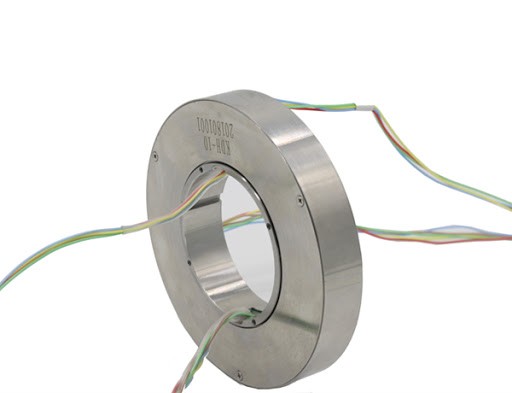

What is a Through-hole Slip Ring?

Normal slip rings are electromechanical devices that are used to transmit electric voltages from the static part to the rotational part, while through through-hole slip ring is a kind of slip ring that has a hole in its central part. This is a truly amazing gadget. Numerous devices use this to perform specific functions. Therefore, these are becoming increasingly popular in the field of mechanical engineering as well as heavy-duty manufacturers.

How Does it Work?

The basics of this slip ring are the same as a normal slip ring, but there is an integral difference in both of these.  A general slip ring comprises two components, one is static while the other is moving. The inherent difference between both of these is that the through-hole slip ring has a vacant space inside it. The basic structure of the through-hole slip ring is not tangled, and the material used for conduction is joined outwardly on the dimension plate and metallic rings on the post. On the other hand, there is another difference. The weight and the overall volume are also different, which is dependent upon the application and usage of slip rings.

Feature of Through-hole Slip Rings

Besides being vacant from the inside, the through-hole slip ring has many more features that make it distinguishable from the other models of high-current slip rings. Here are some of the unique features that other models of slip rings are not offering. It has advanced multi-brush technology, which makes sure that there is no friction, and the electric current remains constant even if there is a drop in voltage. Because through hole slip ring is constructed by metal housing and integrated structure design, the unit production gets better. It has an easy installation process. Due to the advancement in technology, the through-hole slip ring can carry current from 0 to 20a in nano-seconds and give support up to 300 circuits. The standard voltage can change from 0 to 600 vac/VDC. Its standard models have a specific circuit number. Although the basic purpose of designing through-hole slip rings was to provide service to devices that demand a 360-degree rotation not all of them through-hole slip rings can do so. That is why it is advised to at least inspect the item before buying it.

Types of Through-hole Slip Rings

Although there is no definite type of through-hole slip ring, by having a quick look and closely examining these slip rings, you will know that these devices differ from one another due to various aspects. All of these devices are different from one another based on size, shape, volume, carrying capacity, supporting capabilities, total output, and productivity. One can easily divide these through hole slip rings according to the current housing, capacity, and technology. Since it is known that the demand for factory-made slip rings is relatively low, that is why most offers are for custom-made items.

THSR Usage and Maintenance

Other than using through-hole slip rings in heavy machinery and underwater, there are many other places in which these are used. If all you need us new through-hole slip rings to replace the machinery parts that are old and rusty or if you are looking for an alternative to remove the damaged parts from the machinery, you can find the exact specifications for the item you have been looking for. All you have to do is look for replacement models that encompass better-featured products that have better capabilities. It is always recommended to look for better options than settling for a cheap product. Conduct market research before buying any kind of slip ring. Likewise, if you are looking forward to installing them through a hole slip ring, stick to the guidelines issued by the company or take the help of a professional who will help you in installing your new through-the-hole slip ring. Anyway, it is recommended to always maintain the through-hole slip ring as per the following.

  • Choose a better model for your usage
  • Do a clean installation
  • Monitor the usage of slip rings at all costs


Concluding all of this and choosing what to buy from these is dependent upon your needs. It is dependent upon what you are trying to do with it. Through-hole slip rings are required for applications that are unique and can’t use simple slip rings. To find the right product that fulfills your demand, you must inform your vendors about the type of machine that you are going to use. Along with that, you need to provide them with instructions about the operating environment and the specific application. There are a variety of brands that are offering unique models, all made to fulfill your needs. Make sure that the type of product that you are ordering adheres to your needs and fulfills your demand. Do not buy items from those companies that are offering local products, rather go for reputable brands. If you need your machines to stay alive for a long time, use the better quality through-the-hole slip ring and avoid the mess of tangled wires.
