Custom Wind Turbine Slip Ring Selection for Your Specific Needs

In the complex and dynamic world of wind energy, every component plays a crucial role in ensuring the efficiency, reliability, and longevity of wind turbines. Among these components, the slip ring stands out as a vital element that bridges the gap between rotating and stationary parts of the turbine. Slip rings are responsible for transmitting power, signals, and data across these moving interfaces, enabling seamless operation and real-time monitoring of the turbine’s performance. Whether it’s managing the high-voltage power required for energy generation or facilitating the intricate communication systems that keep the turbine running smoothly, the slip ring’s role is indispensable.

The selection of the right slip ring is not just a technical decision; it’s a strategic one. A well-chosen slip ring can significantly enhance the turbine’s operational efficiency, reduce maintenance costs, and extend its lifespan. Conversely, an ill-suited slip ring can lead to frequent breakdowns, increased downtime, and higher operational expenses. Given the harsh environmental conditions—ranging from extreme temperatures to corrosive saltwater exposure—that wind turbines often endure, the importance of selecting a slip ring that meets both electrical and mechanical demands cannot be overstated. This guide aims to provide a comprehensive overview of the key considerations, types, and features of wind turbine slip rings, helping you make an informed decision that optimizes your turbine’s performance and reliability.

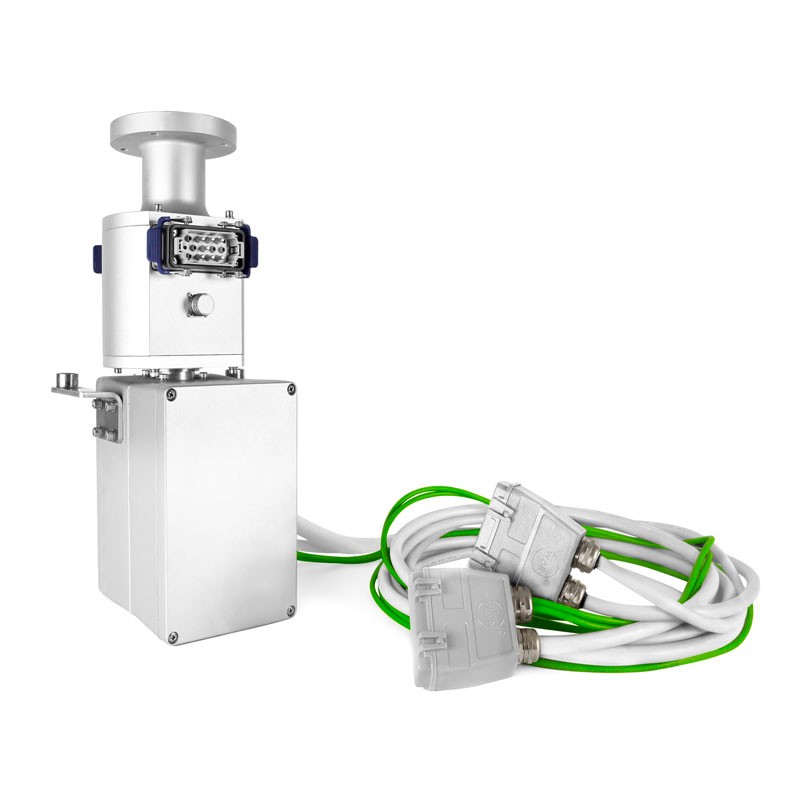

What is a Slip Ring in a Wind Turbine?

In a wind turbine, a slip ring is a critical component that facilitates the transfer of electrical power, signals, and data between the stationary and rotating parts of the system. Wind turbines consist of various moving parts, including the blades, rotor, and nacelle, which rotate to capture wind energy. As these components rotate, they must remain connected to the stationary parts of the turbine to ensure continuous operation and data flow.

This is where slip rings come into play. Slip rings are electromechanical devices that enable electrical connectivity between the rotating rotor and the stationary components. They do so by providing a continuous path for power transmission and signal exchange, without the need for physical, rotating wires that could break or wear out over time.

The primary functions of slip rings in wind turbines include:

1. Power Transmission:
   • Slip rings transfer electrical power from the stationary power source to the rotating blades and other parts, like the pitch and yaw systems. This ensures that the wind turbine can generate and control electricity efficiently while the rotor continues to turn.
2. Signal Transmission:
   • Modern wind turbines require various sensors and controls to optimize performance. Slip rings allow continuous transmission of signals (e.g., sensor data) between rotating blades and stationary control systems, ensuring that vital information like blade angle, rotational speed, and wind direction is relayed accurately.
3. Data Transmission:
   • In addition to power and signal, slip rings can also be used for high-speed data transmission, especially in more advanced turbines equipped with Ethernet and fiber optic systems. These systems provide real-time performance monitoring, remote diagnostics, and efficient data logging.

Without a slip ring, the mechanical structure of the turbine would require a much more complex setup of rotating wires or cables, which could lead to frequent failures due to wear and tear. Slip rings allow for smooth, continuous power and data transmission, crucial for maintaining the overall health and functionality of the turbine.

Why Proper Selection Matters

Selecting the right slip ring for a wind turbine is crucial for several reasons, as it directly impacts the efficiency, lifespan, and operational costs of the turbine. Below are some key points to emphasize why making an informed selection is essential:

Efficiency and Performance

• Optimal Functionality: Choosing a slip ring that matches the specific power and data requirements of the wind turbine ensures that the system operates smoothly. If the slip ring’s electrical ratings (voltage, current) are not suitable for the turbine’s requirements, it could lead to inefficient energy transfer or even equipment failure.
• Signal Integrity: A well-chosen slip ring ensures high-quality signal transmission without interference, which is particularly important for systems relying on real-time data (e.g., blade pitch control, wind speed sensors). Poor signal transmission can cause malfunctions or incorrect readings, leading to decreased turbine performance.

Lifespan and Reliability

• Durability: Wind turbines often operate in harsh environments—offshore locations with saltwater, extreme weather, or high altitudes. Slip rings need to be designed for such conditions to ensure longevity. Poorly selected slip rings may wear out quickly due to environmental exposure, resulting in frequent repairs or replacements.
• Maintenance Requirements: The right slip ring can minimize wear and tear, reducing the need for maintenance. High-quality slip rings, such as gold-to-gold contact slip rings, are designed to handle continuous rotation without degrading, which reduces downtime and enhances the turbine’s overall lifespan.

Operational Costs

• Lower Downtime: Choosing a slip ring that is suited to the turbine’s requirements helps minimize unexpected failures. A slip ring that is too small, underpowered, or not rated for the environmental conditions could lead to system breakdowns, resulting in costly downtime and maintenance.
• Cost Efficiency: Although high-quality, specialized slip rings (e.g., high voltage or fiber optic slip rings) may have a higher initial cost, their extended lifespan and reduced maintenance needs lead to long-term savings. In contrast, choosing cheaper or incorrect slip rings could result in higher operational costs over time due to frequent repairs or system inefficiencies.

Customization for Specific Needs

• Each wind turbine model might have different technical specifications. Choosing the correct slip ring means considering not only power ratings but also environmental factors like temperature, moisture, and corrosive elements. For example, waterproof slip rings are necessary for offshore wind turbines to prevent damage from exposure to saltwater, while high-temperature slip rings may be required for turbines located in regions with extreme heat.
• Additionally, if the wind turbine uses advanced control systems or requires high-speed data transmission, integrating fiber optic rotary joints or data slip rings becomes critical for maintaining seamless communication and operation.

In summary, the selection of the right slip ring for a wind turbine is a critical factor in ensuring that the turbine performs at its peak efficiency while maintaining reliability and minimizing operational costs. The wrong slip ring can lead to poor performance, reduced lifespan, and expensive maintenance. By choosing a slip ring that is compatible with the turbine’s electrical, environmental, and mechanical requirements, you ensure not only smooth operations but also long-term savings and operational success.

Key Considerations for Selecting Wind Turbine Slip Rings

When selecting slip rings for wind turbines, several crucial factors must be taken into account to ensure optimal performance, longevity, and reliability. Below are the key considerations for choosing the right slip ring based on electrical requirements, environmental resistance, and mechanical durability.

Electrical Requirements: Power and Signal Integrity

Voltage and Current Ratings

One of the first factors to consider when selecting a slip ring for a wind turbine is its voltage and current ratings. These ratings must match the turbine’s specific electrical demands to ensure safe and efficient operation.

• Voltage Requirements: Wind turbines typically operate at high voltages, sometimes up to 3,000 V, to effectively transfer power from the rotor to the grid. Selecting a slip ring with the appropriate voltage rating ensures that the system can handle high electrical loads without risk of failure or short circuits.

• Current Requirements: Wind turbines also require significant current capacity, sometimes reaching up to 2,080 A, depending on the turbine size and type. The slip ring must be capable of conducting high currents without overheating, which could lead to failures or power losses. If the current capacity is too low, the turbine’s overall power generation efficiency can be compromised. For smaller-scale or lower-capacity applications, a 20A high current slip ring can be used effectively to ensure reliable power transfer without the risk of overheating. While the 20A high current slip ring is designed for systems with lower current demands, it still plays a crucial role in maintaining power transmission efficiency. If the current capacity is too low, whether in wind turbines or other equipment, the overall power generation efficiency can be compromised, emphasizing the importance of selecting a slip ring with an appropriate current rating.

When choosing a slip ring, ensure that its voltage and current ratings meet or exceed the maximum operational requirements to prevent electrical damage or inefficiencies.

Signal Transmission

Wind turbines also rely on signal transmission for real-time monitoring and communication. The integration of data slip rings is essential for maintaining a constant flow of information between the rotating and stationary components.

• Ethernet Slip Rings: As wind turbines become increasingly integrated with smart systems, the demand for high-speed data transmission increases. Ethernet slip rings allow seamless transmission of large amounts of data from sensors, control systems, and monitoring devices.

• RS422 Slip Rings: For applications where high-speed communication is required between various sensors or control units, RS422 slip rings offer robust, noise-immune signal transmission, ensuring uninterrupted system monitoring.

Data slip rings are crucial for the real-time monitoring of turbine performance, which can help in predictive maintenance and optimizing turbine operation. Choosing the right slip ring ensures signal integrity and reliable communication between rotating blades and stationary systems.

Pitch Slip Ring & Rotary Slip Ring Considerations

In addition to power and signal, pitch slip rings and rotary slip rings play a vital role in the control systems of wind turbines.

• Pitch Control Systems: Pitch slip rings are used to transmit power and data to the blades’ pitch control mechanisms, adjusting the angle of the blades to optimize energy capture from the wind. Choosing a slip ring with sufficient capacity for this purpose is essential to maintaining control and efficiency.

• Yaw Control Systems: Rotary slip rings are used in yaw control systems to adjust the orientation of the turbine to face the wind. Proper selection of rotary slip rings ensures reliable performance in real-time turbine alignment with changing wind directions.

Both pitch and yaw systems rely on reliable slip rings for smooth and continuous operation, making them critical in maintaining optimal turbine performance.

Environmental Resistance

Wind turbines are often located in harsh environments, such as offshore or high-altitude locations, where they are exposed to extreme weather conditions. As a result, the slip rings must be chosen for their environmental resistance to ensure they can withstand these challenging conditions.

Weatherproofing and Durability

Weatherproofing is one of the most important aspects when selecting a slip ring for wind turbines. The slip ring must be able to resist environmental elements such as dust, water, and temperature fluctuations.

• IP65/IP68 Ratings: Slip rings designed with IP65 or IP68 ratings offer superior protection against water and dust ingress. These ratings are particularly important for offshore wind turbines, where the components are exposed to saltwater, rain, and harsh weather conditions.

• Waterproof Models: Waterproof slip rings prevent corrosion caused by exposure to moisture, which is critical in prolonging the life of the wind turbine and reducing maintenance costs.

Durability in extreme weather is essential for ensuring that the slip rings will operate continuously without failure, even in the most demanding environments.

Corrosion Resistance and High-Temperature Operation

Wind turbines located in coastal regions or offshore environments face exposure to saltwater, which can cause corrosion over time. Slip rings designed with corrosion-resistant materials—such as stainless steel or other specialized alloys—are essential for preventing degradation.

Additionally, some turbines are placed in areas with extreme temperatures, both hot and cold. Slip rings designed for high-temperature operation can withstand these conditions, ensuring reliable operation even in hot climates where standard slip rings may fail.

Mechanical Durability

The mechanical durability of slip rings is just as important as their electrical and environmental resistance. Wind turbines experience continuous rotation and mechanical stress, so selecting slip rings that can handle this long-term stress is essential for reliable operation.

Rotation and Stability

Wind turbine slip rings must maintain high rotational stability to avoid failures caused by mechanical fatigue. Key factors include:

• Low Torque: Slip rings should have low torque to ensure smooth operation with minimal resistance, reducing wear on the rotating parts.

• Rotational Stability: The slip ring’s ability to maintain a stable rotation over extended periods is crucial. This stability allows the slip ring to maintain uninterrupted power, signal, and data transmission even after millions of rotational cycles.

Slip rings designed for high rotational stability ensure that the turbine continues to operate smoothly, without disruptions due to mechanical issues.

Fatigue Resistance

Wind turbines face constant mechanical stress due to continuous rotation, high wind forces, and the weight of the turbine blades. Over time, this can lead to fatigue in the mechanical components.

• High-Speed and Specialized Slip Rings: Slip rings designed for high-speed operation or extreme mechanical stress, such as pancake slip rings or high-speed slip rings, are engineered to endure the constant wear and tear associated with turbine operation.

• Durability for 300 Million Cycles: Some slip rings, designed specifically for wind turbines, can withstand up to 300 million rotational cycles, which is crucial for ensuring the long-term durability of the turbine’s electrical and mechanical systems.

By selecting slip rings with fatigue resistance, you can minimize the risk of mechanical failure, thus extending the operational life of the turbine and reducing costly maintenance.

Selecting the right slip ring for a wind turbine requires careful consideration of multiple factors, including electrical requirements, environmental resistance, and mechanical durability. Choosing a slip ring that matches the turbine’s operational needs ensures efficient power and data transmission, reliable performance in harsh environments, and long-term durability in the face of mechanical stress. By addressing these key considerations, turbine operators can maximize performance, minimize downtime, and reduce overall operational costs.

Types of Slip Rings for Wind Turbines

Wind turbines come in various sizes and configurations, each with different operational needs. The choice of slip ring is crucial for ensuring that the electrical power, signals, and data flow efficiently between the rotating and stationary components of the turbine. Below are the different types of slip rings commonly used in wind turbines, each designed for specific applications and operational environments.

Through Hole Slip Ring

Key Benefits for Large Turbines with Large Shaft Openings

Through hole slip rings are designed with a central hole that allows them to be mounted around a rotating shaft, making them ideal for large wind turbines. These slip rings offer several advantages:

• Large Shaft Openings: The through-hole design allows for easy installation around large shafts, making it perfect for large wind turbines with larger nacelle and hub components.
• High Current and Voltage Capacity: Through hole slip rings are designed to handle high voltage and current, which is essential for large turbines that generate significant amounts of power.
• Durability: With robust construction, these slip rings can handle the constant rotation and harsh environmental conditions, ensuring long-term reliability and performance.

Applications:

• Large offshore or onshore wind turbines
• Heavy-duty power transmission for pitch and yaw control systems

Capsule Slip Ring

Ideal for Smaller, More Compact Wind Turbine Systems

Capsule slip rings are designed for compact and lightweight applications. These slip rings offer the following benefits:

• Space Efficiency: Capsule slip rings are compact and ideal for turbines with space constraints, especially smaller or mid-sized wind turbines.
• Ease of Integration: Their small size makes them easy to integrate into smaller turbines or systems where space is at a premium, such as vertical-axis wind turbines or smaller horizontal-axis turbines.
• Cost-Effectiveness: Capsule slip rings are more cost-effective for smaller systems compared to larger, more complex designs.

Applications:

• Small-scale onshore wind turbines
• Compact turbines in rural or residential areas

Miniature Slip Rings

Perfect for Tight Spaces and Small Wind Turbines

Miniature slip rings are specially designed for systems where space is very limited, and lightweight solutions are required. These slip rings offer the following features:

• Compact Size: Their small form factor makes them ideal for turbines in tight spaces, such as those with smaller rotor assemblies or smaller-scale designs.
• Low Torque Resistance: Miniature slip rings are engineered to operate with minimal rotational resistance, which is ideal for turbines with smaller blades or low-power requirements.
• Reliability in Small Applications: Despite their small size, these slip rings maintain high electrical and mechanical reliability.

Applications:

• Small residential wind turbines
• Applications requiring low power and minimal space

Ethernet Slip Rings

For Advanced Data Transmission and Integration into Smart Turbine Systems

With the increasing use of digital and smart turbine technologies, Ethernet slip rings have become essential for ensuring reliable data transfer. These slip rings offer the following benefits:

• High-Speed Data Transmission: Ethernet slip rings allow for real-time data communication between rotating blades and stationary systems, ensuring efficient turbine monitoring and performance optimization.
• Seamless Integration: They are compatible with modern turbine control systems and allow for smooth integration into advanced smart turbine technologies that use sensors, remote diagnostics, and performance analytics.
• High Bandwidth Support: Ethernet slip rings can handle high-bandwidth data streams, which is important for transmitting large volumes of data between systems.

Applications:

• Smart wind turbines with IoT capabilities
• Real-time performance monitoring and predictive maintenance

Specialized Slip Rings

Specialized slip rings are designed for turbines operating in extreme environments or requiring specialized capabilities. Below are some of the most common types:

High Voltage/High Current Slip Rings

• Critical for Handling High Power Needs: These slip rings are engineered to handle high voltage and current requirements typical of large wind turbines. Wind turbines with high power output need slip rings that can handle significant electrical loads without overheating or failing.
• Applications: These slip rings are essential for large-scale wind turbines, especially those used in offshore farms where power generation is high and continuous operation is required.

Waterproof Slip Rings

• Ideal for Offshore or Harsh Weather Conditions: Waterproof slip rings are crucial for wind turbines located in offshore environments, where exposure to saltwater, rain, and moisture is constant. These slip rings are designed to be fully sealed, protecting the internal components from corrosion and water damage.
• Corrosion Resistance: In addition to waterproofing, these slip rings are made from corrosion-resistant materials, ensuring long-term durability in salty and humid conditions.
• Applications: Offshore wind turbines, turbines in coastal or high-moisture environments.

Military Slip Rings

• Custom Solutions for Defense Applications in Turbines: Military slip rings are specially designed for turbines used in defense applications, where stringent requirements for performance, reliability, and security are essential.
• Advanced Durability: These slip rings are built to withstand extreme conditions, including high shock, vibration, and exposure to hazardous materials, making them perfect for military-grade wind turbines or emergency backup turbines used in critical infrastructure.
• Applications: Military and defense-related wind energy systems, emergency power generation in remote areas.

Selecting the right type of slip ring is crucial for ensuring that a wind turbine performs at its optimal level. The type of slip ring chosen should match the size, power, environmental conditions, and data transmission needs of the turbine. Whether it’s a through hole slip ring for large turbines, a miniature slip ring for smaller turbines, or a waterproof slip ring for offshore applications, the right slip ring can significantly impact the turbine’s performance, lifespan, and maintenance costs. By understanding the specific needs of each turbine system, operators can choose the appropriate slip ring to maximize operational efficiency and reliability.

Top Features to Look for in Wind Turbine Slip Rings

When selecting slip rings for wind turbines, it’s important to consider various features that ensure reliability, efficiency, and longevity. Below are some of the top features to look for, especially in the context of high-performance turbine applications. These features are designed to optimize operational efficiency, minimize maintenance, and extend the lifespan of both the slip ring and the turbine.

Modular Design and Scalability

Flexibility for Various Turbine Sizes and Operational Needs

A modular design is one of the most important features when selecting slip rings for wind turbines. Modular slip rings provide flexibility, making them adaptable to different turbine sizes and configurations. Whether you’re working with small-scale turbines or large offshore units, a modular design can be tailored to meet specific needs.

• Scalability: With modular designs, wind turbine operators can easily scale their systems. For instance, as turbine systems become more sophisticated or increase in size, a modular slip ring can be upgraded or expanded to handle higher electrical loads or additional data transmission.

• Customization: Modular slip rings allow for customization of power, data, and even fluid transmission circuits, depending on the unique requirements of each wind turbine model. This adaptability is particularly important as turbines evolve with new technologies or upgraded systems.

Grand Slip Rings offers modular slip ring designs that are perfect for both small and large turbines, providing the flexibility needed to handle varying operational environments. This scalability ensures that as your wind turbine system grows, the slip ring can easily be adapted to accommodate the increased power, data, and control requirements.

Advanced Contact Materials

Gold-to-Gold Contact Interfaces to Reduce Wear and Increase Lifespan

The quality of the contact materials in a slip ring is vital for minimizing wear and ensuring the system operates reliably for extended periods. Using advanced contact materials like gold-to-gold contact interfaces significantly improves the performance of slip rings in wind turbines.

• Reduced Wear and Tear: Gold contacts are highly durable and resistant to oxidation, making them ideal for wind turbines that are subjected to constant motion and environmental stress. Gold-to-gold interfaces provide low resistance and excellent conductivity, reducing the chances of contact degradation over time.

• Extended Lifespan: Slip rings with advanced contact materials like gold ensure a longer service life, which is crucial for minimizing downtime and maintenance costs. Since gold is highly resistant to corrosion, it ensures stable performance even in harsh environments like offshore wind farms, where moisture and saltwater can quickly degrade other materials.

• Stable Performance: Gold-to-gold contact interfaces also contribute to better signal integrity, which is essential for data transmission in modern wind turbines that rely on real-time performance monitoring and remote diagnostics.

Grand Slip Rings incorporates advanced gold-to-gold contact technology in its designs, ensuring minimal wear and reduced maintenance, which contributes to a longer operational lifespan for turbines.

Maintenance-Free Operation

Minimizing Maintenance Requirements and Reducing Downtime

Wind turbine systems require constant operation to maximize energy generation, so minimizing downtime and maintenance needs is crucial. A maintenance-free operation is a standout feature of high-quality slip rings, and it can drastically reduce both operational costs and time spent on repairs.

• Self-Cleaning Mechanism: Some slip rings are designed with self-cleaning features that prevent the accumulation of dust, debris, and other contaminants. This helps reduce the frequency of cleaning and maintenance interventions.

• Long-Term Durability: Slip rings with low wear materials like gold-to-gold interfaces, as well as sealed designs that prevent moisture ingress, are designed to operate smoothly without the need for frequent maintenance. These features are especially important for offshore and remote wind turbines where access for repairs is challenging and costly.

• Minimized Downtime: By opting for designs like the Ethernet slip rings and miniature slip rings offered by Grand Slip Rings, turbine operators can ensure continuous operation with minimal interruption. These slip rings are specifically designed for reduced maintenance needs, ensuring smooth operation even in harsh conditions.

Grand Slip Rings provides Ethernet and Miniature Slip Rings that are engineered for maintenance-free operation, making them ideal for both small and large-scale turbines. These designs are particularly effective in minimizing downtime, reducing maintenance efforts, and enhancing turbine availability.

When selecting slip rings for wind turbines, it’s essential to focus on features like modular design, advanced contact materials, and maintenance-free operation. These features are key to ensuring optimal turbine performance, reducing operational costs, and extending the lifespan of the turbine.

Grand Slip Rings stands out by offering modular designs that provide flexibility for various turbine sizes, gold-to-gold contact materials that reduce wear, and maintenance-free solutions that minimize downtime. By focusing on these critical features, turbine operators can maximize efficiency, reduce maintenance costs, and ensure the long-term reliability of their wind turbine systems.

The Role of Predictive Maintenance in Wind Turbine Slip Ring Performance

Predictive maintenance is a crucial strategy in the management of wind turbines, ensuring that components like slip rings perform optimally while minimizing unexpected failures. By leveraging predictive techniques, operators can reduce downtime, optimize maintenance schedules, and extend the lifespan of critical turbine components, such as slip rings. Below, we explore the role of predictive maintenance in enhancing wind turbine slip ring performance and ensuring continuous, efficient operation.

Reducing Downtime with Regular Inspections

The Importance of Inspecting Components Like Carbon Brushes and Insulation Resistance

Regular inspections are a cornerstone of predictive maintenance strategies for wind turbines. Components like carbon brushes and insulation resistance are particularly vulnerable to wear and degradation over time. Early detection of potential issues can help mitigate costly failures and extend the service life of the slip ring.

• Carbon Brushes: In wind turbine slip rings, carbon brushes make physical contact with the slip ring’s rotating components to facilitate the flow of electrical power and signals. Over time, these brushes wear down due to friction, leading to potential power transmission issues, increased electrical resistance, or signal interruptions. Regular inspections of the carbon brushes allow technicians to assess wear levels and replace them before they cause significant damage.

• Insulation Resistance: The insulation that separates electrical components in a slip ring system is crucial for preventing short circuits and maintaining safety. Over time, exposure to high humidity, saltwater (in offshore applications), or extreme temperatures can degrade insulation materials. Routine checks of insulation resistance can detect issues early, preventing electrical faults that could lead to turbine downtime.

By performing routine inspections of these critical components, turbine operators can catch early signs of wear or degradation, allowing for proactive repairs or replacements. This proactive approach helps prevent unexpected system failures and avoids the costly downtime associated with emergency repairs.

Simulation Methods: Predicting Failures and Optimizing Maintenance Schedules

Using Monte Carlo Analysis to Predict Potential Failures

One of the most effective tools in predictive maintenance for wind turbines is simulation-based analysis. Techniques such as Monte Carlo simulation are increasingly being used to predict potential failures and optimize maintenance schedules for critical components like slip rings.

• Monte Carlo Simulation: This technique uses statistical methods to simulate a wide range of possible outcomes based on varying input parameters. By modeling factors such as wear rates, environmental conditions, and operating hours, Monte Carlo analysis helps predict the likelihood of failures over time. This predictive capability allows turbine operators to forecast when certain slip ring components, such as carbon brushes or insulation materials, are likely to need replacement or maintenance, based on real-world operating conditions.

• Optimizing Maintenance Schedules: Using Monte Carlo simulations, operators can develop optimized maintenance schedules that balance turbine uptime with the need for maintenance. Instead of performing routine checks based on arbitrary intervals, maintenance can be scheduled based on the predicted failure probabilities, allowing for more efficient use of time and resources. This reduces the need for unnecessary inspections and minimizes the chances of unplanned downtime.

Monte Carlo simulations can also help identify failure hotspots or patterns, enabling the development of tailored maintenance strategies that account for specific turbine environments or operational conditions. For example, turbines located in offshore wind farms might experience higher corrosion rates or harsher operating conditions, and simulations can highlight when these factors will necessitate maintenance interventions.

Benefits of Predictive Maintenance in Wind Turbine Slip Ring Systems

By implementing predictive maintenance strategies, wind turbine operators can experience several key benefits:

• Reduced Downtime: Predictive maintenance allows operators to address potential issues before they cause major breakdowns, resulting in reduced turbine downtime and increased energy production.
• Cost Savings: By avoiding emergency repairs and unnecessary inspections, predictive maintenance reduces overall maintenance costs. Operators can perform maintenance only when needed, avoiding the high costs associated with emergency fixes.
• Increased Lifespan: Regular monitoring and timely repairs or replacements help extend the lifespan of slip rings and other turbine components. This reduces the need for frequent replacements and increases the overall longevity of the turbine system.
• Enhanced Performance: By ensuring that all components, including slip rings, are operating at peak performance, predictive maintenance helps maximize turbine efficiency and optimize energy generation.

Predictive maintenance plays a vital role in ensuring the efficient performance of wind turbine slip rings. By integrating regular inspections—especially of critical components like carbon brushes and insulation resistance—and using simulation methods like Monte Carlo analysis to predict potential failures, turbine operators can significantly reduce downtime and maintenance costs. Predictive maintenance not only enhances the reliability and performance of the turbine but also contributes to long-term operational efficiency, making it an indispensable strategy for modern wind turbine management.

Slip Ring Manufacturers and Offerings

When it comes to selecting the right slip ring for wind turbines, several manufacturers offer a variety of solutions designed to meet the specific needs of turbine systems. Among these, Grand Slip Rings stands out as a leading provider with a comprehensive range of slip rings and rotary joints, tailored to suit various turbine models and operational conditions.

Grand Slip Rings

A Range of Products for Wind Turbine Systems

Grand Slip Rings is renowned for its innovative and high-performance slip rings, which are designed to meet the diverse needs of the wind energy sector. Our company’s offerings include:

• Rotary Slip Rings: Grand Slip Rings’ rotary slip rings provide reliable power, signal, and data transmission between rotating and stationary components. These are designed for wind turbines where reliable power transfer is crucial for pitch control, yaw systems, and sensor data communication.

  • Features:
    • High durability for long-lasting performance
    • High current and voltage capacity
    • Capable of handling multiple circuits for power and data transmission
    • Available in various sizes for different turbine models

• Fiber Optic Rotary Joints (FORJ): For turbines that require advanced data transmission capabilities, Fiber Optic Rotary Joints (FORJ) are ideal. These slip rings provide high-speed, low-loss data transfer, essential for modern smart turbines equipped with advanced sensors and remote monitoring systems.

  • Features:
    • Superior data transmission rates with minimal signal loss
    • Perfect for offshore and onshore turbines requiring high-bandwidth communication
    • Resistant to electromagnetic interference (EMI), ensuring signal integrity in complex systems

• Customized Solutions: Grand Slip Rings offers customized slip ring solutions tailored to specific turbine requirements. Whether it’s a unique operational environment, such as extreme temperatures or corrosive offshore conditions, or a need for multi-channel slip rings, Grand Slip Rings can design bespoke solutions that meet the precise needs of each turbine model.

  • Features:
    • Custom designs for specific turbine applications
    • Solutions for high-power, high-speed, and high-voltage applications
    • Tailored to meet environmental standards, such as IP65/IP68 for weatherproofing

These products are engineered to offer reliability, long lifespan, and maintenance-free operation, making them highly suitable for wind turbines operating in harsh environments, such as offshore wind farms.

Comparison of Grand Slip Rings to Other Manufacturers

While each manufacturer offers specialized solutions, Grand Slip Rings distinguishes itself in several key areas:

1. Reliability: Grand Slip Rings’ designs prioritize low maintenance and long lifespan, making us ideal for turbines in remote or offshore locations, where downtime can be costly. Our products are built with gold-to-gold contact interfaces and advanced sealing technologies, ensuring reliability in harsh environmental conditions.

2. Customization: Unlike some competitors, Grand Slip Rings excels in offering customized slip ring solutions. Whether it’s a need for high-speed, high-voltage, or specialized data channels, Grand Slip Rings can tailor solutions to meet the unique requirements of any turbine model, including hybrid models integrating power, data, and fluid transfer.

3. Cost-Efficiency: Grand Slip Rings provides competitive pricing without sacrificing performance or quality. Our modular and scalable designs allow for cost-effective solutions across a range of turbine sizes, from small residential turbines to large offshore farms.

In the competitive wind turbine market, selecting the right slip ring manufacturer is crucial for ensuring the optimal performance, lifespan, and efficiency of turbine systems.  Grand Slip Rings stands out with its customized solutions, cost-efficiency, and reliability. Their comprehensive product range—featuring rotary slip rings, fiber optic rotary joints, and tailored designs—makes them a versatile and trusted partner for wind turbine operators looking to enhance performance and reduce downtime in their systems.

Selecting the right slip ring is a critical decision that directly impacts the performance, reliability, and efficiency of wind turbines. Given the demanding nature of wind turbine operations, it’s essential to choose slip rings that meet the electrical, environmental, and mechanical needs of each turbine system. Let’s recap the key factors to consider when making this important choice:

Summary of Key Factors

1. Electrical Requirements: The slip ring must support the appropriate voltage, current, and signal transmission needs of the wind turbine system. Whether you need high-current handling for pitch control or advanced data transmission for smart turbine systems, selecting a slip ring with the right current/voltage ratings and signal integrity is essential for optimal performance.

2. Environmental Resistance: Wind turbines are exposed to harsh conditions, from extreme temperatures to moisture and saltwater (in offshore settings). Slip rings need to be durable and resistant to weather, corrosion, and high temperatures. Ensuring that the slip ring has the right IP rating (IP65/IP68) and materials will protect it from the elements and reduce maintenance requirements.

3. Mechanical Durability: Wind turbine slip rings undergo continuous rotational movement and must withstand high wear over time. Low torque, high rotational stability, and fatigue resistance are critical factors in ensuring that the slip ring can operate reliably for millions of cycles, minimizing downtime and maintenance costs.

Call to Action

At Grand Slip Rings, we offer a diverse range of slip rings and rotary joints designed to meet the unique needs of wind turbine systems. Whether you need high-current, fiber optic, or customized slip rings for specific turbine models, we have solutions that provide superior reliability, performance, and cost-efficiency.

We encourage you to explore our product catalog to find the perfect slip ring for your wind turbine application. Our team of experts is ready to assist you with personalized recommendations and custom solutions to ensure your turbine system operates at its best.

Contact us today to discuss your specific needs and discover how Grand Slip Rings can help optimize the performance and longevity of your wind turbine systems!

FAQs about Wind Turbine Slip Ring Selection

Q: What does a slip ring do in a wind turbine?

A slip ring in a wind turbine serves a crucial role in the transfer of electrical power and signals between the stationary and rotating parts of the turbine. The primary function of a slip ring is to allow the transmission of electrical current from the stationary nacelle to the rotating rotor blades, which continuously change orientation to capture wind energy effectively. Wind turbines are designed with a rotor that spins, but the electrical system that powers the turbine’s components needs to remain connected to a fixed power source. The slip ring ensures this by providing a continuous connection for the transmission of electrical energy without any physical connection, thus avoiding wear and tear that would occur in traditional wiring.

Slip rings typically consist of a ring and brush system. The brushes press against the rings, and as the rotor spins, the rings rotate, maintaining the electrical connection between the rotating and stationary parts. This system helps in transmitting power to the turbine’s generator and controls while also enabling data transmission for monitoring and control purposes. Without slip rings, the complex movement of the wind turbine rotor would result in electrical disconnections, leading to system failures. Essentially, slip rings are integral to the operation of the wind turbine, providing seamless communication and power transfer across rotating and fixed parts.

Q: What is the life expectancy of a slip ring?

The life expectancy of a slip ring in a wind turbine typically ranges from 5 to 10 years, depending on several factors, such as the type of slip ring, environmental conditions, and the frequency of maintenance. Slip rings in wind turbines are subject to wear and tear due to constant rotation, friction between the brushes and rings, and exposure to harsh environmental conditions such as wind, moisture, and temperature fluctuations. The lifespan of the slip ring can also be influenced by the turbine’s operational environment, such as offshore versus onshore installations. Offshore wind turbines are exposed to saltwater and more extreme weather conditions, which can cause corrosion and shorten the life expectancy of the slip ring.

Regular maintenance and inspection of the slip ring system can help prolong its life by ensuring that the brushes are properly aligned, the rings are free of debris, and there are no signs of wear. Over time, however, the slip ring components inevitably degrade, requiring periodic replacement to maintain the efficiency and performance of the wind turbine. Newer designs of slip rings often incorporate advanced materials, such as carbon and graphite, that can resist wear and reduce maintenance requirements, further extending the lifespan of the system. Proper maintenance and timely replacements are essential to ensuring optimal performance and minimizing downtime in wind turbine operations.

Q: What are the guidelines for wind turbine site selection?

Selecting an optimal site for wind turbines involves considering a variety of factors to ensure efficiency, safety, and cost-effectiveness. Key guidelines for site selection include wind resource assessment, environmental impact, proximity to infrastructure, and regulatory compliance.

Wind resource assessment is one of the most crucial aspects, as wind turbines need consistent and high wind speeds to generate power efficiently. The site must experience average annual wind speeds of at least 5-6 meters per second (m/s), with the ideal wind speed range being 6-9 m/s. This data is typically gathered using anemometers placed in the potential area to monitor wind patterns over a significant period, often a year or more.

Another important consideration is environmental impact. Wind turbines can affect local wildlife, particularly bird and bat populations, and disrupt ecosystems. Site selection involves conducting environmental impact assessments to minimize adverse effects on the surrounding area. Additionally, turbines should not be placed in protected or sensitive habitats.

The proximity to power transmission infrastructure is also essential, as wind power needs to be transmitted to the grid efficiently. Sites near existing power lines and substations are preferable to minimize costs related to the construction of new transmission infrastructure. Moreover, the site must comply with local zoning regulations and obtain necessary permits, ensuring that the wind farm development meets legal requirements.

Lastly, accessibility and safety are factors that cannot be overlooked. The site should have suitable road access for the transportation and installation of turbine components. The proximity of the site to maintenance and repair facilities is also critical to ensuring long-term operational efficiency.

Q: Why are slip rings so expensive?

Slip rings are expensive due to a combination of factors related to their complex design, the materials used, their specialized functionality, and the manufacturing processes involved. One of the main reasons for their high cost is the precision engineering required to create slip rings that can withstand the extreme conditions present in wind turbines. Wind turbines are exposed to harsh environmental factors such as high winds, moisture, temperature extremes, and saltwater (in offshore turbines), which demand slip rings to be made from durable, high-quality materials. Materials like graphite, precious metals (gold or silver), and high-performance composites add to the cost of the slip ring.

The manufacturing process of slip rings is also labor-intensive and requires advanced technology. Precision must be maintained to ensure the electrical conductivity of the slip ring while minimizing wear and tear. Components must be custom-made to fit the specific design of the turbine, which can increase production costs. Additionally, slip rings must be able to transmit power efficiently while minimizing friction, so they are engineered to meet very specific performance standards.

Another factor driving the cost is the research and development (R&D) invested in creating long-lasting and reliable slip rings. Manufacturers invest significantly in improving their designs, materials, and durability to increase the lifespan of the slip ring and reduce the need for maintenance. As a result, slip rings are engineered to function reliably in environments where the turbine will operate for many years with minimal downtime.

Lastly, the small volume of specialized slip rings produced for wind turbines adds to the cost. Unlike mass-produced electrical components, slip rings for turbines are highly specialized, and the low production volume leads to higher per-unit costs. These factors collectively make slip rings a costly component of wind turbines, but they are essential for the effective functioning and longevity of the turbine.
