Electric motors are integral to countless applications, from residential appliances to heavy industrial machinery. Within the broad spectrum of electric motor technologies, the 3 Phase Slip Ring Motor holds a unique position due to its distinct design and functionality. Named for its configuration and working principle, this type of electric motor ushers a blend of efficiency, sophistication, and versatility, making it suitable for an array of industrial applications.

A three phase slip ring motor is an induction motor that operates using a three-phase power supply. The motor is typified by its main feature – the slip rings – which distinguish it from other types of induction motors (like the commonly used squirrel cage motor). The slip rings provide an external resistance to the rotor circuit, allowing control over motor speed and torque, which makes these motors particularly useful for applications demanding high starting torque and adjustable speed.

It’s essential to understand that the world of 3 Phase Slip Ring Motors is expansive and multifaceted. While our description thus far offers a brief overview, there are numerous sophisticated details to examine, including the motor’s historical evolution, internal design specifics, working principles, various available models, and wide-ranging applications. To fully appreciate the marvel of engineering that is the 3 Phase Slip Ring Motor, a comprehensive perspective is needed, and that is precisely what we aim to accomplish with this enlightening journey into its dynamic realm.

History & Development of 3 Phase Slip Ring Motor

The origins of 3 Phase Slip Ring Motors can be traced back to the invention of the induction motor itself. In 1887, the brilliant mind of Nikola Tesla conceived the idea of an induction motor, marking a pivotal moment in the history of electrical engineering. Tesla’s invention harnessed the power of alternating current (AC) and introduced the concept of a rotating magnetic field, which became the foundation for various types of electric motors that followed, including the 3 Phase Slip Ring Motor.

As this kind of motor gained recognition for its potential applications, researchers and engineers continued to refine its design and improve upon its performance traits. They explored ways to address the challenges faced by induction motors, such as high starting torque requirements and speed variability.

One of the most significant milestones in the evolution of 3 Phase Slip Ring Motors was the introduction of slip rings. The use of slip rings not only enabled more control over rotor current but also allowed for the modification of motor speed and torque, increasing the motor’s adaptability in diverse applications.

Over the years, advancements in materials science have contributed significantly to the development of slip ring motors. Innovations in insulation materials, bearings, and housing designs have resulted in motors with enhanced durability, reduced energy losses, and improved thermal management, contributing to the overall efficiency and performance of these motors.

The development of power electronic devices, microprocessors, and digital control technologies have further pushed the boundaries, making it possible to create advanced adjustable speed drive systems that can actively manage motor speeds in real time, optimizing energy consumption and maximizing performance as per varying load demands.

Thanks to these pivotal improvements and technology advancements, modern 3 Phase Slip Ring Motors have become versatile machines capable of tackling a wide range of applications, boasting superior performance metrics, and conforming to stringent energy efficiency standards. By understanding their evolution, we gain an appreciation for the culmination of research, engineering, and innovation that has shaped 3 Phase Slip Ring Motors into the sophisticated machines they are today.

3 phase slip ring motors

Working Principle of 3 Phase Slip Ring Motor

To appreciate the intricacies of a 3 Phase Slip Ring Motor, it’s crucial to understand its working principle. The motor’s efficient functionality relies heavily on its slip rings, a stable magnetic field, and the interplay of a three-phase power supply.

The heart of a 3 Phase Slip Ring Motor lies in its slip rings – an innovative solution to provide continuous electrical connection between stationary and rotating parts of the motor without hindering the latter’s rotation. Slip rings are electrically conductive rings that revolve with the rotor shaft. Carbon or copper-graphite brushes, stationary in position, maintain physical contact with these revolving rings, ensuring a smooth and continual electrical connection. This continual interaction facilitates the transmission of power into the rotor, controls the rotor’s resistance, and offers an effective method to regulate the motor’s speed and starting torque.

The working of this motor involves a transformation of energy that flows from the stator to the rotor. The stator, or the stationary part of the motor, is wound by three groups of coils placed 120 degrees apart, forming a three-phase winding. When a three-phase current passes through the stator winding, it generates a rotating magnetic field. This magnetic field induces a voltage in the rotor coils, invoking the principle of electromagnetic induction, and currents begin to flow in the rotor windings. The interaction between this rotor current and the rotating magnetic field generates a torque that causes the rotor to spin, translating electrical energy into mechanical energy.

The use of three-phase currents lies at the core of the motor’s functioning. A three-phase supply provides a constant power transfer into the motor, maintaining a steady torque output. Equally spaced in time, the three phases produce a rotating magnetic field in the stator that maintains a constant speed. The power transferred to the load remains uninterrupted, even during changes in the motor’s electrical conditions, ensuring efficient and reliable operation.

The working principle of the 3 Phase Slip Ring Motor hints at the elegance and precision underlying these powerful machines. By manipulating magnetic fields, electric currents, and rotational motion, they convert electrical energy into useful mechanical form, driving numerous applications ranging from simple fans to complex industrial machinery.

Key Components and Design of 3 Phase Slip Ring Motor

A 3 Phase Slip Ring Motor comprises multiple components, each playing a vital role in its efficient functionality. By understanding these components and their interactions, we can delve deeper into understanding the engineering principles and design considerations of these motors. This section will provide an overview of the crucial internal parts, like the rotor, stator, and slip rings, and explore the design factors taken into account to ensure optimal performance.

Key Components

  1. Stator: The motor’s outer, stationary part is called the stator. It houses the three-phase windings, which are spread evenly across its circumference, often in slots that contain copper or aluminum wire wound into coils. The stator is responsible for producing the rotating magnetic field that drives the motor when energized by a three-phase voltage supply.
  2. Rotor: Positioned within the stator is the rotor, which comprises conductive bars embedded in an iron core. Attached to the motor’s shaft, the rotor rotates freely when torque is generated due to the interaction between the rotor currents and the magnetic field.

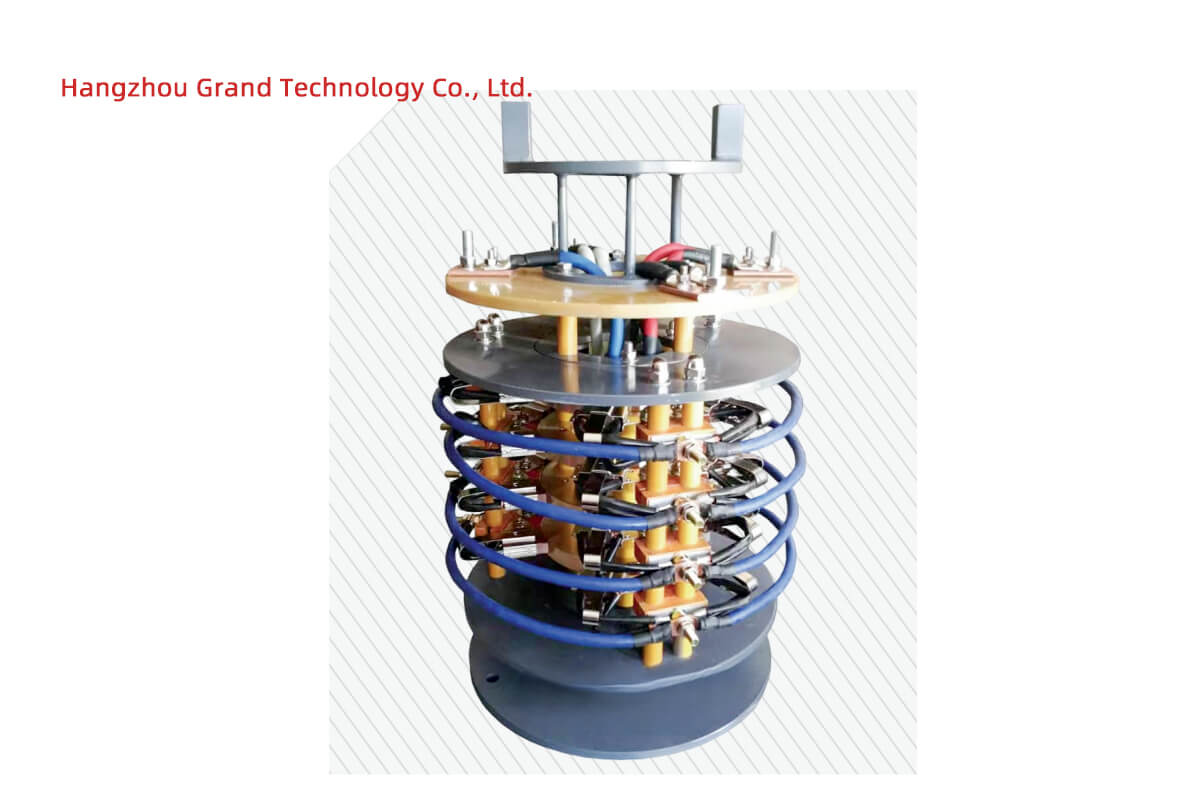

  3. Slip Rings: The slip rings are mounted on the rotor shaft and act as the primary interface for transmitting electrical power between the rotating rotor and the stationary components, such as external resistors. Made of conductive materials like copper or brass, they revolve with the rotor while maintaining electrical contact through stationary brushes, facilitating power transmission and dynamic control of the rotor’s resistance and torque.

Design Considerations and Motor Layout

3 Phase Slip Ring Motors are designed with various factors in mind, such as heat dissipation, torque requirements, desired operating speed, and efficiency. The motor layout often consists of a rugged cast iron or steel frame equipped with cooling fans or fins, ensuring effective heat management and prolonging the motor’s service life.

When configuring the rotor windings, engineers optimize the balance between torque and efficiency by carefully selecting the resistance and number of windings. This fine-tuning process allows the motor to meet the specific demands of the application, whether it calls for high torque during startup or seeks to maintain precise speed under variable loads.

Furthermore, the stator winding design considers factors like space constraints, insulation materials, and wire types to maximize efficiency and minimize energy losses. The selection of slip ring and brush materials aims to minimize friction, wear, and electrical noise, ensuring smooth operation and longevity.

In summary, the design of a 3 Phase Slip Ring Motor is the culmination of careful engineering considerations and optimizations that aim to balance performance, efficiency, and durability. By examining its key components and design factors, we gain a more profound appreciation for the thoughtful engineering that underpins the motor’s ability to meet the diverse needs of various applications.

3 phase slip ring motor

Variants of 3 Phase Slip Ring Motor

As with most appliances adjusted and refined to align with increasing industry demands, a range of 3 Phase Slip Ring Motor variants have been developed over the years. Each version offers unique attributes and performance characteristics, thus expanding the versatility of this already dynamic motor type. Here, we’ll explore some of the notable faces in this broad family, discussing in detail their unique traits and performance features.

Wound Rotor Induction Motor (WRIM)

One of the most common variations is the Wound Rotor Induction Motor, often used in applications that require high starting torque, soft start, and adjustable speed capabilities. The defining feature of WRIM lies in its rotor, which houses a three-phase winding identical to the stator winding. The rotor winding terminals are connected to the slip rings, which, through brush contacts, are connected to the external resistance. By varying this resistance, operators can control the motor’s speed, making WRIM a preferred choice for heavy-load applications with significant startup inertia.

Dual-Speed Slip Ring Motor

The Dual-Speed Slip Ring Motor is aptly named for its ability to operate at two discrete speeds without sacrificing torque. This capability is usually achieved by manipulating the pole number of the stator winding, and it influences the supply frequency. This variant offers a more comprehensive range of speed control without compromising power, making it ideal for applications, such as pumps, fans, and compressors, that require a dynamic range of operational speeds.

Liquid-Rheostat Slip Ring Motor

The Liquid Rheostat Slip Ring Motor uses a liquid rheostat (or resistance starter) to provide optimal resistance to the rotor circuits during startup and over the run. The liquid rheostat contains a conductive electrolyte which allows the resistance to be adjusted by changing the electrolyte level. This motor is characterized by high starting torque, increased protection against electrical faults, and finer control over motor speed, making it a practical choice for something like ball mills in industries.

In a market flooded with numerous motors tailored for specific application needs, the variance in 3 Phase Slip Ring Motors provides potential users with choices based on their unique requirements. By understanding the characteristics and performance features of each variant, decision-making becomes more accessible, and users can select the optimal motor type that effectively caters to their demands.

Applications of a 3 Phase Slip Ring Motor

3 Phase Slip Ring Motors are versatile machines that find numerous applications across commercial, industrial, and specialized sectors. Driven by their high starting torque, smooth startup, and adjustable speed characteristics, these motors power a wide array of machinery ranging from simple to highly sophisticated types. In this section, we delve into the diverse range of 3 Phase Slip Ring Motor applications, illustrating how and why this powerful motor excels in each uniquely challenging scenario.

Commercial Applications

In commercial settings, 3 Phase Slip Ring Motors play a crucial role in powering diverse equipment, including HVAC systems, pumps, and elevators. Take, for example, a commercial HVAC system. These systems require significant power and precise control to maintain comfortable indoor climates in large-scale establishments. A 3 Phase Slip Ring Motor steps up to this challenge, offering robust performance, high energy efficiency, and the ability to adjust speed according to the system’s load demands, which vary based on the time of the day or season.

Industrial Applications

Industrial settings present some of the most rigorous applications for 3 Phase Slip Ring Motors. These motors find extensive use in machinery like compressors, crushers, conveyor systems, and several types of mills in industries ranging from manufacturing and processing to mining. For instance, ball mills used in cement production, which crush raw materials into fine powders for the manufacture of cement, require high starting torque and dynamic speed control. Here, the use of a 3 Phase Slip Ring Motor with an external resistance controller like a liquid rheostat ensures efficient startup and the ability to handle load variations, thus optimizing the milling process.

Specialized Applications

3 Phase Slip Ring Motors are also employed in highly specialized applications like wind turbines and electric trains. In wind turbines, these motors often serve as doubly-fed induction generators. The versatility of the 3 Phase Slip Ring Motor allows it to operate under varying wind speeds by adjusting the rotor’s resistance, making it a suitable and efficient choice for such inherently erratic working conditions. Similarly, for electric trains, these motors offer high starting torque and controllable acceleration, making them ideal for these heavy-load transports.

In conclusion, the flexible and robust design of the 3 Phase Slip Ring Motor allows it to cater to a vast assortment of applications, each with unique requirements and operating conditions. By examining their real-life usage, we gain a better understanding of the versatility and superiority that these dynamic machines offer in meeting the challenges across diverse sectors.

Installation and Maintenance of 3 Phase Slip Ring Motor

Installing and maintaining a 3 Phase Slip Ring Motor is an integral part of achieving the long lifespan and optimal performance it has the capability to deliver. This section will provide insights into proper installation methods, precautions to be taken during installation, and tips for upkeep, including troubleshooting common issues. These recommendations will guide users and technicians to effectively manage these motors and ensure their seamless operation.

Installation Instructions and Precautions

  1. Positioning: The installation site should be vibration-free and allow for heat dissipation. Adequate space around the motor will facilitate necessary ventilation and easy access for routine maintenance.
  2. Mounting: Ensure the motor is securely fastened to its mounting platform with bolts or screws, and visually confirm that it is positioned level to prevent uneven wear.
  3. Electrical Connection: Follow the wiring diagrams provided by the manufacturer to connect the motor correctly. Ensure all connections are tight to avoid sparking or overheating that can potentially damage the motor.
  4. Grounding: The motor must be properly grounded in accordance with local electrical codes and regulations. This precaution safeguards from potential external faults.
  5. Test Run: Before deploying the motor into full operation, conduct a no-load test run. This preliminary check will help identify if the motor is running smoothly and efficiently, sounding any early alarms if there’s an issue.

Maintenance Tips, Common Issues, and Troubleshooting

Proactive maintenance is key to prolonging a 3 Phase Slip Ring Motor’s service life and includes activities such as:

  1. Inspection and Cleaning: Regular inspections should be conducted for signs of wear, damage, or dirt accumulation. Cleaning should be done periodically, focusing on ventilation openings and fins to prevent overheating issues.
  2. Lubrication: Lubricate the motor’s bearings according to the manufacturer’s recommendations to prevent unnecessary friction and wear.
  3. Brush and Slip Ring Inspection: Monitor the wear and tear on the brushes and slip rings. These components need regular cleaning and eventual replacement.

Common issues that may arise include overheating, unusual noises, and vibration, which can be due to improper ventilation, installation issues, or electrical problems. Troubleshooting should aim to identify the root cause, whether it involves checking connection integrity, ensuring proper grounding, or confirming the right operational load.

A combination of diligent installation and active maintenance practices is fundamental to maximizing the motor’s performance and longevity. Gaining insight into these key areas helps users effectively maintain their 3 Phase Slip Ring Motors, enabling them to function efficiently across varied applications.

3 Phase Slip Ring Motor Performance Analysis

When assessing the performance of a 3 Phase Slip Ring Motor, it is essential to consider key attributes like torque, speed, and efficiency. Conducting a comparative analysis by contrasting these aspects with other motor types, such as Squirrel Cage Induction Motors, can provide deeper insight into the strengths and limitations of each motor class. This section explores these performance factors while presenting the advantages and disadvantages of using 3 Phase Slip Ring Motors for different applications.

Key Performance Attributes

  1. Torque: 3 Phase Slip Ring Motors are known for high starting torque, mainly due to the ability to alter rotor resistance. These motors can produce up to 250-300% of their rated torque during startup, making them an excellent option for applications with a high level of inertia.
  2. Speed: Slip ring motors provide adjustable speed by controlling the rotor’s resistance and subsequently its slip. This versatility results in improved process control and efficiency in applications requiring variable operating speeds.
  3. Efficiency: In general, 3 Phase Slip Ring Motors display excellent efficiency levels. However, slip rings and brushes cause some energy losses due to friction and electrical resistance. With modern design improvements and material selection, these losses can be reduced to ensure even higher operating efficiency.

Comparative Analysis with Other Motor Types

It is instructive to compare the 3 Phase Slip Ring Motor with the Squirrel Cage Induction Motor, one of the most commonly used motor types, to better understand their benefits and drawbacks.

Advantages of 3 Phase Slip Ring Motor:

  • Higher starting torque compared to the Squirrel Cage Induction Motor, making it preferable in heavy-duty startup applications.
  • Adjustable speed range, while Squirrel Cage Induction Motors have a relatively fixed speed.
  • Better control during startup, leading to smooth acceleration and reduced mechanical stress.

Disadvantages of 3 Phase Slip Ring Motor:

  • Due to the brush and slip ring system, a 3 Phase Slip Ring Motor may require more maintenance compared to the Squirrel Cage Induction Motor, which is virtually maintenance-free under normal conditions.
  • The slip ring and brush mechanism can cause electrical and mechanical losses that can lead to lower overall efficiency in comparison to the Squirrel Cage Induction Motor.

In summary, the performance characteristics of a 3 Phase Slip Ring Motor make it a versatile and powerful option for various application needs. Comparing its attributes with other motor types like the Squirrel Cage Induction Motor highlights unique benefits but also sheds light on a few limitations. By recognizing these fundamental factors, users can make well-informed decisions when choosing a motor type that best suits their specific requirements.

3 Phase Slip Ring Motor Environmental Impact and Energy Efficiency

The environmental impact and energy efficiency of operating machinery, including 3 Phase Slip Ring Motors, have taken center stage in the wake of increasing concerns about climate change and sustainability. This section provides an assessment of the energy efficiency ratings of the 3 Phase Slip Ring Motor and an overview of its environmental implications, underlining the importance of understanding and optimizing these aspects.

Assessment of Energy Efficiency Ratings

The energy efficiency of a 3 Phase Slip Ring Motor is primarily dictated by design, materials, and manufacturing techniques, resulting in motors with efficiency ratings spanning from IE1 (Standard Efficiency) to IE4 (Super Premium Efficiency). Higher efficiency motors tend to cost more initially but often pay back in energy savings, especially under heavy or continuous usage.

When selecting a motor, it is crucial to consider the load and how the motor’s efficiency varies around that. For instance, a motor that operates with maximum efficiency at 75% load will consume significantly less energy when run at this load compared to its full load. This, in the long run, can offset higher upfront costs.

Higher efficiency can also mean more reliable performance and less heat generation, leading to reduced cooling requirements, less downtime, and longer lifespan — all contributing to lower Total Cost of Ownership (TCO).

Impact on the Environment and Sustainability Considerations

While electric motors, including 3 Phase Slip Ring Motors, are incredibly efficient machines with up to 95% of the input electrical energy converted into mechanical energy, the remaining energy is lost primarily as heat. Globally, electric motors account for approximately two-thirds of industrial electricity consumption. Thus, small improvements in motor efficiencies may lead to substantial energy savings and reduced greenhouse gas emissions.

By investing in higher efficiency 3 Phase Slip Ring Motors, organizations contribute to decreasing energy consumption and emissions, implying a smaller carbon footprint, which is becoming ever more significant in today’s climate-conscious world. The adoption of energy-efficient motors aligns with various governmental regulations and incentives aimed at promoting energy efficiency and combating climate change.

Maintenance and eventual disposal of a 3 Phase Slip Ring Motor have environmental implications as well. Proper maintenance can extend the life of a motor, reducing the need for manufacturing new units and consuming resources. When motors reach their end of life, responsible disposal and recycling should be considered, preventing potentially harmful materials from causing environmental damage.

In conclusion, a careful understanding and evaluation of energy efficiency and environmental impacts from operating 3 Phase Slip Ring Motors are crucial for organizations committed to sustainable practices. These considerations align with environmental stewardship and can result in substantial economic benefits in the long run due to lower energy consumption.

3 Phase Slip Ring Motor Regulation Standards and Safety Considerations

Adherence to regulation standards and safety considerations is essential when dealing with 3 Phase Slip Ring Motors to ensure optimal performance and user safety. This section addresses critical regulatory standards applicable to these motors and explores important safety considerations during operation, maintenance, and in the event of failure.

Regulatory Standards for 3 Phase Slip Ring Motors

Regulatory standards aim to set guidelines for the design, manufacturing, and performance of motors, promoting safety, efficiency, and environmental sustainability. Some vital regulatory standards relevant to 3 Phase Slip Ring Motors include:

  1. IEC standards: The International Electrotechnical Commission (IEC) sets global standards for electric and electronic products, including electric motors. IEC 60034 is a series of 30+ standards that cover aspects such as performance, energy efficiency, mechanical construction, and cooling methods of electric motors.
  2. Energy Efficiency: The International Efficiency (IE) classification system is derived from the IEC 60034-30 standard. It ranks induction motors based on efficiency classes, starting from IE1 (Standard Efficiency) to IE4 (Super Premium Efficiency). Many countries have adopted these standards and established regulations requiring minimum efficiency levels of electric motors sold in their territories.
  3. UL and CSA: Underwriters Laboratories (UL) in the United States and the Canadian Standards Association (CSA) in Canada are common certification bodies that test and certify products to ensure they comply with safety standards and regulations for electric motor usage in their respective regions. They evaluate factors such as insulation, electrical components, and other safety variables related to motor performance.

Safety Considerations During Operation, Maintenance, and Failure

To ensure that 3 Phase Slip Ring Motors can function safely, it is critical to follow safety precautions during operation, maintenance, and in case of failure.

Operation:

  1. Ensure proper installation, including secure mounting, electrical connections, and grounding, to prevent malfunctions and potential hazards.
  2. Use appropriate motor protection devices like circuit breakers and overload relays to prevent overload conditions and protect the motor from damage.
  3. Ensure that correct motor insulation is employed to withstand the application’s environmental conditions, such as temperature, humidity, and potential exposure to chemicals.

Maintenance:

  1. Power off the motor before performing any maintenance work, and use lockout/tagout procedures to prevent unintended starting.
  2. When working on high-voltage motors, always wear proper personal protective equipment like insulated gloves and safety glasses.
  3. Regularly inspect the motor and its components, such as slip rings, brushes, and bearings, for wear and tear. Replace or repair them as needed to prevent accidental failures during operation.

Failure:

  1. If a motor fails, secure the area to protect personnel and equipment from potential hazards.
  2. Do not attempt to restart the motor until a thorough assessment of the failure has been conducted, and necessary repairs or replacements are completed.
  3. Should a failure involve environmental risks, such as coolant leaks, implement proper containment and cleanup procedures to minimize the impact.

In summary, adhering to relevant regulatory standards and safety considerations for 3 Phase Slip Ring Motors is crucial for reliable performance while safeguarding personnel and equipment. By complying with these guidelines and maintaining a proactive approach toward safety, the risk of accidents and equipment damage is significantly reduced.

3 Phase Slip Ring Motor Future Trends and Market Projections

The utilization of 3 Phase Slip Ring Motors and their future development is closely linked with technological advancements, innovations, and market trends. This section discusses the prospects for these motors, keeping in mind the changing dynamics of industries and emerging innovations in the field of motor engineering.

Technological Advancements and Innovations

Advancements in technology and innovations continue to shape the design and functioning of 3 Phase Slip Ring Motors. Here are some key trends:

  1. Smart Motors and IoT

The integration of smart technologies and the Internet of Things (IoT) into motor operations can lead to enhanced efficiency, better diagnostics, and improved longevity. IoT allows for real-time monitoring and control of motor operations, leading to optimized energy usage and predictive maintenance, which in turn extends motor life and reduces operational costs.

  1. Advanced Materials

The use of advanced materials and manufacturing techniques can elevate overall performance efficiency and durability. For example, using advanced composites or ceramics in brush and slip ring assembly can reduce electrical and mechanical losses, thereby improving motor efficiency.

  1. Energy Efficiency

Given the push towards green technology and environment-friendly practices, further innovations aim at creating motors with even higher efficiency standards. Continued advancements in design and control strategies are likely to result in motors with superior energy efficiency.

Market Trends and Growth Projections

The market dynamics for 3 Phase Slip Ring Motors reflect an industry impacted by various factors such as automation needs, energy-efficient solutions, and regulatory pressure. A few important trends and projections include:

  1. Automation and Industrial Expansion

As various sectors continue to automate their operations for better productivity and efficiency, the demand for electric motors, including 3 Phase Slip Ring Motors, is projected to increase. Industrial sectors like oil & gas, mining, and manufacturing are among the key consumers of these motors.

  1. Energy-Efficient Motors

Increasing concern for environmental sustainability coupled with government regulations worldwide is expected to boost the demand for energy-efficient motors. High- and premium-efficiency motors are witnessing a surge in demand, and this trend is likely to continue.

  1. Renewed Focus on Maintenance

The industry is seeing a growing focus on preventative and predictive maintenance, due to the cost savings they provide over reactive maintenance. Driven by IoT and digitization, this trend could lead to a growth in services related to the maintenance of 3 Phase Slip Ring Motors.

In conclusion, the future of the 3 Phase Slip Ring Motor industry looks promising, with various technological advancements and market trends steering it towards further growth and innovations. With a focus on energy efficiency, smart technology, and maintenance-related services, the industry can expect to see significant expansion and evolution in the coming years.

Conclusion

This comprehensive guide to 3 Phase Slip Ring Motors has explored various aspects of their design, functionality, and applications. As these versatile motors continue to propel diverse fields forward, their importance is only set to grow, making them an essential component of modern industrial and commercial solutions.
